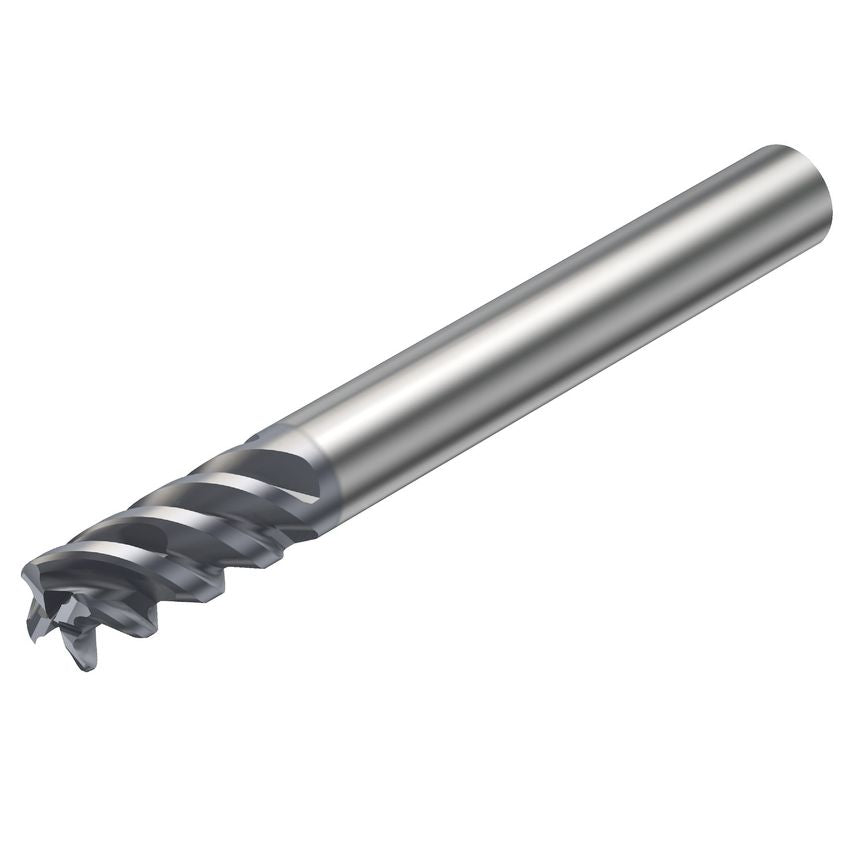

Product Range: CoroMill PluraTool Type: Thread millingSmall diameter shoulder milling with close tolerancesCoroMill Plura is a range of high quality solid carbide end mills that offer productive, efficient, and perfectly reliable milling solutions. Featuring tools for heavy roughing, finishing, and thread milling, CoroMill Plura works in various applications and materials, including difficult-to-cut materials and very hard steels up to 63 HRc.
| Cutting Diameter | 4.76mm |
| Center Cutting Capability | Yes |
| Coolant Entry Style | Without Coolant |
| Shank Type | Cylindrical |
| Standards Met | COROMANT |
| Maximum Ramping Angle | 5\u00b0 |
| MFR Part No. | 5740191 |
| Material | Solid Carbide |
| Product Type | Solid Carbide Endmill |
| Functional Length | 76.2mm |
| CoroPak | 3.1 |
| Unit Measured | Imperial |
| Usable Length | 9.525mm |
| Basic Standard Group | Coromant |
| Coating Type | TiAlN |
| Maximum Depth of Cut | 9.53mm |
| Maximum Cutting Depth | 9.53mm |
| Grade | 1620 |
| Rotational Speed Maximum | 80000 1/min |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Coating Process Type | PVD |
| Connection Diameter | 10mm |
| Through Hole Function Property | Yes |
| Corner Radius | 0.794mm |
