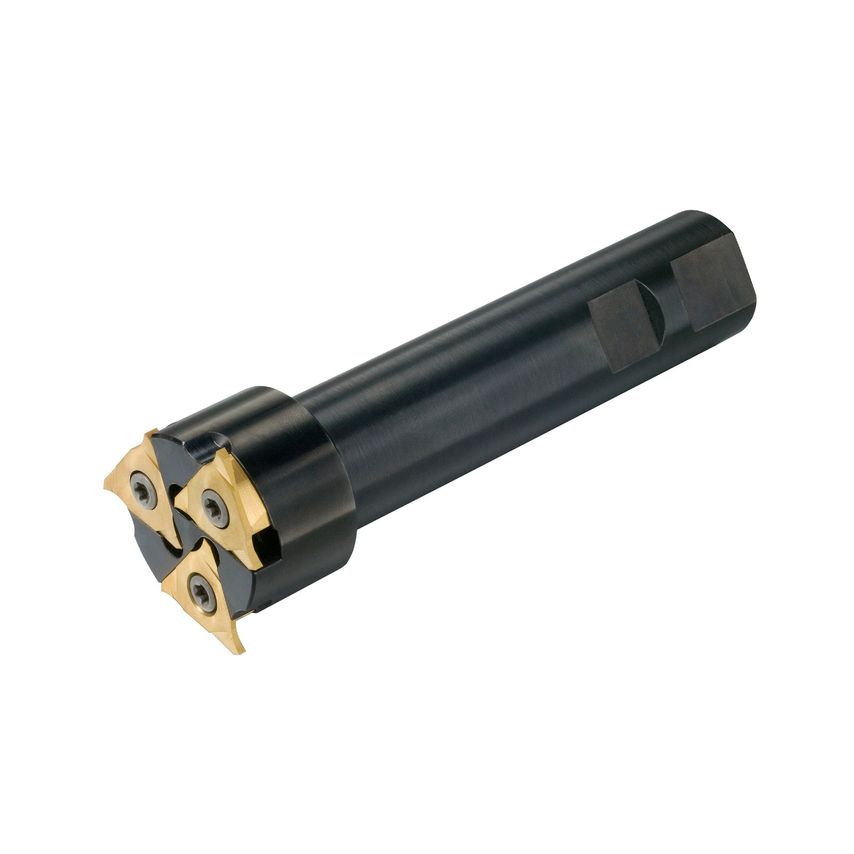

Product Range: CoroMill 328Tool Type: Thread millingA versatile cutter which can be used for many types of grooves, threads and chamfers; machining of eccentric components e.g. gearbox casings, and high volume assemblies, mainly on machining centres and rotating units on lathes.Features & Benefits- Economical and stable internal and external threading- Large program of inserts covering circlips, slots, threads, etc.- Different thread pitches possible with one toolApplication- Thread milling- Grooving- Circlip grooving for holes over diameter 39 mm (1.535 inch)
| Coolant Entry Style | Without Coolant |
| Standards Met | ISO3338-2 |
| Rotational Speed Maximum | 19300 1/min |
| Maximum Cutting Depth | 3mm |
| Cutting Diameter | 34mm |
| Connection Diameter | 38.1mm |
| Hand Preference | Right |
| Unit Measured | Imperial |
| Functional Length | 66mm |
| Weight | 427.9g |
| MFR Part No. | 5722489 |
| Cutting Width | 1.3mm |
| Body Diameter | 1.26in |
| Through Hole Function Property | Yes |
| CoroPak | 49 |
