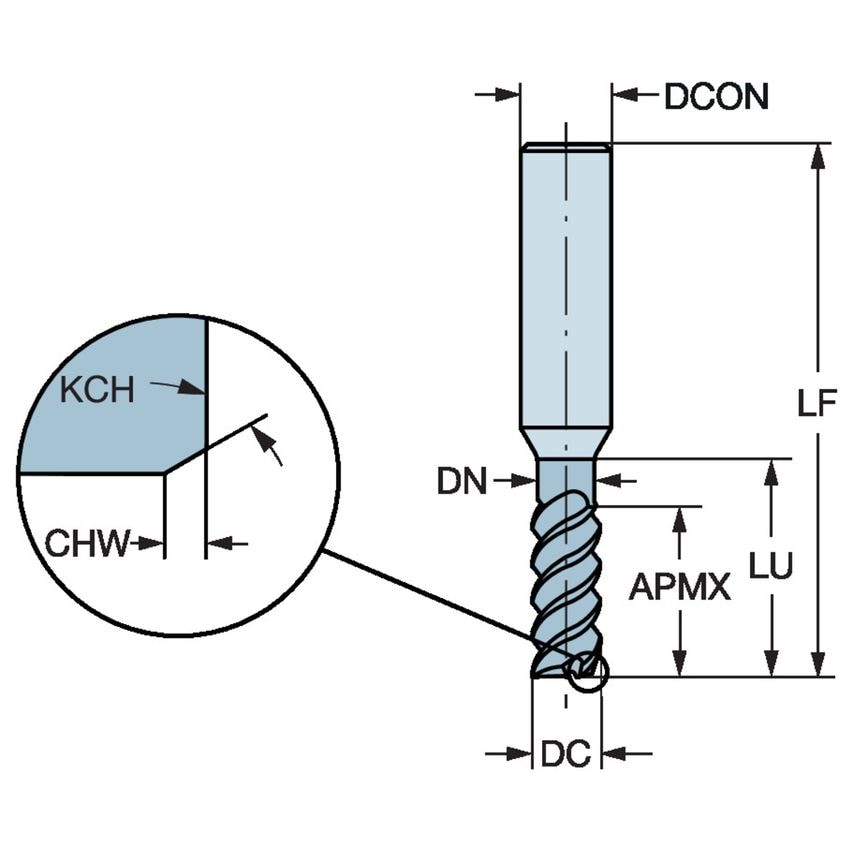

Product Range: CoroMill PluraTool Type: Thread millingSmall diameter shoulder milling with close tolerancesCoroMill Plura is a range of high quality solid carbide end mills that offer productive, efficient, and perfectly reliable milling solutions. Featuring tools for heavy roughing, finishing, and thread milling, CoroMill Plura works in various applications and materials, including difficult-to-cut materials and very hard steels up to 63 HRc.
| Usable Length | 11.025mm |
| Basic Standard Group | Coromant |
| Unit Measured | Imperial |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Center Cutting Capability | Yes |
| Grade | 1640 |
| MFR Part No. | 5890129 |
| Coating Type | TiAlN |
| Maximum Ramping Angle | 8\u00b0 |
| Cutting Diameter | 3.175mm |
| Maximum Depth of Cut | 7.35mm |
| CoroPak | 10.2 |
| Coating Process Type | PVD |
| Maximum Cutting Depth | 7.35mm |
| Rotational Speed Maximum | 80000 1/min |
| Coolant Entry Style | Without Coolant |
| Through Hole Function Property | Yes |
| Connection Diameter | 6.35mm |
| Functional Length | 63.5mm |
