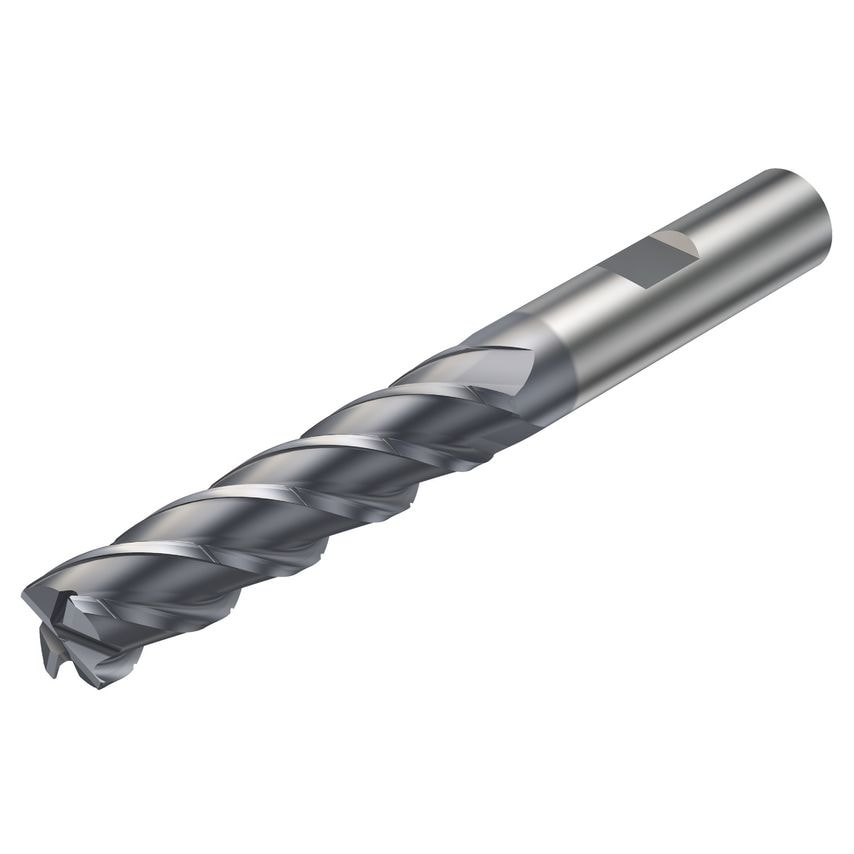

Product Range: CoroMill PluraTool Type: Thread millingSmall diameter shoulder milling with close tolerancesCoroMill Plura is a range of high quality solid carbide end mills that offer productive, efficient, and perfectly reliable milling solutions. Featuring tools for heavy roughing, finishing, and thread milling, CoroMill Plura works in various applications and materials, including difficult-to-cut materials and very hard steels up to 63 HRc.
| Coolant Entry Style | Without Coolant |
| MFR Part No. | 6870032 |
| Through Hole Function Property | Yes |
| Maximum Cutting Depth | 25.4mm |
| Product Type | Solid Carbide Endmill |
| Usable Length | 25.4mm |
| Connection Diameter | 6.35mm |
| Maximum Depth of Cut | 25.4mm |
| Unit Measured | Imperial |
| Center Cutting Capability | Yes |
| Standards Met | DIN6535 |
| Shank Type | Weldon |
| Rotational Speed Maximum | 80000 1/min |
| Grade | 1740 |
| Coating Type | AlTiN |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Cutting Diameter | 6.35mm |
| CoroPak | 15.2 |
| Coating Process Type | PVD |
| Maximum Ramping Angle | 4\u00b0 |
| Functional Length | 68.263mm |
| Material | Solid Carbide |
