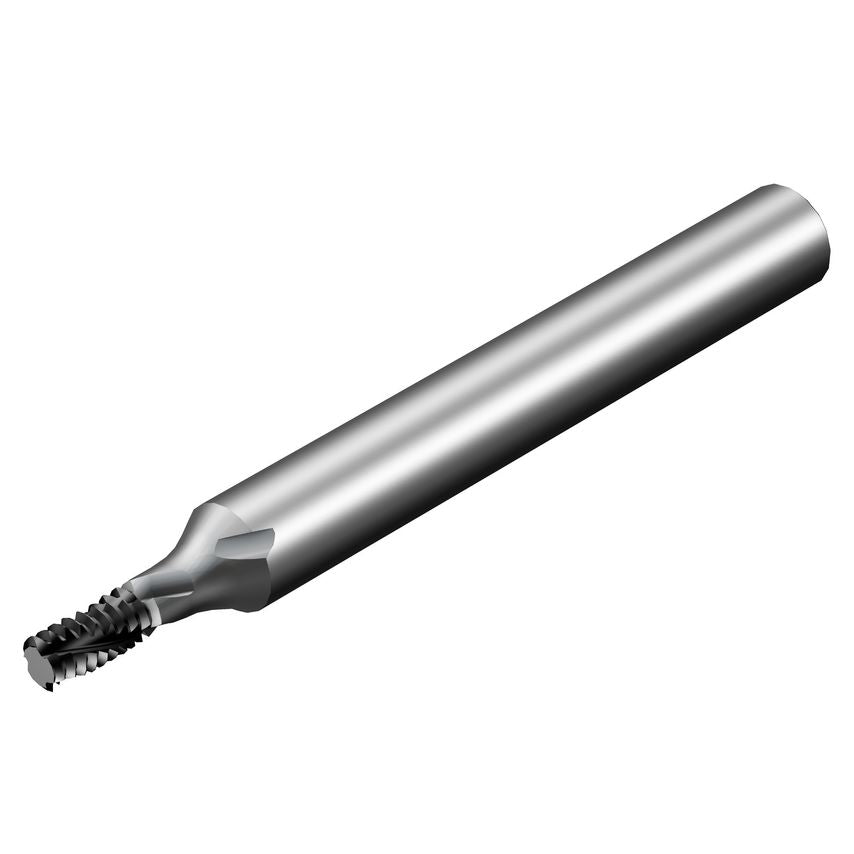

Product Range: CoroMill PluraTool Type: Thread millingSmall diameter shoulder milling with close tolerancesCoroMill Plura is a range of high quality solid carbide end mills that offer productive, efficient, and perfectly reliable milling solutions. Featuring tools for heavy roughing, finishing, and thread milling, CoroMill Plura works in various applications and materials, including difficult-to-cut materials and very hard steels up to 63 HRc.
| Functional Length | 54mm |
| Maximum Depth of Cut | 8mm |
| Thread Pitch | 0.8mm |
| Coolant Entry Style | Without Coolant |
| Standards Met | COROMANT |
| CoroPak | 17.2 |
| Rotational Speed Maximum | 80000 1/min |
| Grade | 1630 |
| MFR Part No. | 7382490 |
| Maximum Cutting Depth | 8mm |
| Usable Length | 8mm |
| Through Hole Function Property | Yes |
| Maximum Cutting Diameter | 3.9mm |
| Thread Type | Internal |
| Basic Standard Group | Coromant |
| Material | Solid Carbide |
| Shank Type | Cylindrical |
| Cutting Diameter | 3.9mm |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Thread Form Type | MJ60 |
| Connection Diameter | 14.84mm |
| Unit Measured | Metric |
| Coating Process Type | PVD |
| Coating Type | TiCN |
