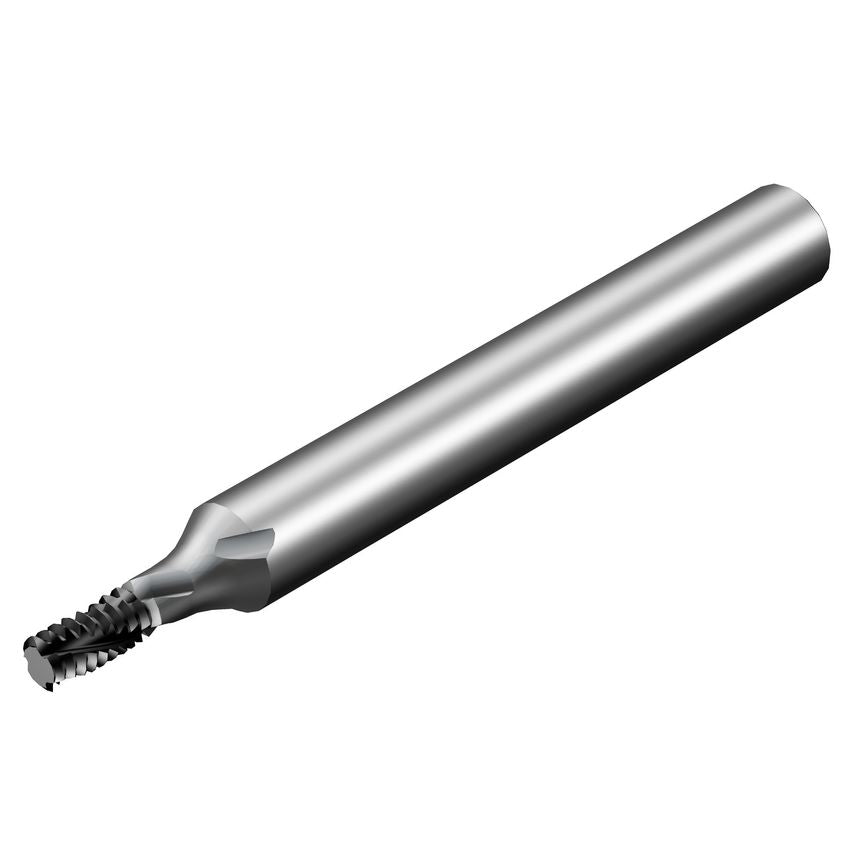

Product Range: CoroMill PluraTool Type: Thread millingSmall diameter shoulder milling with close tolerancesCoroMill Plura is a range of high quality solid carbide end mills that offer productive, efficient, and perfectly reliable milling solutions. Featuring tools for heavy roughing, finishing, and thread milling, CoroMill Plura works in various applications and materials, including difficult-to-cut materials and very hard steels up to 63 HRc.
| Thread Form Type | MJ60 |
| Functional Length | 54mm |
| CoroPak | 17.2 |
| Unit Measured | Metric |
| Material | Solid Carbide |
| MFR Part No. | 7382429 |
| Shank Type | Cylindrical |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Standards Met | COROMANT |
| Grade | 1630 |
| Usable Length | 6.3mm |
| Through Hole Function Property | Yes |
| Connection Diameter | 14.75mm |
| Maximum Depth of Cut | 6.3mm |
| Maximum Cutting Depth | 6.3mm |
| Thread Type | Internal |
| Basic Standard Group | Coromant |
| Coating Type | TiCN |
| Thread Pitch | 0.7mm |
| Rotational Speed Maximum | 80000 1/min |
| Cutting Diameter | 3mm |
| Coating Process Type | PVD |
| Coolant Entry Style | Without Coolant |
| Maximum Cutting Diameter | 3mm |
