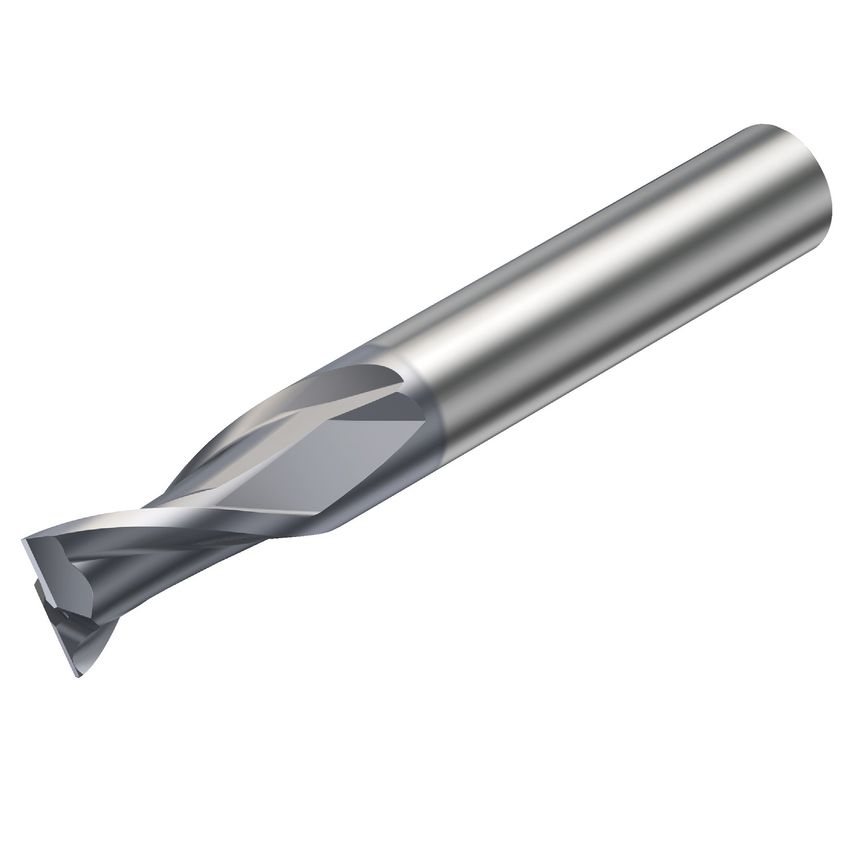

Product Range: CoroMill PluraTool Type: Thread millingSmall diameter shoulder milling with close tolerancesCoroMill Plura is a range of high quality solid carbide end mills that offer productive, efficient, and perfectly reliable milling solutions. Featuring tools for heavy roughing, finishing, and thread milling, CoroMill Plura works in various applications and materials, including difficult-to-cut materials and very hard steels up to 63 HRc.

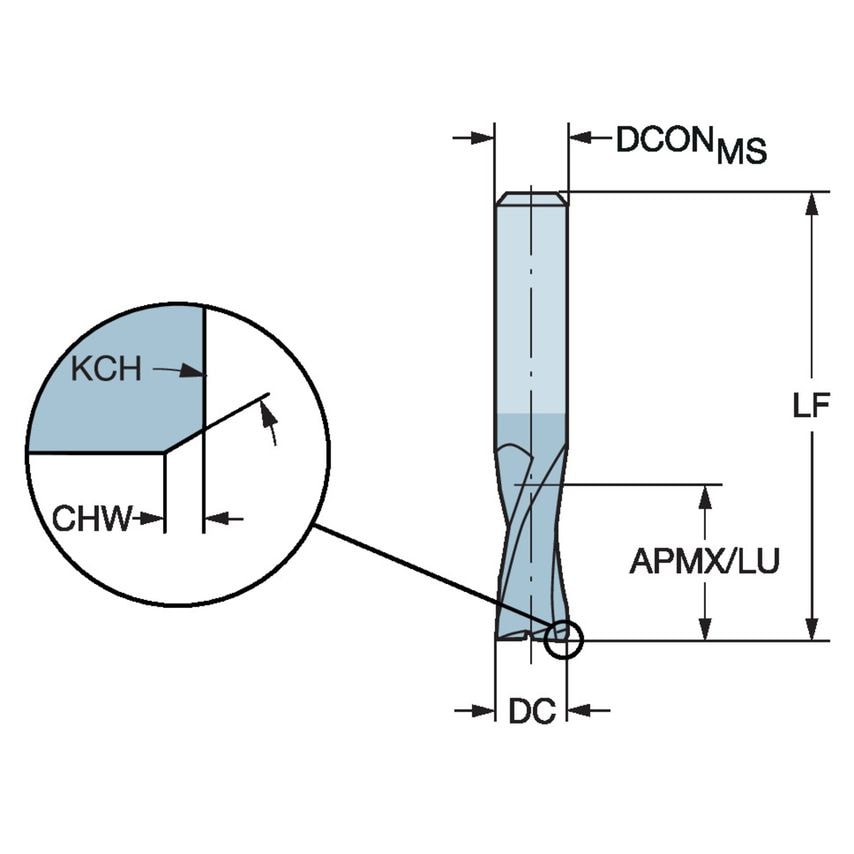

| Usable Length | 17.46mm |
| Cutting Diameter | 9.525mm |
| Through Hole Function Property | Yes |
| Functional Length | 63.5mm |
| Shank Type | Cylindrical |
| MFR Part No. | 7045489 |
| Grade | 1630 |
| Coating Process Type | PVD |
| Coolant Entry Style | Without Coolant |
| CoroPak | 16.2 |
| Maximum Ramping Angle | 9\u00b0 |
| Material | Solid Carbide |
| Center Cutting Capability | Yes |
| Unit Measured | Imperial |
| Connection Diameter | 9.525mm |
| Coating Type | AlCrN |
| Rotational Speed Maximum | 80000 1/min |
| Maximum Depth of Cut | 17.46mm |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Maximum Cutting Depth | 17.46mm |
