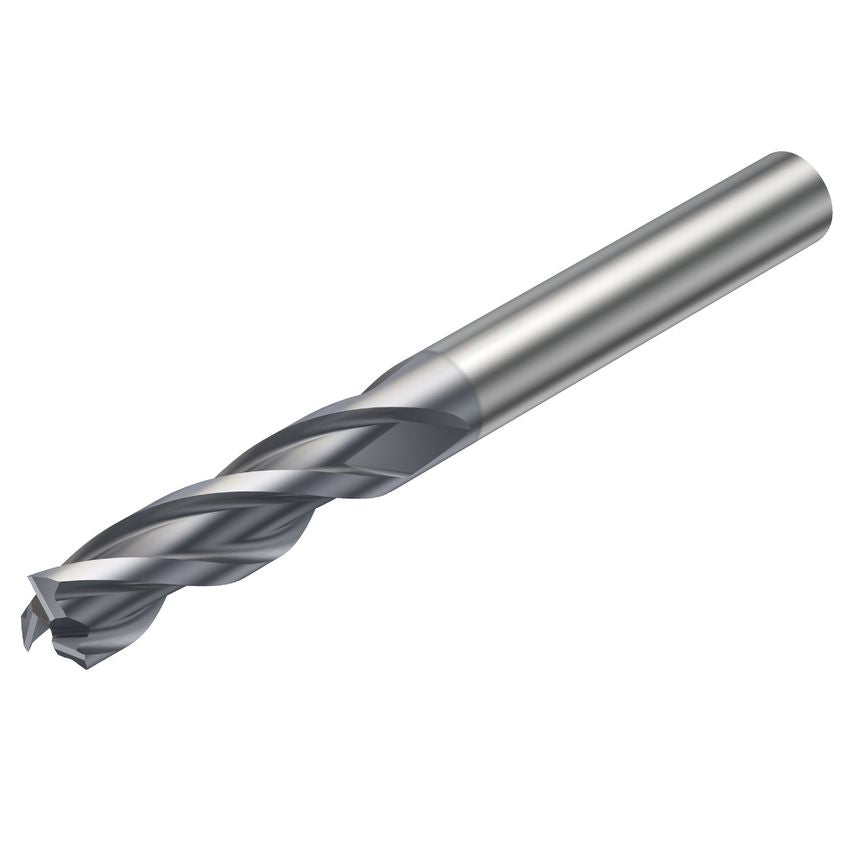

Product Range: CoroMill PluraTool Type: Thread millingSmall diameter shoulder milling with close tolerancesCoroMill Plura is a range of high quality solid carbide end mills that offer productive, efficient, and perfectly reliable milling solutions. Featuring tools for heavy roughing, finishing, and thread milling, CoroMill Plura works in various applications and materials, including difficult-to-cut materials and very hard steels up to 63 HRc.

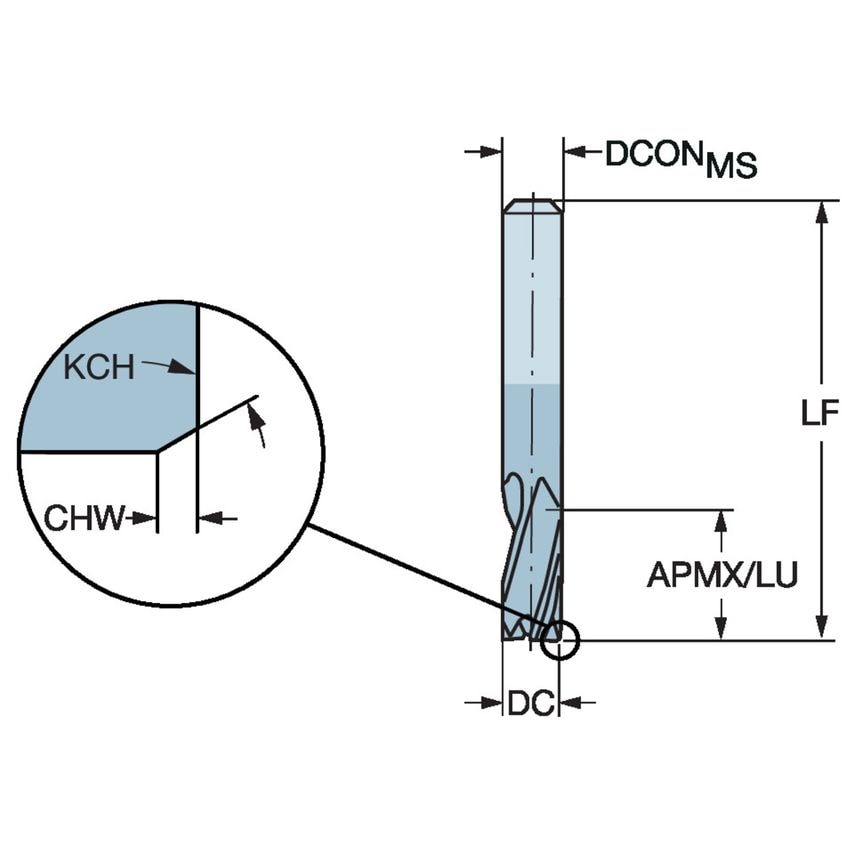

| Maximum Depth of Cut | 12.7mm |
| Shank Type | Cylindrical |
| Center Cutting Capability | Yes |
| Through Hole Function Property | Yes |
| Grade | 1620 |
| Connection Diameter | 3.175mm |
| MFR Part No. | 7045732 |
| Coating Type | TiAlN |
| Corner Radius | 0mm |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Functional Length | 50.8mm |
| Usable Length | 12.7mm |
| Coolant Entry Style | Without Coolant |
| Rotational Speed Maximum | 80000 1/min |
| CoroPak | 16.2 |
| Cutting Diameter | 3.175mm |
| Unit Measured | Imperial |
| Maximum Cutting Depth | 12.7mm |
| Material | Solid Carbide |
| Coating Process Type | PVD |
| Maximum Ramping Angle | 7\u00b0 |
