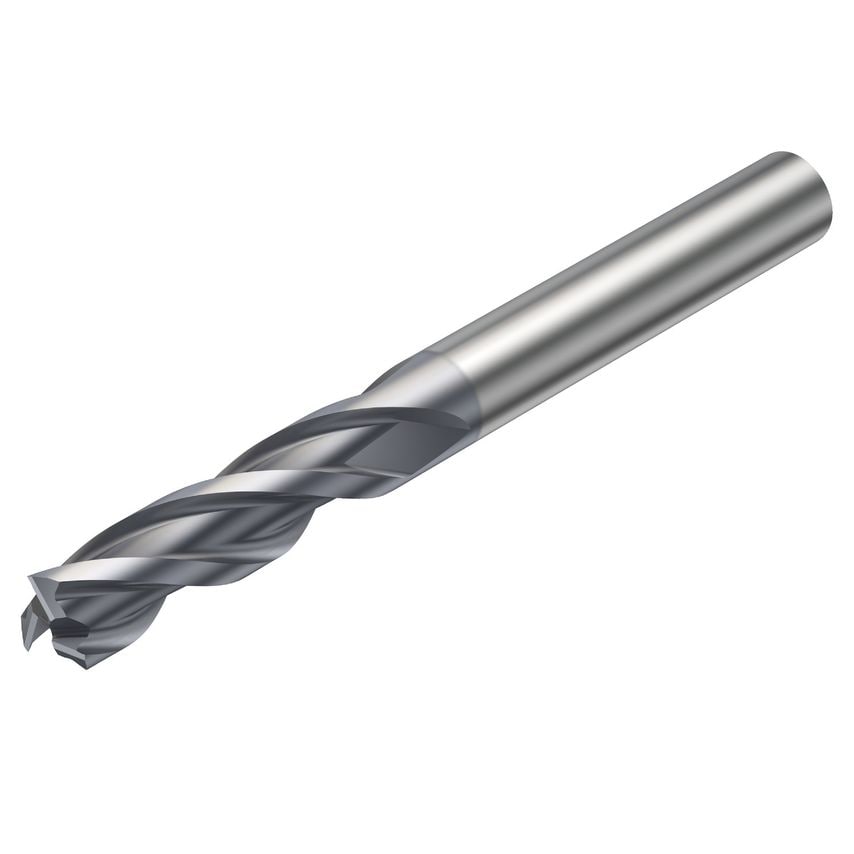

Product Range: CoroMill PluraTool Type: Thread millingSmall diameter shoulder milling with close tolerancesCoroMill Plura is a range of high quality solid carbide end mills that offer productive, efficient, and perfectly reliable milling solutions. Featuring tools for heavy roughing, finishing, and thread milling, CoroMill Plura works in various applications and materials, including difficult-to-cut materials and very hard steels up to 63 HRc.

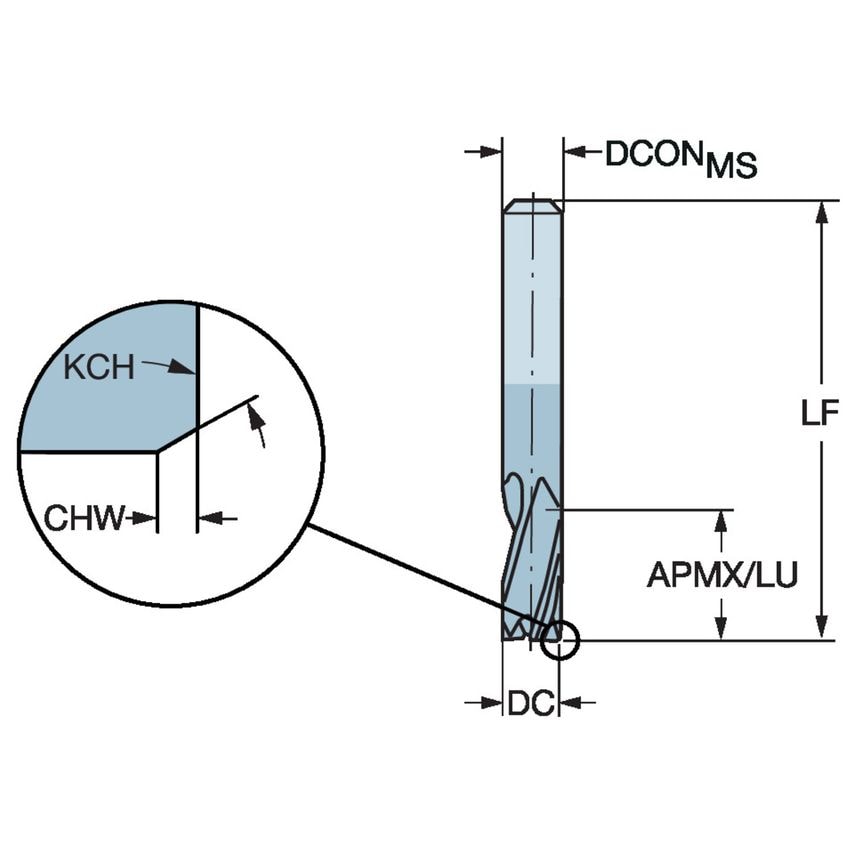

| Maximum Ramping Angle | 7\u00b0 |
| Maximum Cutting Depth | 30.96mm |
| Functional Length | 76.2mm |
| Coating Process Type | PVD |
| Cutting Diameter | 9.525mm |
| Coolant Entry Style | Without Coolant |
| Connection Diameter | 9.525mm |
| Shank Type | Cylindrical |
| Rotational Speed Maximum | 80000 1/min |
| Grade | 1620 |
| Material | Solid Carbide |
| Usable Length | 30.96mm |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Coating Type | TiAlN |
| MFR Part No. | 7045735 |
| Through Hole Function Property | Yes |
| Center Cutting Capability | Yes |
| CoroPak | 16.2 |
| Unit Measured | Imperial |
| Maximum Depth of Cut | 30.96mm |
