Product Range: CoroMill PluraTool Type: Thread millingSmall diameter shoulder milling with close tolerancesCoroMill Plura is a range of high quality solid carbide end mills that offer productive, efficient, and perfectly reliable milling solutions. Featuring tools for heavy roughing, finishing, and thread milling, CoroMill Plura works in various applications and materials, including difficult-to-cut materials and very hard steels up to 63 HRc.

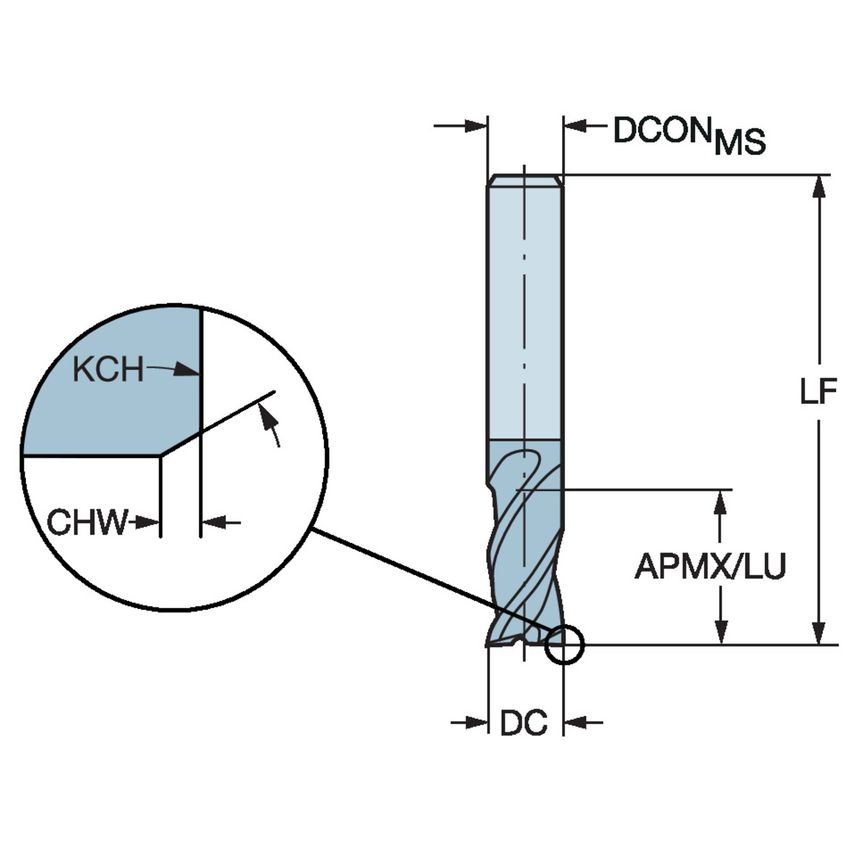

| Maximum Ramping Angle | 5\u00b0 |
| CoroPak | 16.2 |
| Material | Solid Carbide |
| Cutting Diameter | 3.175mm |
| Usable Length | 5.556mm |
| Shank Type | Cylindrical |
| Grade | 1630 |
| Unit Measured | Imperial |
| Coating Type | AlCrN |
| Through Hole Function Property | Yes |
| Coating Process Type | PVD |
| Coolant Entry Style | Without Coolant |
| Connection Diameter | 3.175mm |
| Functional Length | 38.1mm |
| Maximum Depth of Cut | 5.56mm |
| Center Cutting Capability | Yes |
| Rotational Speed Maximum | 80000 1/min |
| Maximum Cutting Depth | 5.56mm |
| MFR Part No. | 7045740 |
| ISO Cutting Tool Material | Coated WC or Cermet |
