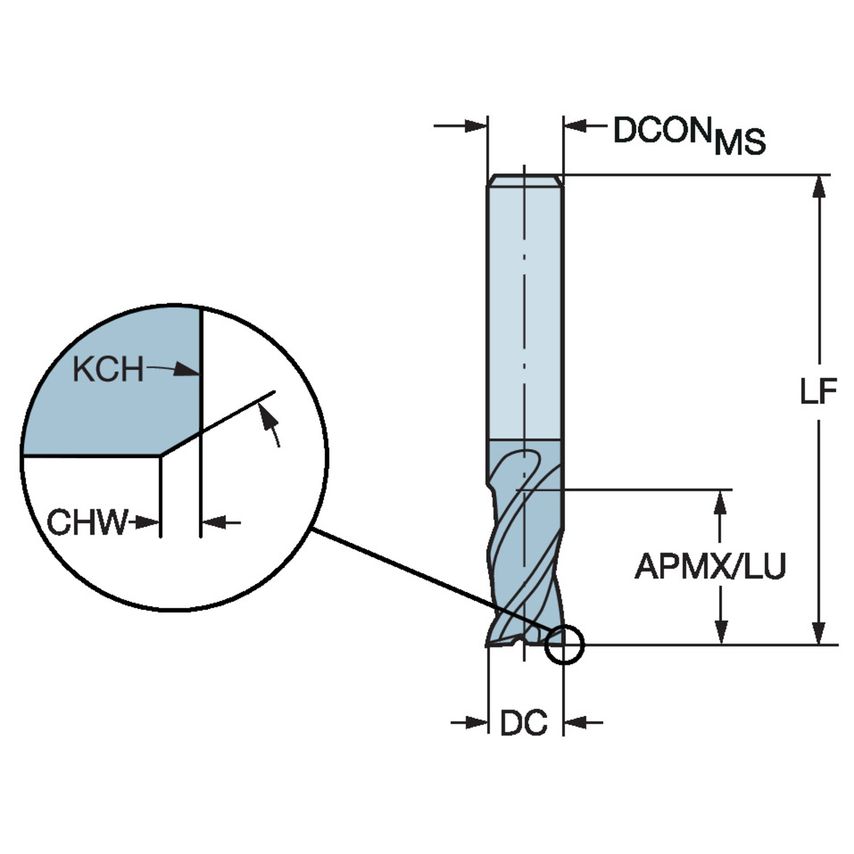

Product Range: CoroMill PluraTool Type: Thread millingSmall diameter shoulder milling with close tolerancesCoroMill Plura is a range of high quality solid carbide end mills that offer productive, efficient, and perfectly reliable milling solutions. Featuring tools for heavy roughing, finishing, and thread milling, CoroMill Plura works in various applications and materials, including difficult-to-cut materials and very hard steels up to 63 HRc.
| Center Cutting Capability | Yes |
| Cutting Diameter | 9.525mm |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Coating Type | AlCrN |
| Usable Length | 15.875mm |
| Grade | 1630 |
| Material | Solid Carbide |
| CoroPak | 16.2 |
| Unit Measured | Imperial |
| Shank Type | Cylindrical |
| Through Hole Function Property | Yes |
| MFR Part No. | 7045743 |
| Connection Diameter | 9.525mm |
| Rotational Speed Maximum | 80000 1/min |
| Functional Length | 63.5mm |
| Maximum Cutting Depth | 15.88mm |
| Maximum Depth of Cut | 15.88mm |
| Coating Process Type | PVD |
| Coolant Entry Style | Without Coolant |
| Maximum Ramping Angle | 5\u00b0 |
