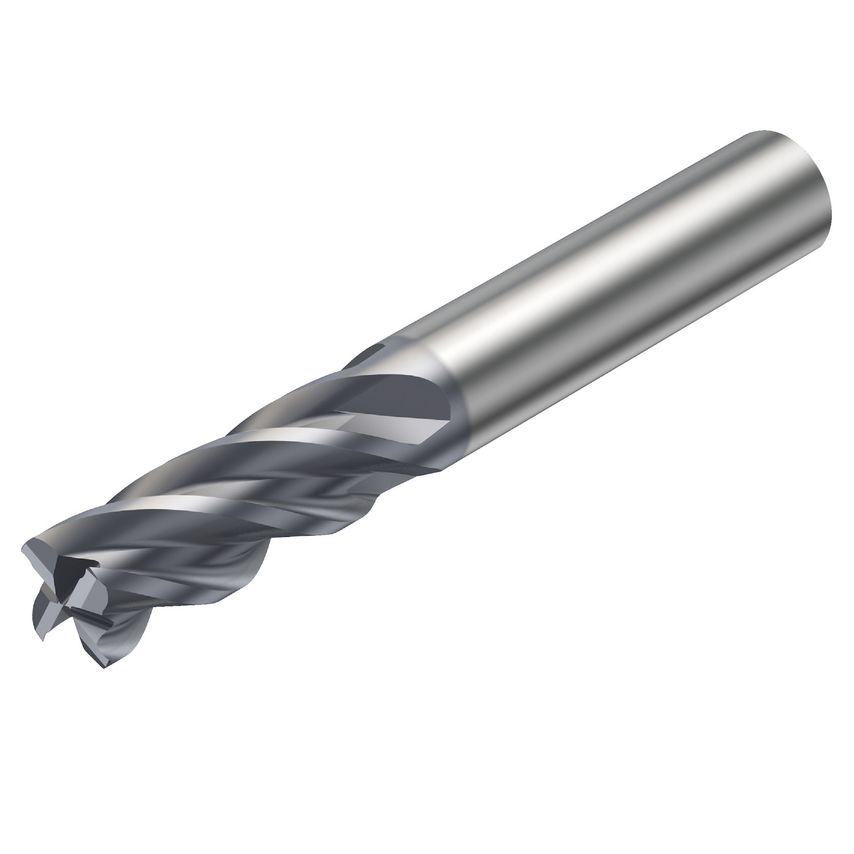

Product Range: CoroMill PluraTool Type: Thread millingSmall diameter shoulder milling with close tolerancesCoroMill Plura is a range of high quality solid carbide end mills that offer productive, efficient, and perfectly reliable milling solutions. Featuring tools for heavy roughing, finishing, and thread milling, CoroMill Plura works in various applications and materials, including difficult-to-cut materials and very hard steels up to 63 HRc.
| Functional Length | 101.6mm |
| MFR Part No. | 7045754 |
| Coating Process Type | PVD |
| Coolant Entry Style | Without Coolant |
| Cutting Diameter | 19.05mm |
| CoroPak | 16.2 |
| Unit Measured | Imperial |
| Coating Type | AlCrN |
| Through Hole Function Property | Yes |
| Material | Solid Carbide |
| Shank Type | Cylindrical |
| Center Cutting Capability | Yes |
| Usable Length | 36.512mm |
| Weight | 0.38kg |
| Maximum Ramping Angle | 5\u00b0 |
| Rotational Speed Maximum | 15300 1/min |
| Maximum Cutting Depth | 36.51mm |
| Grade | 1630 |
| Maximum Depth of Cut | 36.51mm |
| Connection Diameter | 19.05mm |
| ISO Cutting Tool Material | Coated WC or Cermet |
