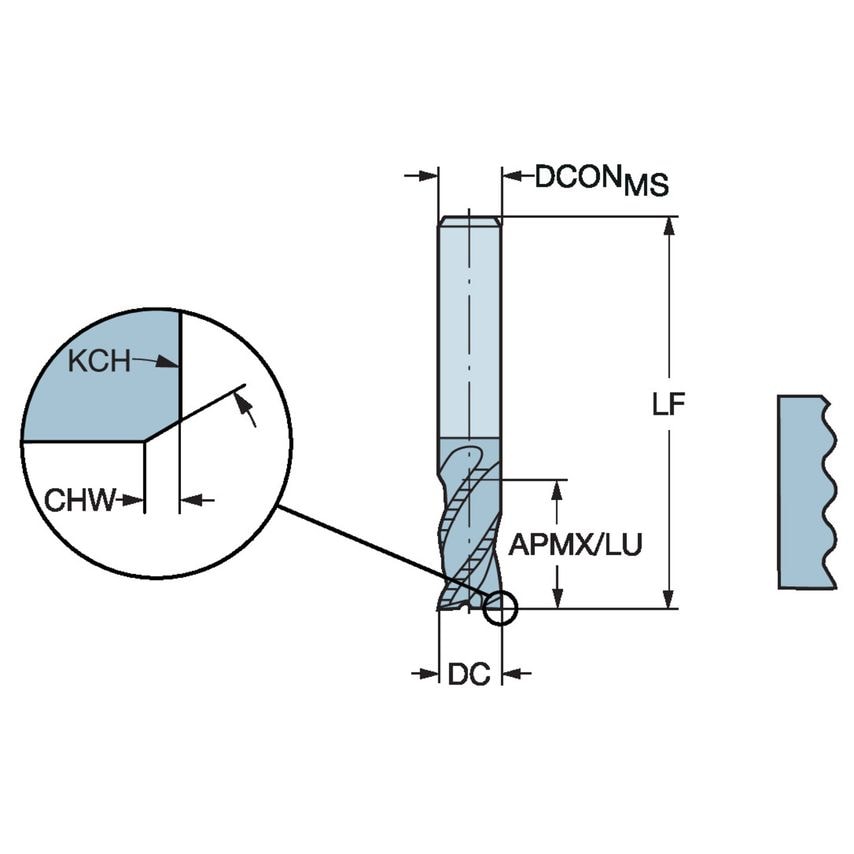

Product Range: CoroMill PluraTool Type: Thread millingSmall diameter shoulder milling with close tolerancesCoroMill Plura is a range of high quality solid carbide end mills that offer productive, efficient, and perfectly reliable milling solutions. Featuring tools for heavy roughing, finishing, and thread milling, CoroMill Plura works in various applications and materials, including difficult-to-cut materials and very hard steels up to 63 HRc.
| Grade | 1640 |
| Maximum Depth of Cut | 13.49mm |
| Connection Diameter | 10mm |
| MFR Part No. | 7045756 |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Material | Solid Carbide |
| Rotational Speed Maximum | 80000 1/min |
| Center Cutting Capability | Yes |
| Maximum Ramping Angle | 5\u00b0 |
| Functional Length | 63.5mm |
| Basic Standard Group | INTERNAL |
| Through Hole Function Property | Yes |
| Usable Length | 13.49mm |
| Coating Type | AlCrN |
| Unit Measured | Imperial |
| Milling Application | Roughing |
| Coolant Entry Style | Without Coolant |
| Coating Process Type | PVD |
| Cutting Diameter | 6.35mm |
| CoroPak | 16.2 |
| Maximum Cutting Depth | 13.49mm |
