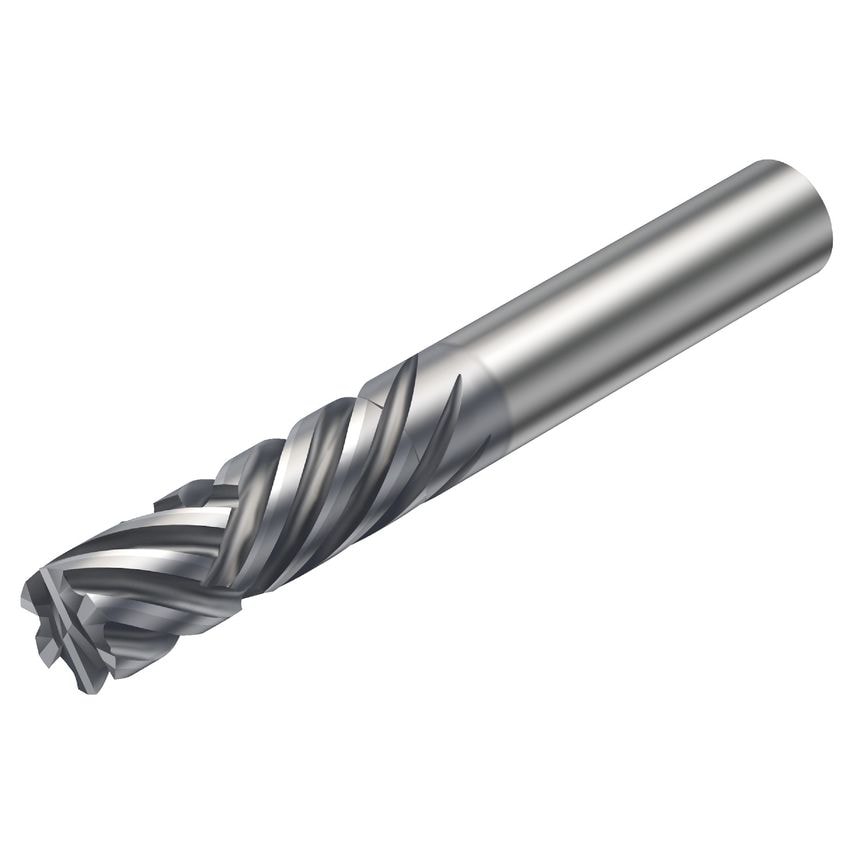

Product Range: CoroMill PluraTool Type: Thread millingSmall diameter shoulder milling with close tolerancesCoroMill Plura is a range of high quality solid carbide end mills that offer productive, efficient, and perfectly reliable milling solutions. Featuring tools for heavy roughing, finishing, and thread milling, CoroMill Plura works in various applications and materials, including difficult-to-cut materials and very hard steels up to 63 HRc.
| Center Cutting Capability | Yes |
| Maximum Cutting Depth | 25.4mm |
| CoroPak | 13.1 |
| Connection Diameter | 6.35mm |
| Corner Radius | 0mm |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Usable Length | 25.4mm |
| Coating Type | TiAlN |
| Coolant Entry Style | Without Coolant |
| Maximum Depth of Cut | 25.4mm |
| MFR Part No. | 6255704 |
| Maximum Ramping Angle | 0\u00b0 |
| Through Hole Function Property | Yes |
| Coating Process Type | PVD |
| Cutting Diameter | 7.9375mm |
| Functional Length | 76.2mm |
| Basic Standard Group | Coromant |
| Unit Measured | Imperial |
| Grade | 1630 |
| Rotational Speed Maximum | 40000 1/min |
