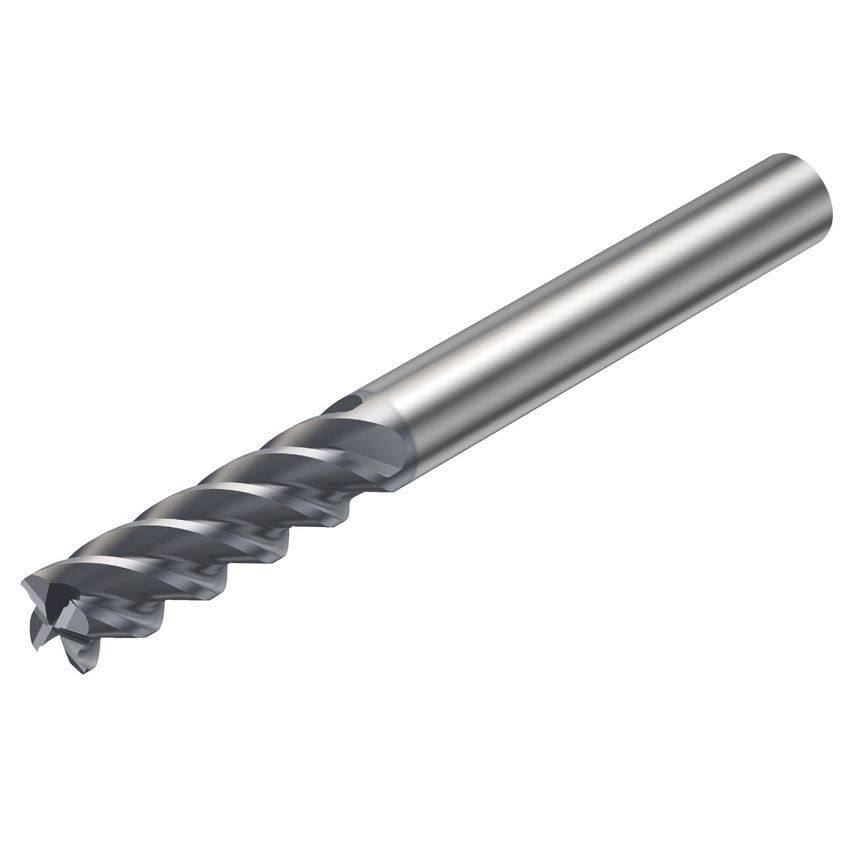

Product Range: CoroMill PluraTool Type: Thread millingSmall diameter shoulder milling with close tolerancesCoroMill Plura is a range of high quality solid carbide end mills that offer productive, efficient, and perfectly reliable milling solutions. Featuring tools for heavy roughing, finishing, and thread milling, CoroMill Plura works in various applications and materials, including difficult-to-cut materials and very hard steels up to 63 HRc.
| Maximum Ramping Angle | 4\u00b0 |
| Grade | 1620 |
| CoroPak | 16.2 |
| Through Hole Function Property | Yes |
| Unit Measured | Imperial |
| Coating Type | TiAlN |
| Maximum Cutting Depth | 42.86mm |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Maximum Depth of Cut | 42.86mm |
| Material | Solid Carbide |
| Connection Diameter | 12.7mm |
| Coolant Entry Style | Without Coolant |
| Usable Length | 42.86mm |
| Rotational Speed Maximum | 27100 1/min |
| Coating Process Type | PVD |
| Shank Type | Cylindrical |
| Center Cutting Capability | Yes |
| Weight | 0.16kg |
| MFR Part No. | 7045766 |
| Cutting Diameter | 12.7mm |
| Functional Length | 101.6mm |
