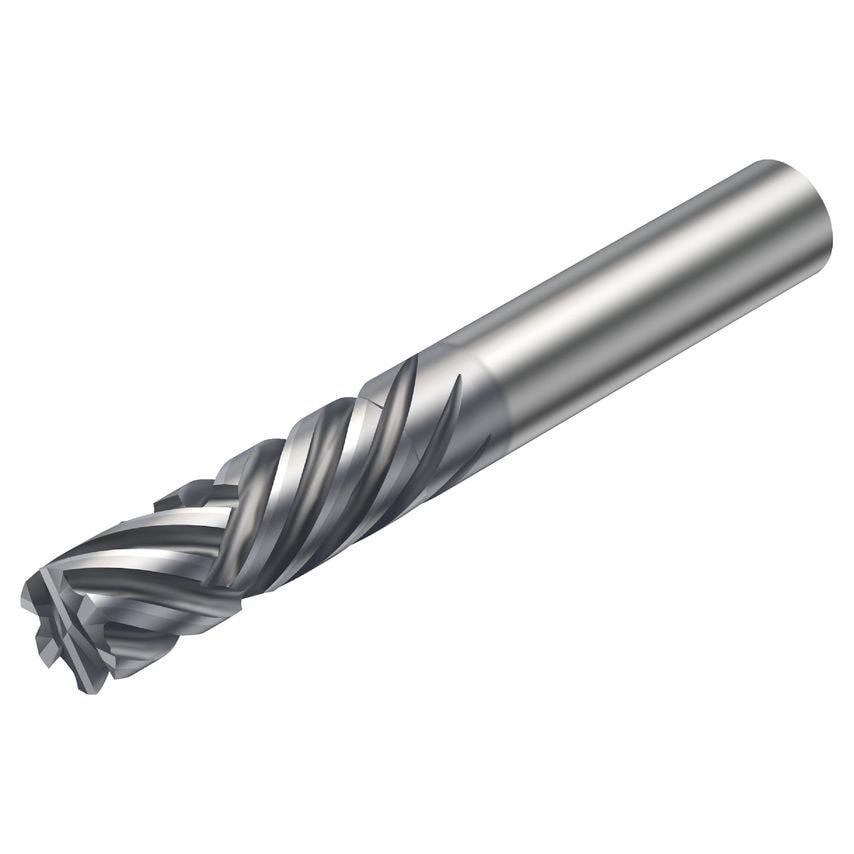

Product Range: CoroMill PluraTool Type: Thread millingSmall diameter shoulder milling with close tolerancesCoroMill Plura is a range of high quality solid carbide end mills that offer productive, efficient, and perfectly reliable milling solutions. Featuring tools for heavy roughing, finishing, and thread milling, CoroMill Plura works in various applications and materials, including difficult-to-cut materials and very hard steels up to 63 HRc.
| Maximum Ramping Angle | 0\u00b0 |
| Center Cutting Capability | Yes |
| Maximum Depth of Cut | 31.75mm |
| Coating Process Type | PVD |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Connection Diameter | 9.525mm |
| Coating Type | TiAlN |
| Grade | 1630 |
| CoroPak | 13.1 |
| Functional Length | 76.2mm |
| Usable Length | 31.75mm |
| Cutting Diameter | 9.525mm |
| Corner Radius | 0mm |
| Basic Standard Group | Coromant |
| Through Hole Function Property | Yes |
| Unit Measured | Imperial |
| Maximum Cutting Depth | 31.75mm |
| MFR Part No. | 6255705 |
| Rotational Speed Maximum | 40000 1/min |
| Weight | 78.5g |
| Coolant Entry Style | Without Coolant |
