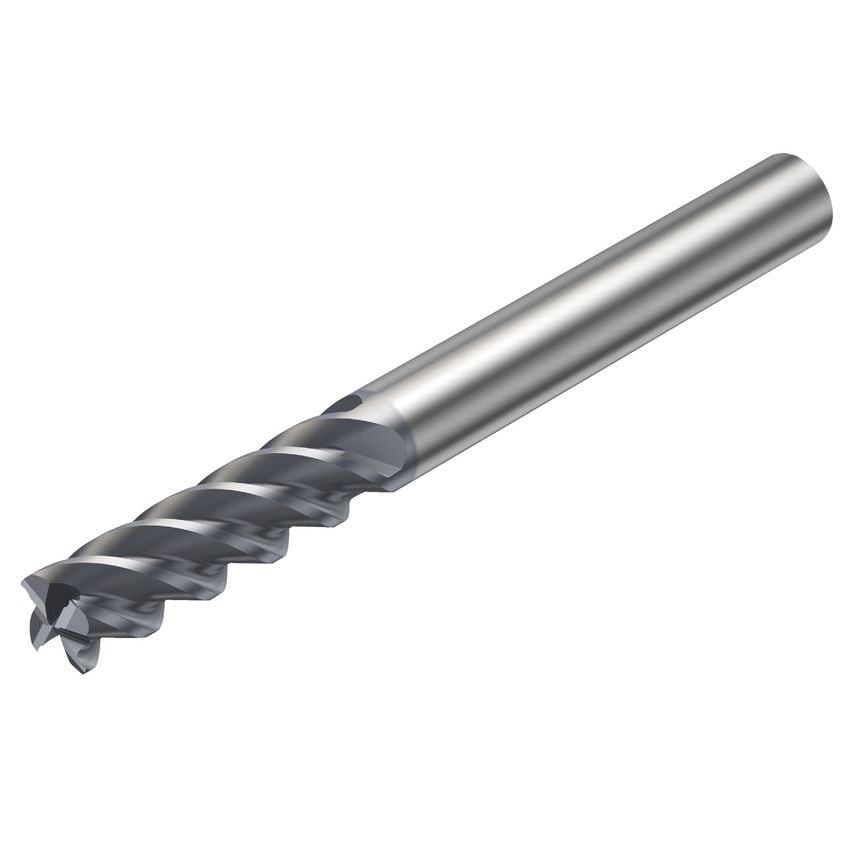

Product Range: CoroMill PluraTool Type: Thread millingSmall diameter shoulder milling with close tolerancesCoroMill Plura is a range of high quality solid carbide end mills that offer productive, efficient, and perfectly reliable milling solutions. Featuring tools for heavy roughing, finishing, and thread milling, CoroMill Plura works in various applications and materials, including difficult-to-cut materials and very hard steels up to 63 HRc.

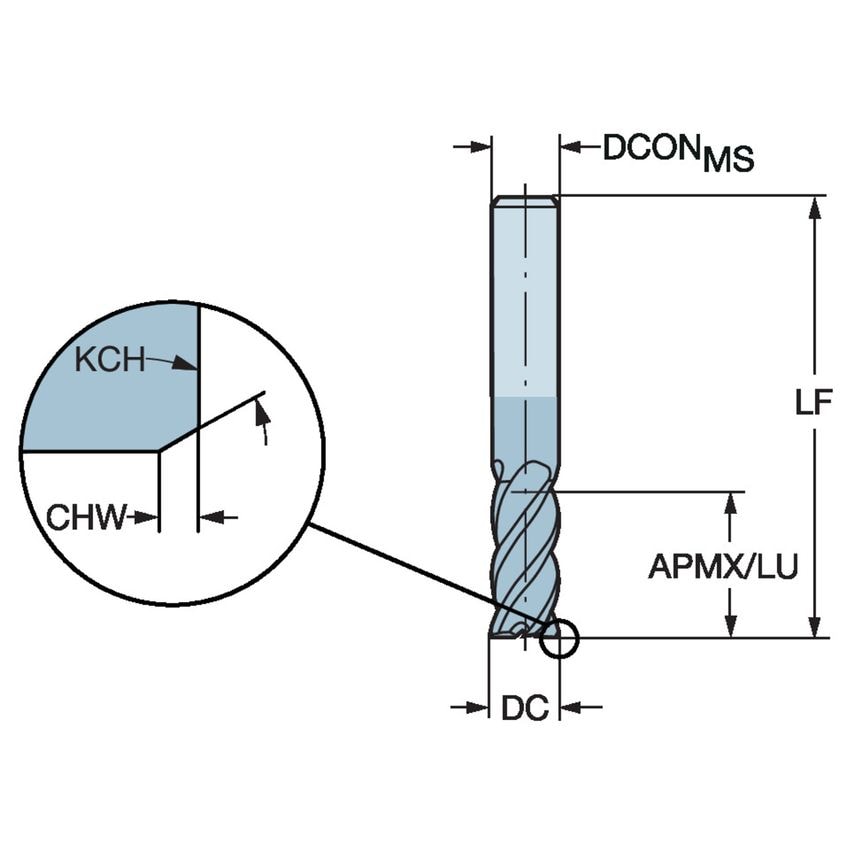

| Maximum Cutting Depth | 22.23mm |
| Connection Diameter | 6.35mm |
| Shank Type | Cylindrical |
| Coolant Entry Style | Without Coolant |
| Cutting Diameter | 6.35mm |
| Center Cutting Capability | Yes |
| Unit Measured | Imperial |
| Coating Process Type | PVD |
| Rotational Speed Maximum | 80000 1/min |
| Maximum Ramping Angle | 4\u00b0 |
| Coating Type | TiAlN |
| MFR Part No. | 7045764 |
| Grade | 1620 |
| Through Hole Function Property | Yes |
| ISO Cutting Tool Material | Coated WC or Cermet |
| CoroPak | 16.2 |
| Usable Length | 22.225mm |
| Functional Length | 63.5mm |
| Material | Solid Carbide |
| Maximum Depth of Cut | 22.23mm |
