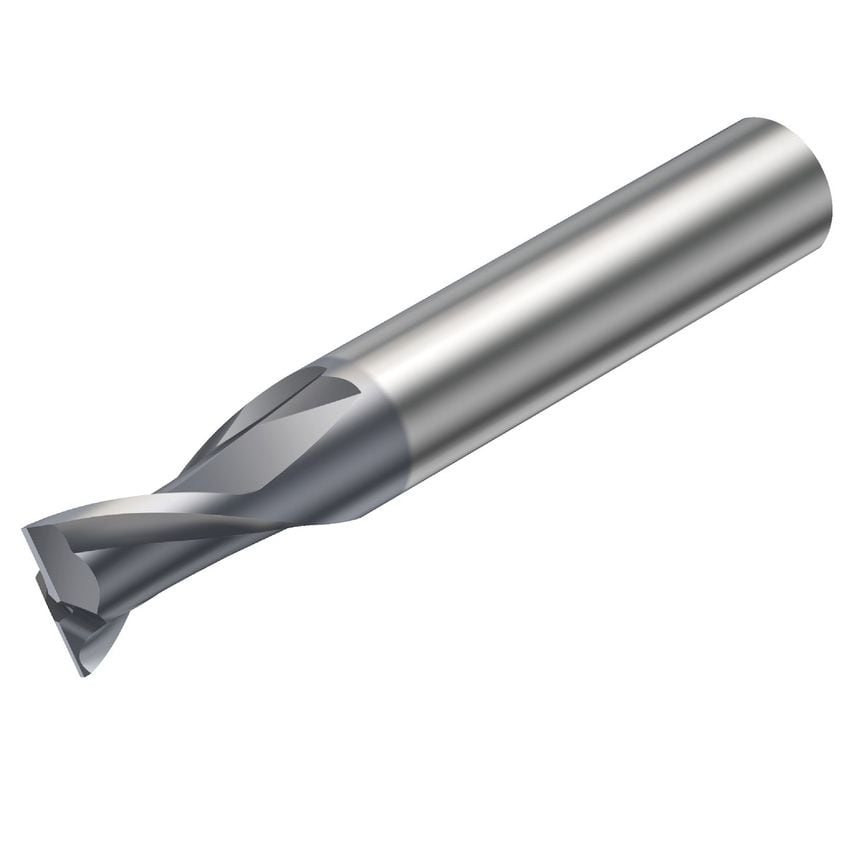

Product Range: CoroMill PluraTool Type: Thread millingSmall diameter shoulder milling with close tolerancesCoroMill Plura is a range of high quality solid carbide end mills that offer productive, efficient, and perfectly reliable milling solutions. Featuring tools for heavy roughing, finishing, and thread milling, CoroMill Plura works in various applications and materials, including difficult-to-cut materials and very hard steels up to 63 HRc.
| ISO Cutting Tool Material | Coated WC or Cermet |
| MFR Part No. | 7045775 |
| CoroPak | 16.2 |
| Coolant Entry Style | Without Coolant |

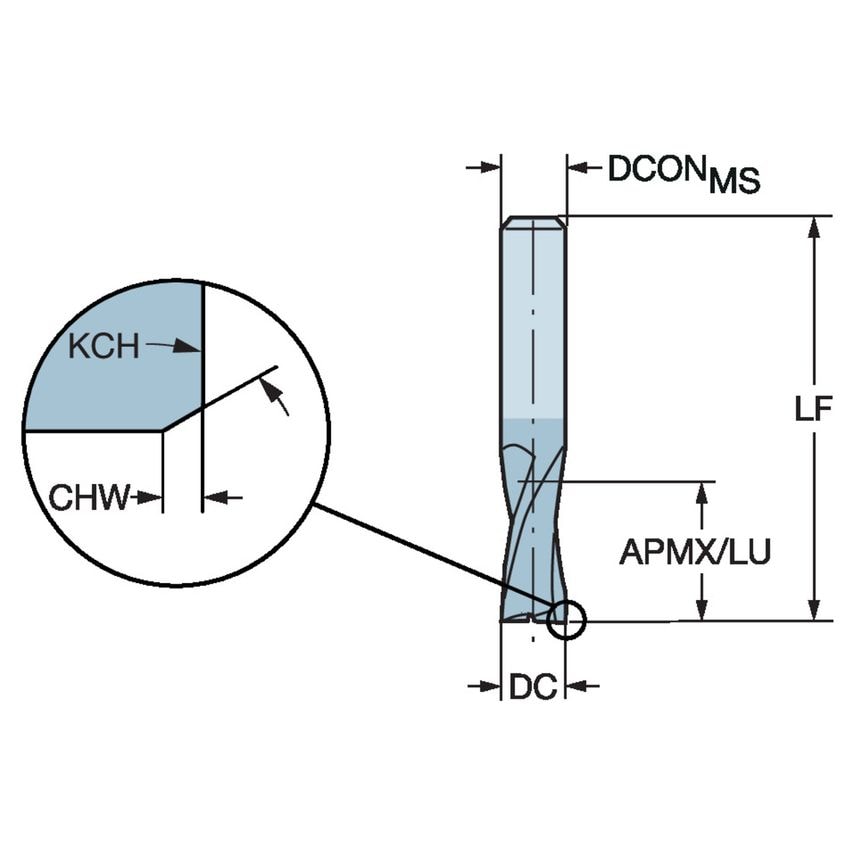

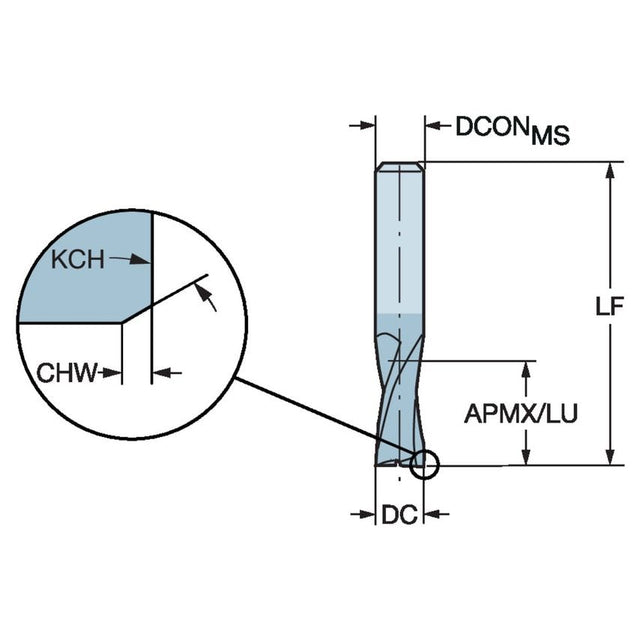

| Functional Length | 63.5mm |
| Maximum Ramping Angle | 5\u00b0 |
| Grade | 1630 |
| Connection Diameter | 9.525mm |
| Maximum Cutting Depth | 11.91mm |
| Coating Process Type | PVD |
| Material | Solid Carbide |
| Maximum Depth of Cut | 11.91mm |
| Unit Measured | Imperial |
| Rotational Speed Maximum | 80000 1/min |
| Center Cutting Capability | Yes |
| Through Hole Function Property | Yes |
| Cutting Diameter | 9.525mm |
| Coating Type | AlCrN |
| Shank Type | Cylindrical |
| Usable Length | 11.907mm |
