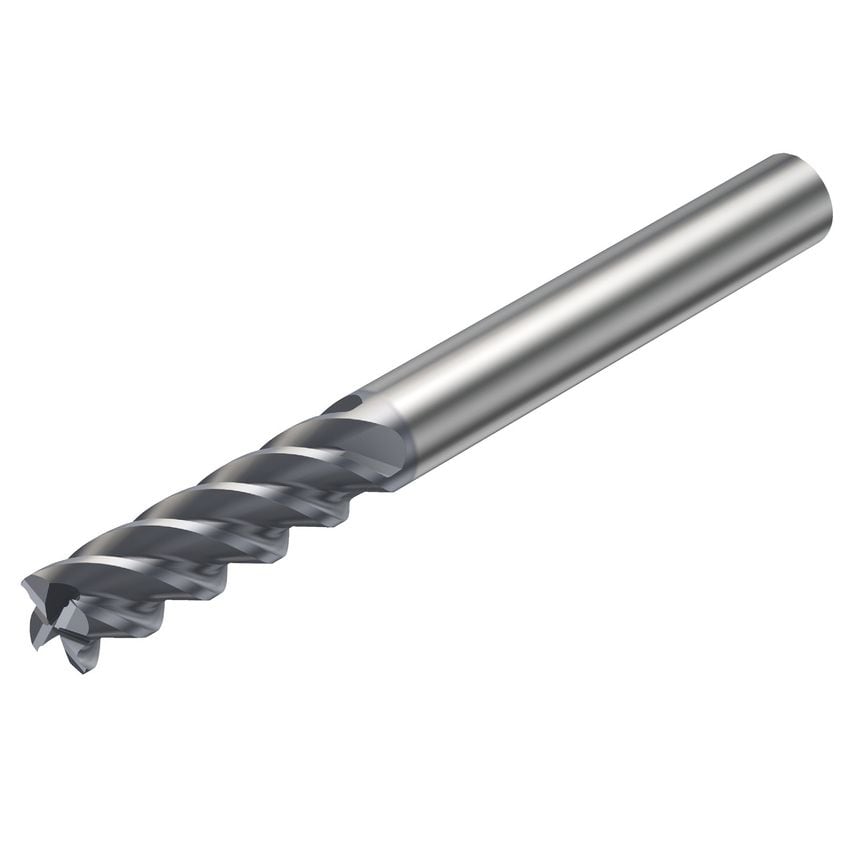

Product Range: CoroMill PluraTool Type: Thread millingSmall diameter shoulder milling with close tolerancesCoroMill Plura is a range of high quality solid carbide end mills that offer productive, efficient, and perfectly reliable milling solutions. Featuring tools for heavy roughing, finishing, and thread milling, CoroMill Plura works in various applications and materials, including difficult-to-cut materials and very hard steels up to 63 HRc.
| Functional Length | 177.8mm |
| Connection Diameter | 25.4mm |
| Unit Measured | Imperial |
| Maximum Ramping Angle | 4\u00b0 |
| Rotational Speed Maximum | 4500 1/min |
| Shank Type | Cylindrical |
| CoroPak | 16.2 |
| Coating Process Type | PVD |
| Center Cutting Capability | Yes |
| Through Hole Function Property | Yes |
| Usable Length | 91.68mm |
| Weight | 1.13kg |
| Coolant Entry Style | Without Coolant |
| Grade | 1620 |
| Material | Solid Carbide |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Coating Type | TiAlN |
| Maximum Cutting Depth | 91.68mm |
| MFR Part No. | 7045769 |
| Cutting Diameter | 25.4mm |
| Maximum Depth of Cut | 91.68mm |
