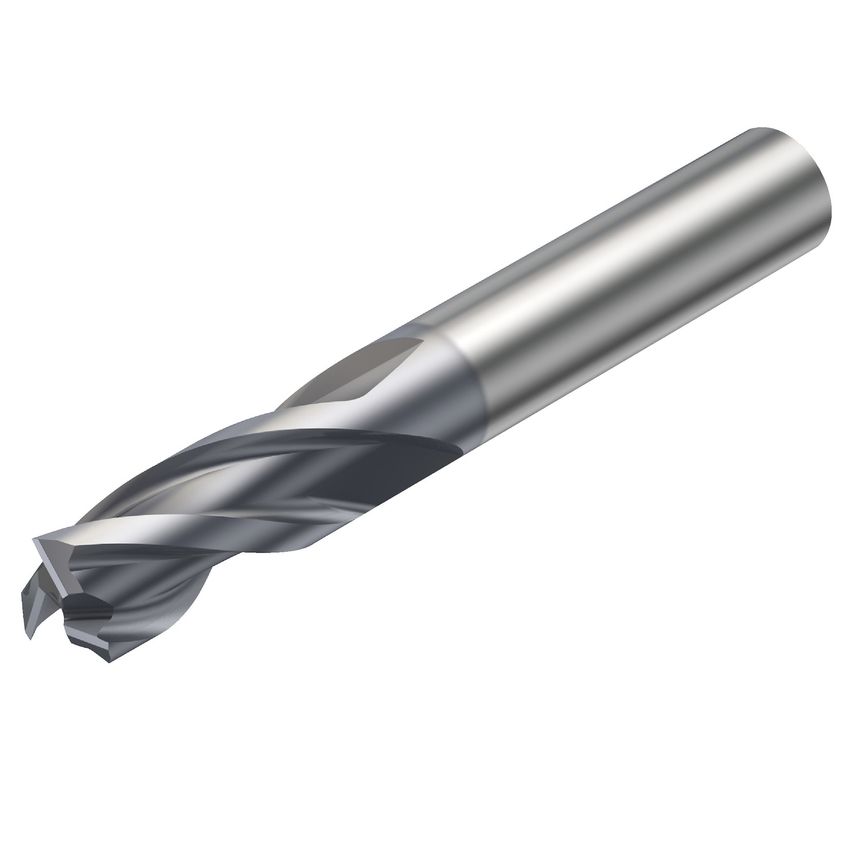

Product Range: CoroMill PluraTool Type: Thread millingSmall diameter shoulder milling with close tolerancesCoroMill Plura is a range of high quality solid carbide end mills that offer productive, efficient, and perfectly reliable milling solutions. Featuring tools for heavy roughing, finishing, and thread milling, CoroMill Plura works in various applications and materials, including difficult-to-cut materials and very hard steels up to 63 HRc.
| Coating Process Type | PVD |
| Unit Measured | Metric |
| Center Cutting Capability | Yes |
| Body Half Taper Angle | 30\u00b0 |
| Coating Type | AlCrN |
| Weight | 124.6g |
| Maximum Cutting Depth | 22.5mm |
| Connection Diameter | 12mm |
| Grade | 1630 |
| Cutting Diameter | 11mm |
| Material | Solid Carbide |
| Usable Length | 22.5mm |
| Rotational Speed Maximum | 50900 1/min |
| Maximum Depth of Cut | 22.5mm |
| Shank Type | Cylindrical |
| Through Hole Function Property | Yes |
| Standards Met | DIN 6527 L |
| Functional Length | 83mm |
| Basic Standard Group | DIN 6527 L |
| MFR Part No. | 6259690 |
| Maximum Ramping Angle | 8\u00b0 |
| CoroPak | 12.2 |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Coolant Entry Style | Without Coolant |
