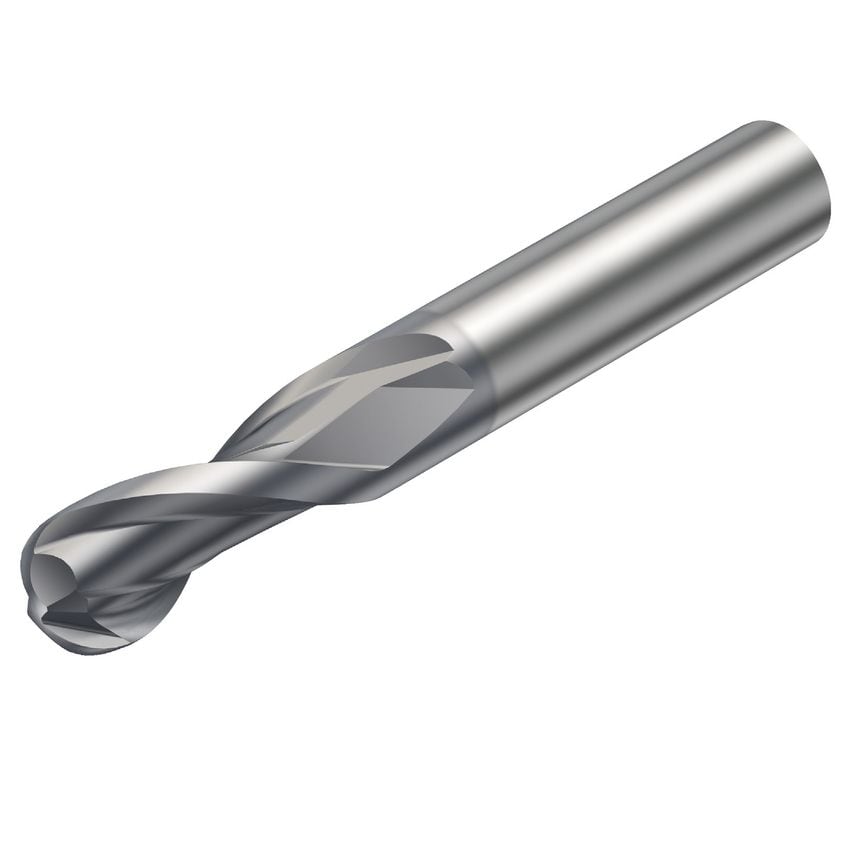

Product Range: CoroMill PluraTool Type: Thread millingSmall diameter shoulder milling with close tolerancesCoroMill Plura is a range of high quality solid carbide end mills that offer productive, efficient, and perfectly reliable milling solutions. Featuring tools for heavy roughing, finishing, and thread milling, CoroMill Plura works in various applications and materials, including difficult-to-cut materials and very hard steels up to 63 HRc.

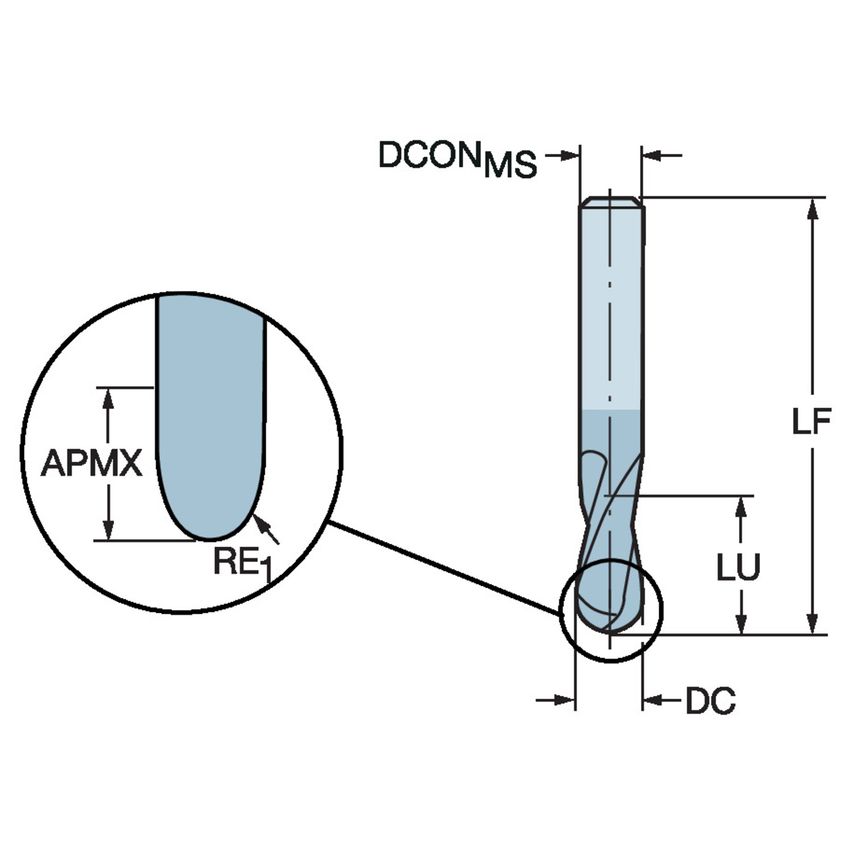

| Maximum Ramping Angle | 15\u00b0 |
| Through Hole Function Property | Yes |
| MFR Part No. | 6259450 |
| CoroPak | 142.06 |
| Corner Radius | 1.588mm |
| Grade | 1620 |
| Connection Diameter | 10mm |
| Functional Length | 25.4mm |
| Coating Type | TiAlN |
| Coating Process Type | PVD |
| Body Half Taper Angle | 30\u00b0 |
| Cutting Diameter | 6.8mm |
| Unit Measured | Imperial |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Usable Length | 6.35mm |
| Basic Standard Group | Coromant |
| Coolant Entry Style | Without Coolant |
| Rotational Speed Maximum | 80000 1/min |
