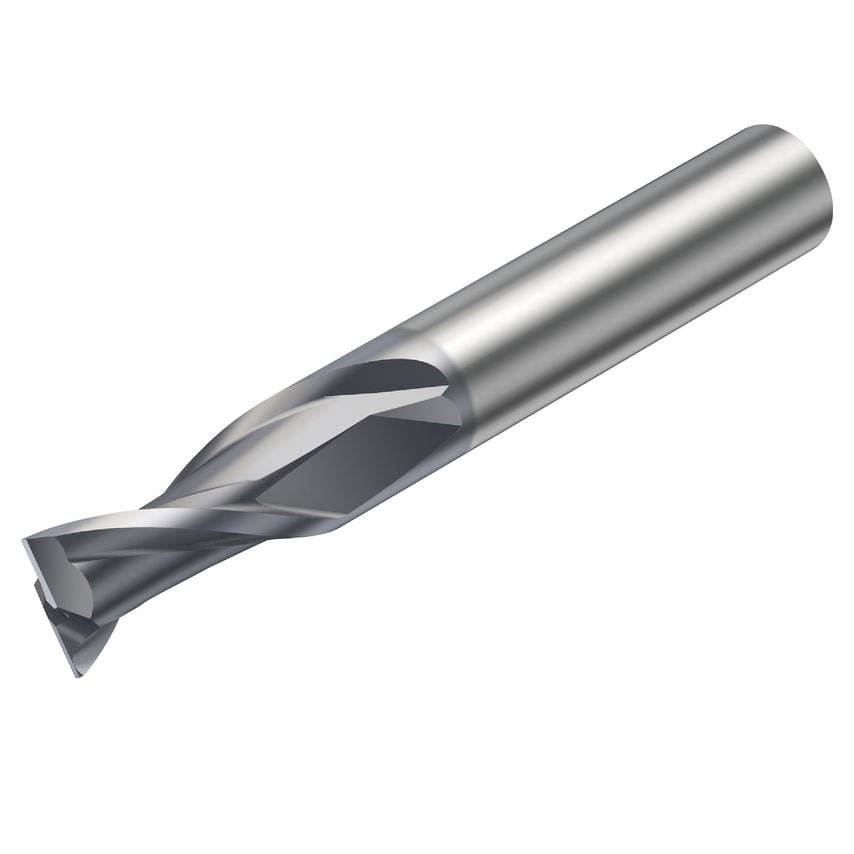

Product Range: CoroMill PluraTool Type: Thread millingSmall diameter shoulder milling with close tolerancesCoroMill Plura is a range of high quality solid carbide end mills that offer productive, efficient, and perfectly reliable milling solutions. Featuring tools for heavy roughing, finishing, and thread milling, CoroMill Plura works in various applications and materials, including difficult-to-cut materials and very hard steels up to 63 HRc.

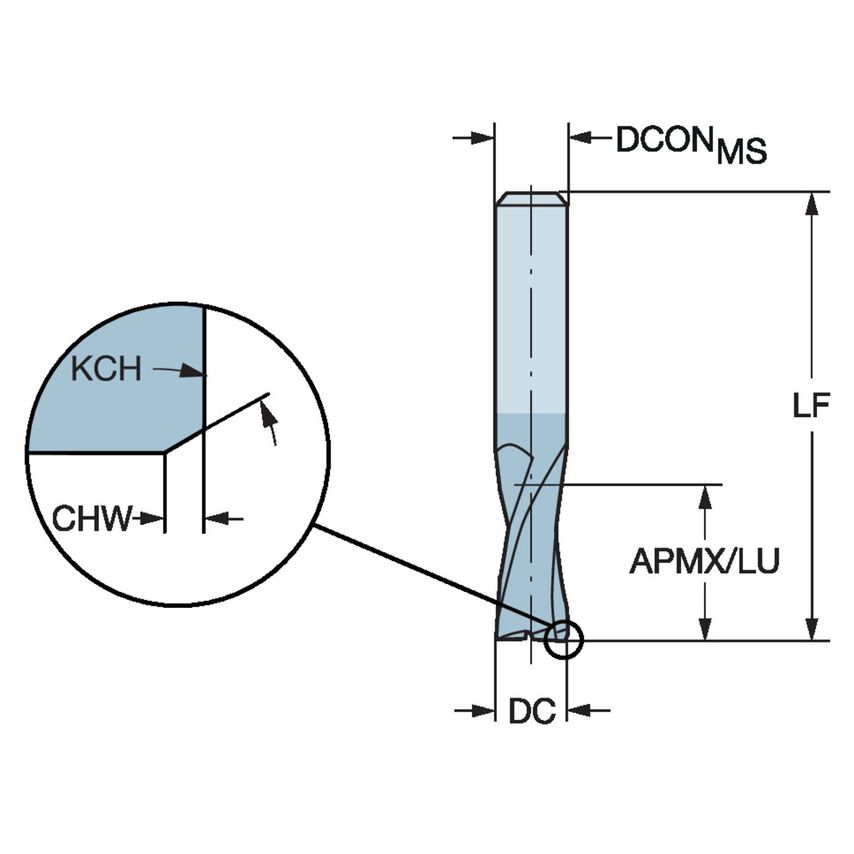

| Coating Type | AlCrN |
| Through Hole Function Property | Yes |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Maximum Depth of Cut | 9.13mm |
| Usable Length | 9.13mm |
| Maximum Ramping Angle | 8\u00b0 |
| Grade | 1630 |
| MFR Part No. | 7045801 |
| Shank Type | Cylindrical |
| Rotational Speed Maximum | 80000 1/min |
| Maximum Cutting Depth | 9.13mm |
| Material | Solid Carbide |
| CoroPak | 16.2 |
| Unit Measured | Imperial |
| Coating Process Type | PVD |
| Cutting Diameter | 3.175mm |
| Connection Diameter | 3.175mm |
| Functional Length | 38.1mm |
| Center Cutting Capability | Yes |
| Coolant Entry Style | Without Coolant |
