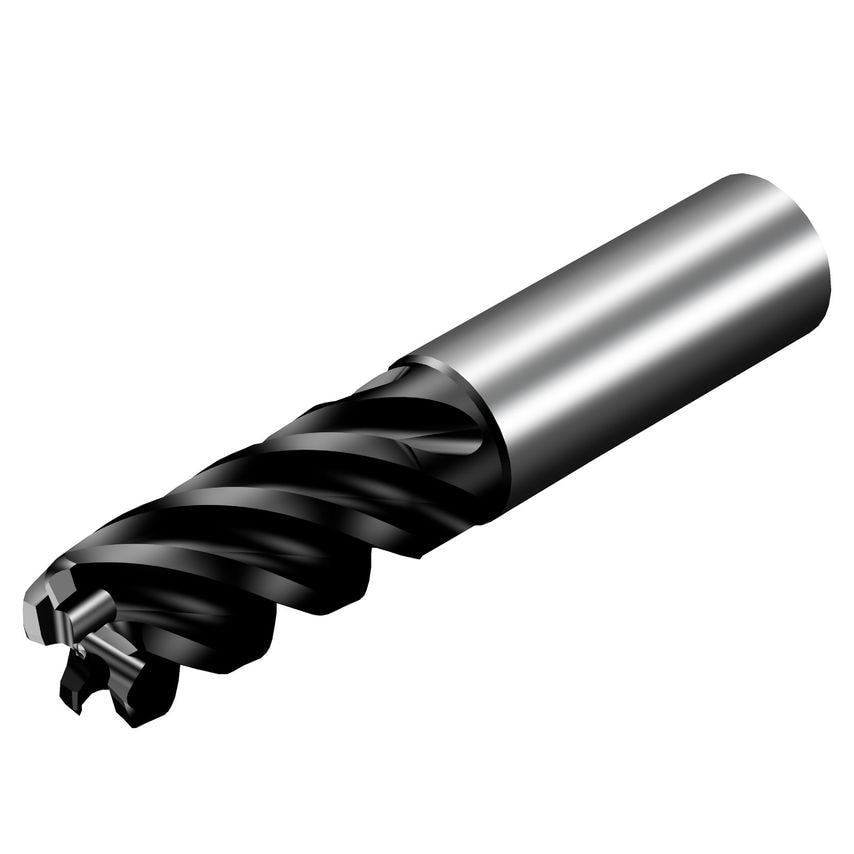

Product Range: CoroMill PluraTool Type: Thread millingSmall diameter shoulder milling with close tolerancesCoroMill Plura is a range of high quality solid carbide end mills that offer productive, efficient, and perfectly reliable milling solutions. Featuring tools for heavy roughing, finishing, and thread milling, CoroMill Plura works in various applications and materials, including difficult-to-cut materials and very hard steels up to 63 HRc.

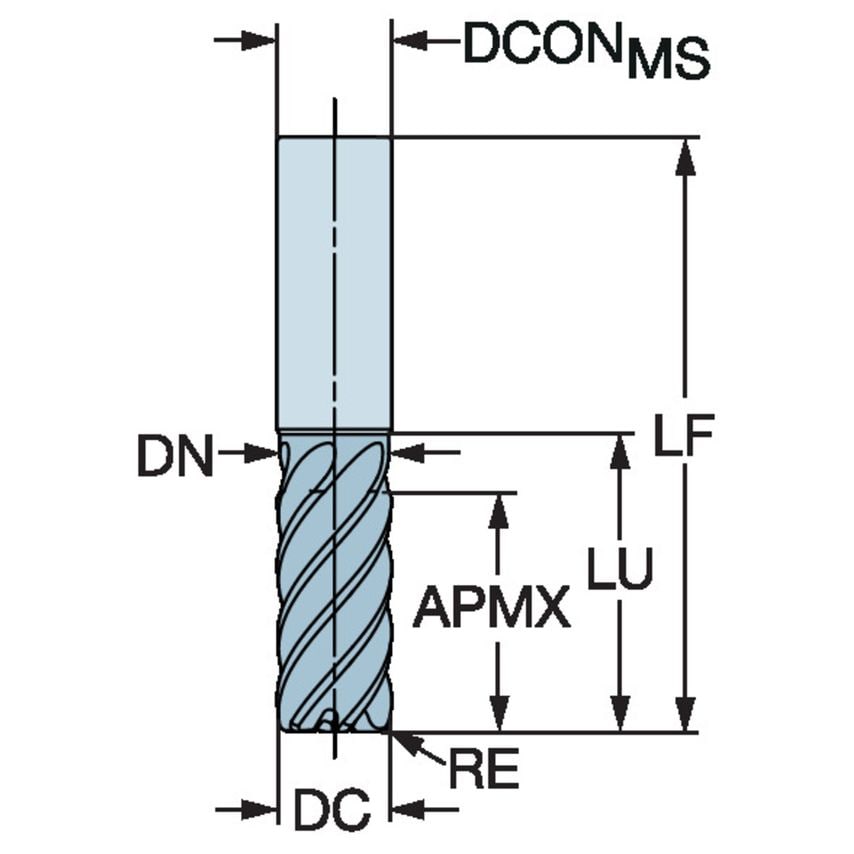

| Unit Measured | Metric |
| MFR Part No. | 7419161 |
| Shank Type | Cylindrical |
| Basic Standard Group | Coromant |
| Through Hole Function Property | Yes |
| Center Cutting Capability | No |
| CoroPak | 17.2 |
| Coating Process Type | PVD |
| Maximum Depth of Cut | 13mm |
| Cutting Diameter | 6mm |
| Connection Diameter | 6mm |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Maximum Cutting Depth | 13mm |
| Functional Length | 57mm |
| Usable Length | 20mm |
| Coating Type | TiAlSiN |
| Material | Solid Carbide |
| Corner Radius | 0.5mm |
| Coolant Entry Style | Without Coolant |
| Product Type | Solid Carbide Endmill |
| Rotational Speed Maximum | 80000 1/min |
| Maximum Ramping Angle | 5\u00b0 |
| Standards Met | COROMANT |
| Weight | 24.3g |
| Grade | 1745 |
