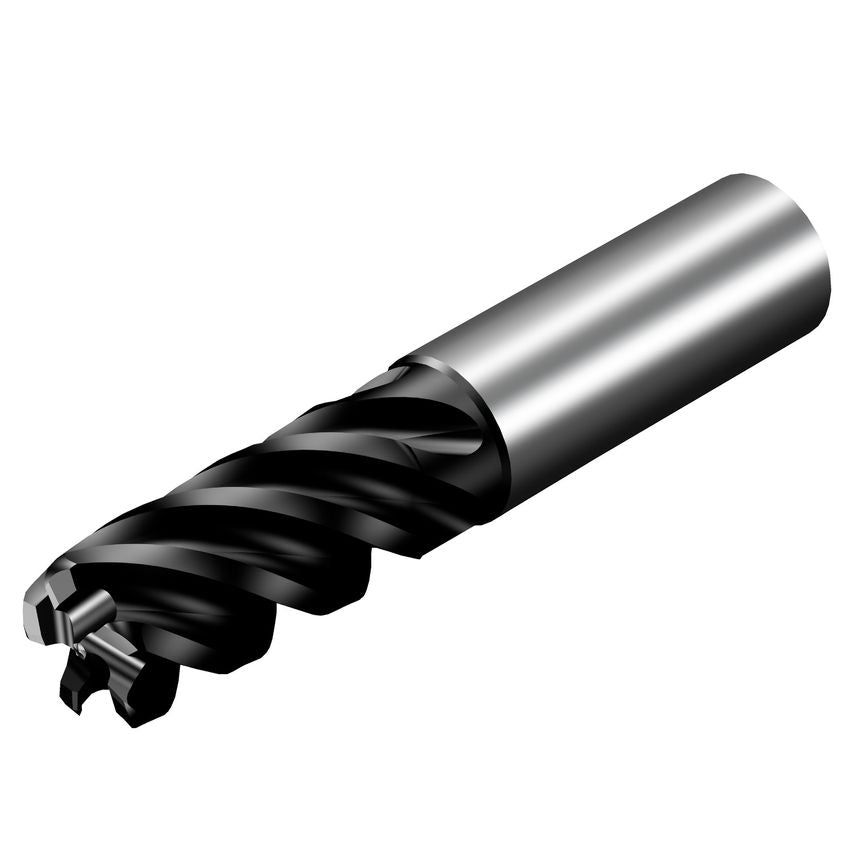

Product Range: CoroMill PluraTool Type: Thread millingSmall diameter shoulder milling with close tolerancesCoroMill Plura is a range of high quality solid carbide end mills that offer productive, efficient, and perfectly reliable milling solutions. Featuring tools for heavy roughing, finishing, and thread milling, CoroMill Plura works in various applications and materials, including difficult-to-cut materials and very hard steels up to 63 HRc.
| Coolant Entry Style | Without Coolant |
| Maximum Cutting Depth | 26mm |
| Shank Type | Cylindrical |
| Coating Type | TiAlSiN |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Basic Standard Group | Coromant |
| Weight | 126g |
| Material | Solid Carbide |
| Grade | 1745 |
| Unit Measured | Metric |
| Standards Met | COROMANT |
| Coating Process Type | PVD |
| Corner Radius | 2mm |
| Maximum Ramping Angle | 5\u00b0 |
| CoroPak | 17.2 |
| MFR Part No. | 7419169 |
| Cutting Diameter | 12mm |
| Center Cutting Capability | No |
| Maximum Depth of Cut | 26mm |
| Functional Length | 83mm |
| Through Hole Function Property | Yes |
| Connection Diameter | 12mm |
| Product Type | Solid Carbide Endmill |
| Usable Length | 36mm |
| Rotational Speed Maximum | 80000 1/min |
