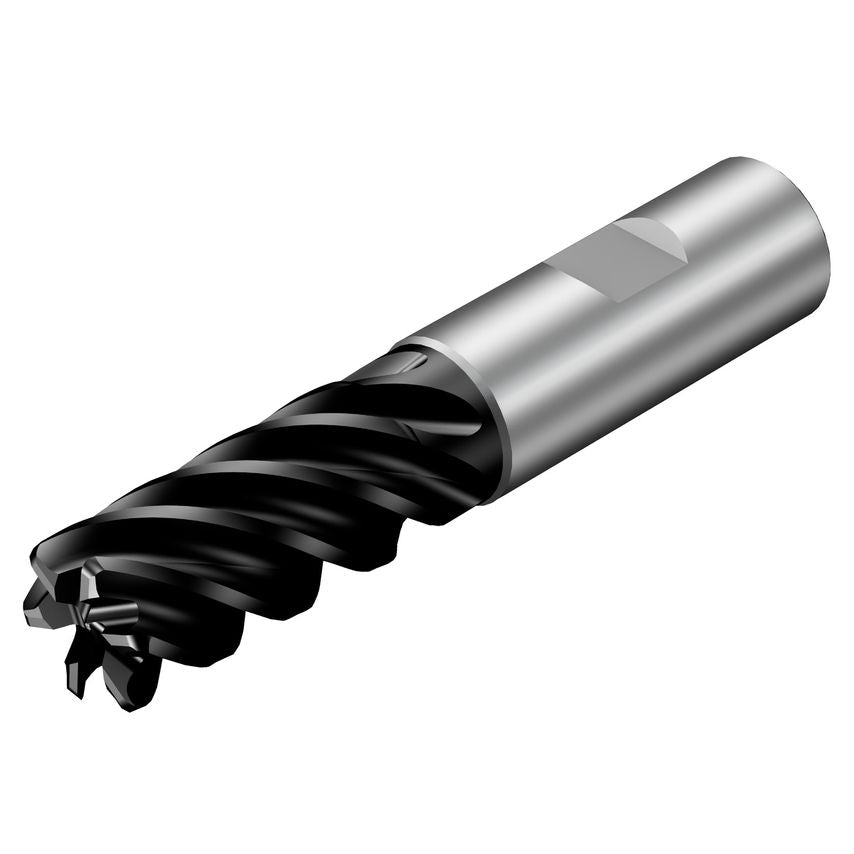

Product Range: CoroMill PluraTool Type: Thread millingSmall diameter shoulder milling with close tolerancesCoroMill Plura is a range of high quality solid carbide end mills that offer productive, efficient, and perfectly reliable milling solutions. Featuring tools for heavy roughing, finishing, and thread milling, CoroMill Plura works in various applications and materials, including difficult-to-cut materials and very hard steels up to 63 HRc.
| Material | Solid Carbide |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Shank Type | Weldon |
| Coolant Entry Style | Without Coolant |
| Standards Met | DIN6535 |

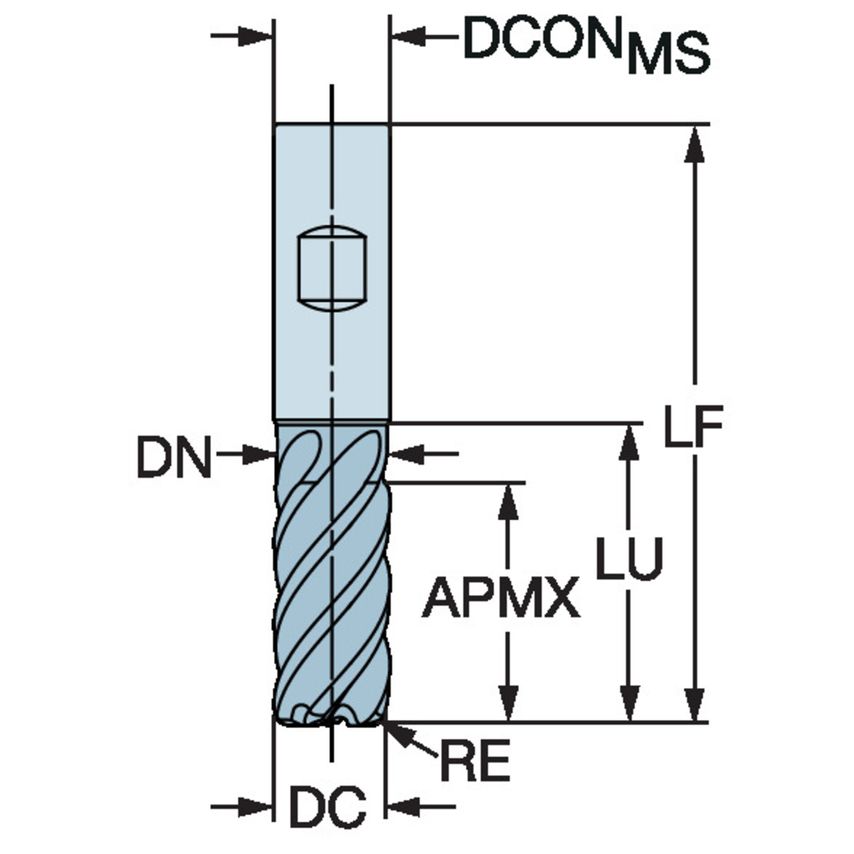

| Functional Length | 121mm |
| Unit Measured | Metric |
| Grade | 1745 |
| Weight | 732.8g |
| Maximum Depth of Cut | 52mm |
| Maximum Cutting Depth | 52mm |
| Corner Radius | 4mm |
| Basic Standard Group | Coromant |
| Coating Process Type | PVD |
| Product Type | Solid Carbide Endmill |
| Connection Diameter | 6mm |
| Maximum Ramping Angle | 5\u00b0 |
| CoroPak | 17.2 |
| Center Cutting Capability | No |
| Usable Length | 63mm |
| Coating Type | TiAlSiN |
| Cutting Diameter | 25mm |
| Through Hole Function Property | Yes |
| MFR Part No. | 7419187 |
| Rotational Speed Maximum | 8200 1/min |
