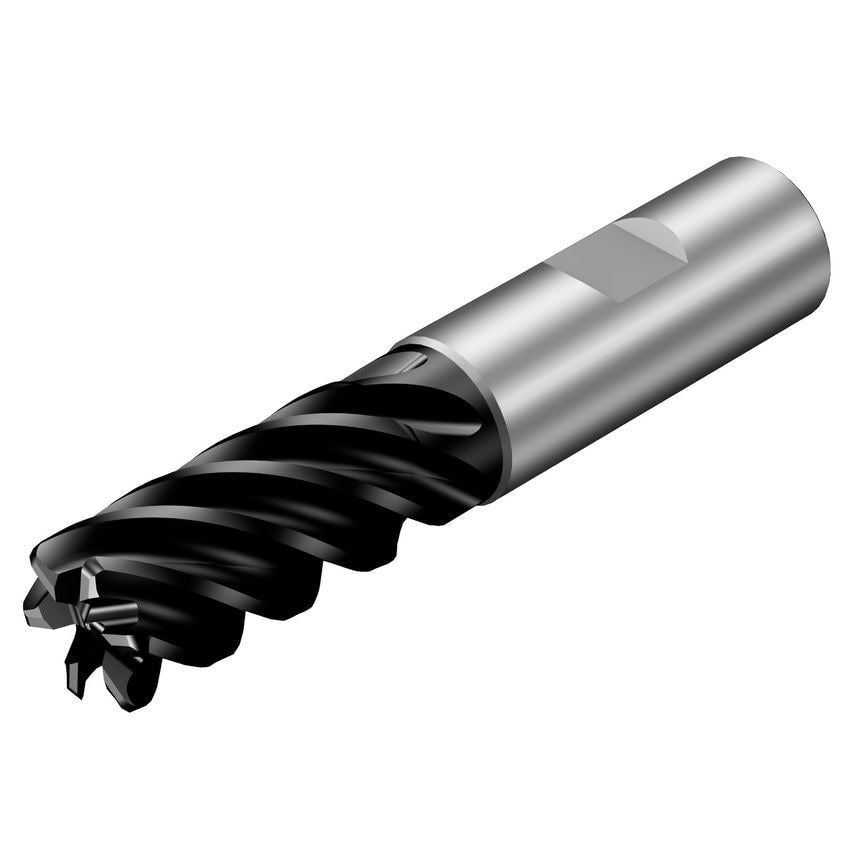

Product Range: CoroMill PluraTool Type: Thread millingSmall diameter shoulder milling with close tolerancesCoroMill Plura is a range of high quality solid carbide end mills that offer productive, efficient, and perfectly reliable milling solutions. Featuring tools for heavy roughing, finishing, and thread milling, CoroMill Plura works in various applications and materials, including difficult-to-cut materials and very hard steels up to 63 HRc.
| Coating Process Type | PVD |
| Maximum Ramping Angle | 5\u00b0 |
| Maximum Depth of Cut | 42mm |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Product Type | Solid Carbide Endmill |
| Coating Type | TiAlSiN |
| Corner Radius | 4mm |
| CoroPak | 17.2 |
| MFR Part No. | 7419186 |
| Center Cutting Capability | No |
| Basic Standard Group | Coromant |
| Coolant Entry Style | Without Coolant |
| Through Hole Function Property | Yes |
| Connection Diameter | 20mm |
| Usable Length | 52mm |
| Rotational Speed Maximum | 13200 1/min |
| Grade | 1745 |
| Unit Measured | Metric |
| Functional Length | 104mm |
| Weight | 397.8g |
| Material | Solid Carbide |
| Cutting Diameter | 20mm |
| Maximum Cutting Depth | 42mm |
| Standards Met | COROMANT |
| Shank Type | Weldon |
