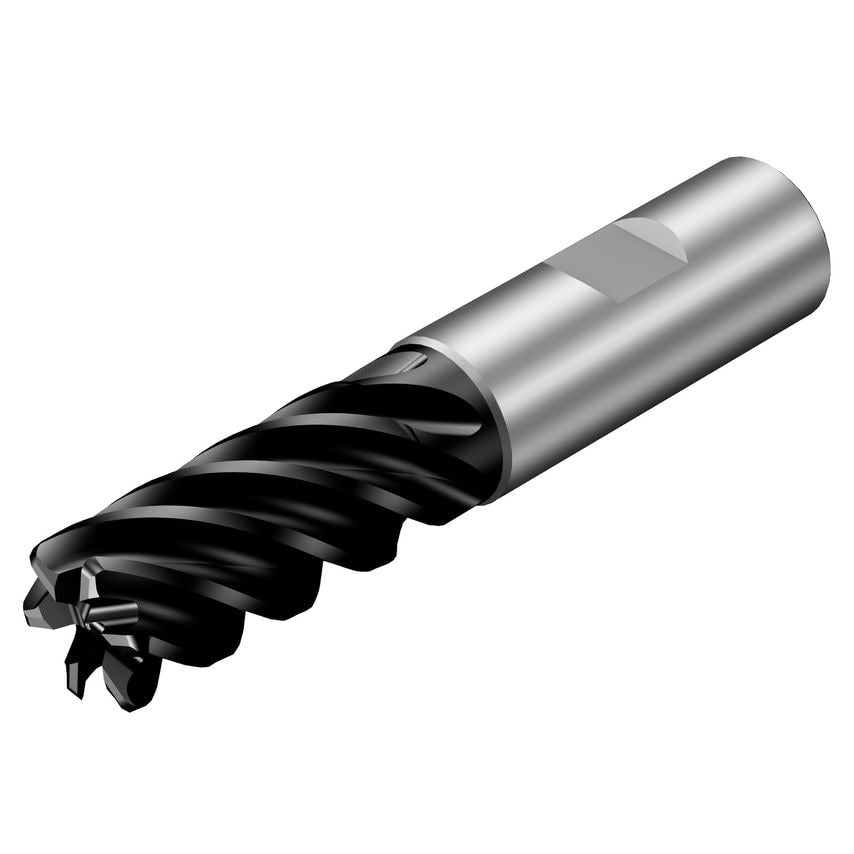

Product Range: CoroMill PluraTool Type: Thread millingSmall diameter shoulder milling with close tolerancesCoroMill Plura is a range of high quality solid carbide end mills that offer productive, efficient, and perfectly reliable milling solutions. Featuring tools for heavy roughing, finishing, and thread milling, CoroMill Plura works in various applications and materials, including difficult-to-cut materials and very hard steels up to 63 HRc.
| Coating Type | TiAlSiN |
| Shank Type | Weldon |
| Connection Diameter | 50mm |
| Grade | 1745 |
| Cutting Diameter | 16mm |
| Maximum Depth of Cut | 34mm |
| Maximum Ramping Angle | 5\u00b0 |
| CoroPak | 17.2 |
| Basic Standard Group | Coromant |
| Unit Measured | Metric |
| Material | Solid Carbide |
| Usable Length | 42mm |
| Coolant Entry Style | Without Coolant |
| Rotational Speed Maximum | 22800 1/min |
| Maximum Cutting Depth | 34mm |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Standards Met | COROMANT |
| Center Cutting Capability | No |
| Functional Length | 92mm |
| Weight | 240g |
| Coating Process Type | PVD |
| MFR Part No. | 7419183 |
| Through Hole Function Property | Yes |
| Corner Radius | 2mm |
| Product Type | Solid Carbide Endmill |
