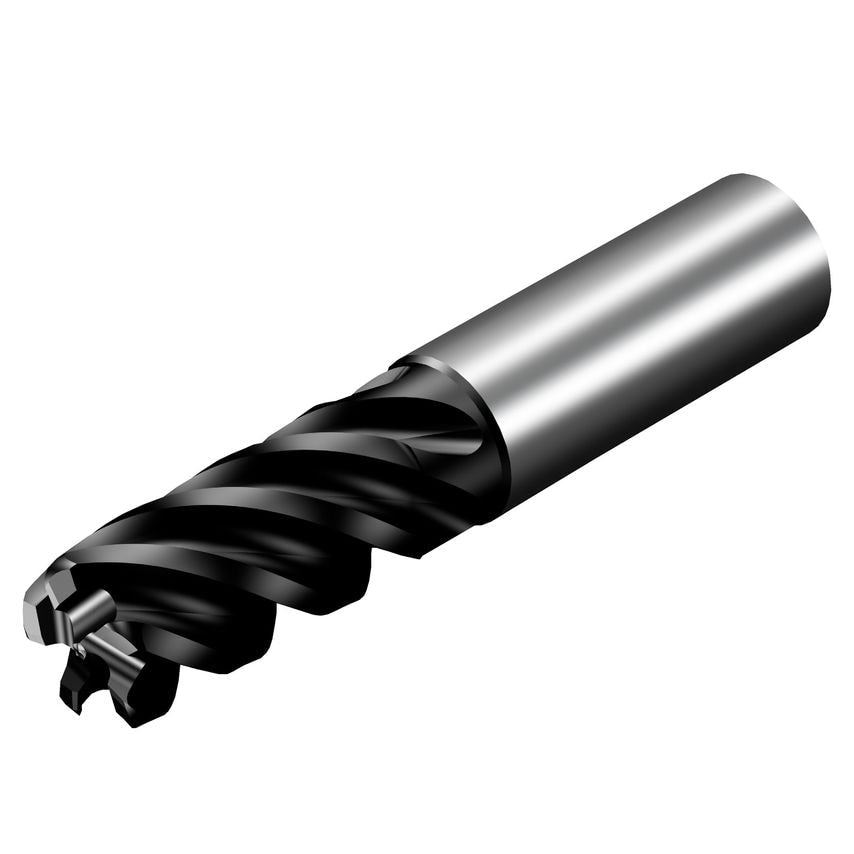

Product Range: CoroMill PluraTool Type: Thread millingSmall diameter shoulder milling with close tolerancesCoroMill Plura is a range of high quality solid carbide end mills that offer productive, efficient, and perfectly reliable milling solutions. Featuring tools for heavy roughing, finishing, and thread milling, CoroMill Plura works in various applications and materials, including difficult-to-cut materials and very hard steels up to 63 HRc.

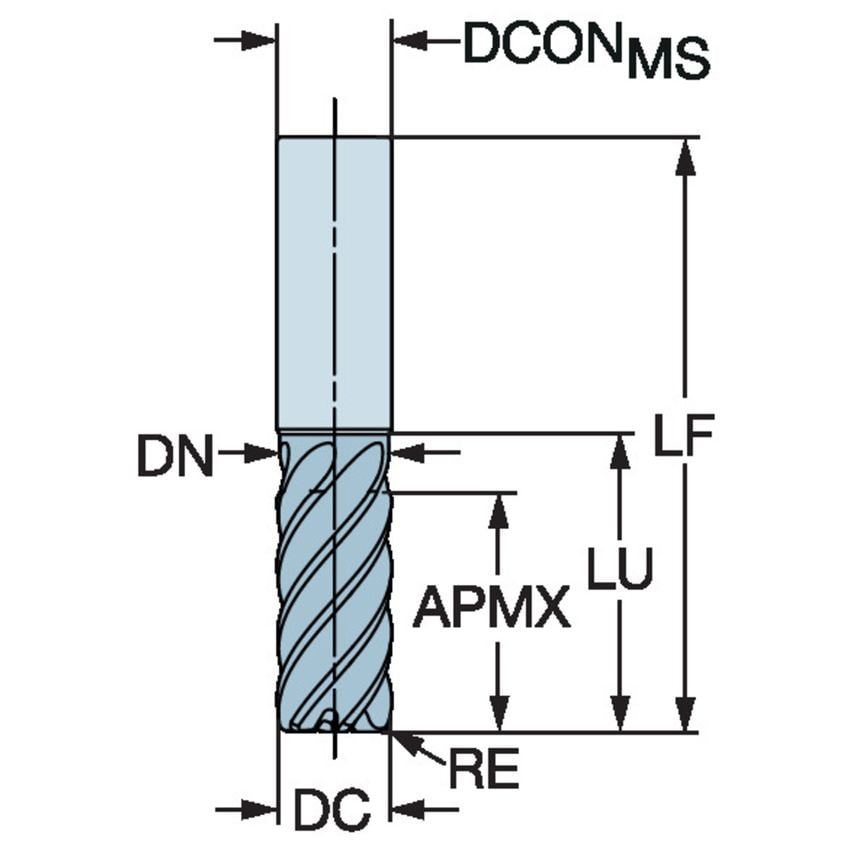

| Basic Standard Group | Coromant |
| Grade | 1745 |
| Corner Radius | 2.286mm |
| Rotational Speed Maximum | 72600 1/min |
| MFR Part No. | 7419198 |
| Product Type | Solid Carbide Endmill |
| Unit Measured | Imperial |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Connection Diameter | 9.525mm |
| Shank Type | Cylindrical |
| Standards Met | COROMANT |
| Coating Type | TiAlSiN |
| Coolant Entry Style | Without Coolant |
| Maximum Depth of Cut | 19.84mm |
| Weight | 68.5g |
| Usable Length | 29.37mm |
| Coating Process Type | PVD |
| Maximum Cutting Depth | 19.84mm |
| Center Cutting Capability | No |
| CoroPak | 17.2 |
| Through Hole Function Property | Yes |
| Functional Length | 69.85mm |
| Material | Solid Carbide |
| Maximum Ramping Angle | 5\u00b0 |
| Cutting Diameter | 9.525mm |
