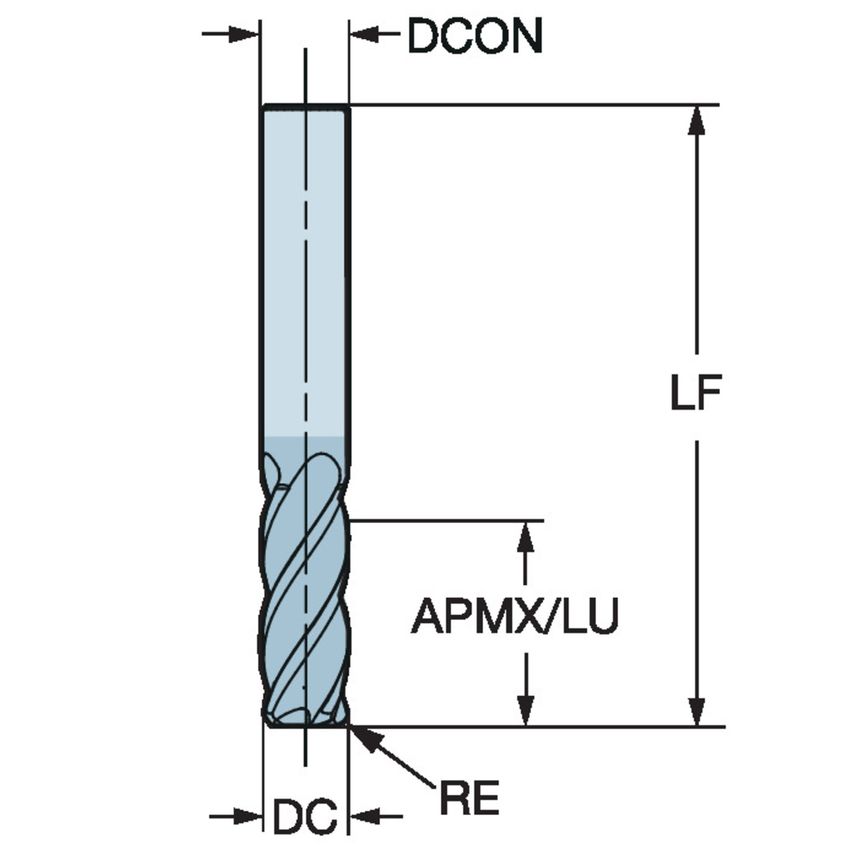

Product Range: CoroMill PluraTool Type: Thread millingSmall diameter shoulder milling with close tolerancesCoroMill Plura is a range of high quality solid carbide end mills that offer productive, efficient, and perfectly reliable milling solutions. Featuring tools for heavy roughing, finishing, and thread milling, CoroMill Plura works in various applications and materials, including difficult-to-cut materials and very hard steels up to 63 HRc.
| Material | Solid Carbide |
| Usable Length | 11.113mm |
| Cutting Diameter | 4.76mm |
| CoroPak | 15.1 |
| Connection Diameter | 4.7625mm |
| Maximum Cutting Depth | 11.11mm |
| Basic Standard Group | Coromant |
| Maximum Depth of Cut | 11.11mm |
| Maximum Ramping Angle | 7\u00b0 |
| MFR Part No. | 6732488 |
| Unit Measured | Imperial |
| Grade | 1730 |
| Coating Process Type | PVD |
| Corner Radius | 0.381mm |
| Center Cutting Capability | Yes |
| Through Hole Function Property | Yes |
| Coolant Entry Style | Without Coolant |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Standards Met | COROMANT |
| Coating Type | AlCrN |
| Rotational Speed Maximum | 80000 1/min |
| Functional Length | 50.8mm |
