Product Range: CoroMill PluraTool Type: Thread millingSmall diameter shoulder milling with close tolerancesCoroMill Plura is a range of high quality solid carbide end mills that offer productive, efficient, and perfectly reliable milling solutions. Featuring tools for heavy roughing, finishing, and thread milling, CoroMill Plura works in various applications and materials, including difficult-to-cut materials and very hard steels up to 63 HRc.

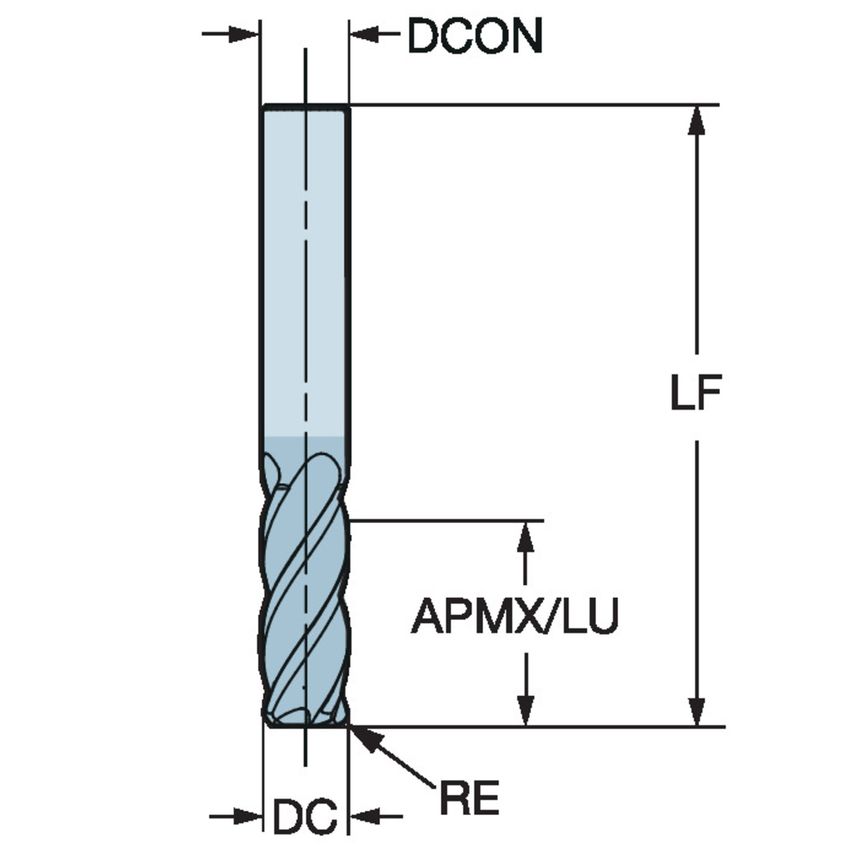

| Connection Diameter | 6.35mm |
| Maximum Cutting Depth | 15.88mm |
| Coating Type | AlCrN |
| Usable Length | 15.875mm |
| CoroPak | 15.1 |
| Rotational Speed Maximum | 80000 1/min |
| Basic Standard Group | Coromant |
| Coating Process Type | PVD |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Maximum Depth of Cut | 15.88mm |
| Center Cutting Capability | Yes |
| Through Hole Function Property | Yes |
| Standards Met | COROMANT |
| Maximum Ramping Angle | 7\u00b0 |
| Cutting Diameter | 6.35mm |
| Functional Length | 63.5mm |
| Coolant Entry Style | Without Coolant |
| MFR Part No. | 6732503 |
| Corner Radius | 0.381mm |
| Grade | 1730 |
| Material | Solid Carbide |
| Unit Measured | Imperial |
