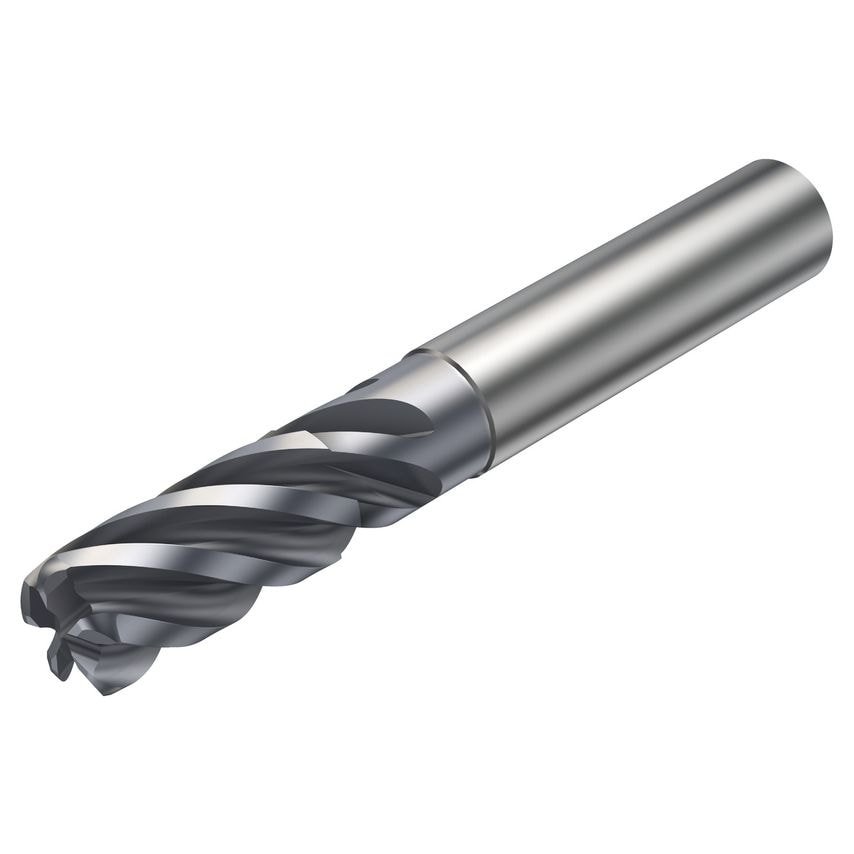

Product Range: CoroMill PluraTool Type: Thread millingSmall diameter shoulder milling with close tolerancesCoroMill Plura is a range of high quality solid carbide end mills that offer productive, efficient, and perfectly reliable milling solutions. Featuring tools for heavy roughing, finishing, and thread milling, CoroMill Plura works in various applications and materials, including difficult-to-cut materials and very hard steels up to 63 HRc.
| Basic Standard Group | Coromant |
| CoroPak | 15.1 |
| Unit Measured | Imperial |
| Corner Radius | 0.381mm |
| Coolant Entry Style | Without Coolant |
| Maximum Cutting Depth | 19.1mm |
| Through Hole Function Property | Yes |
| Cutting Diameter | 7.938mm |
| Rotational Speed Maximum | 80000 1/min |
| Maximum Depth of Cut | 19.1mm |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Center Cutting Capability | No |
| Maximum Ramping Angle | 7\u00b0 |
| Connection Diameter | 7.9375mm |
| Coating Process Type | PVD |
| Standards Met | COROMANT |
| Coating Type | AlCrN |
| Grade | 1730 |
| Material | Solid Carbide |
| Functional Length | 63.5mm |
| MFR Part No. | 6732511 |
| Usable Length | 26.988mm |
