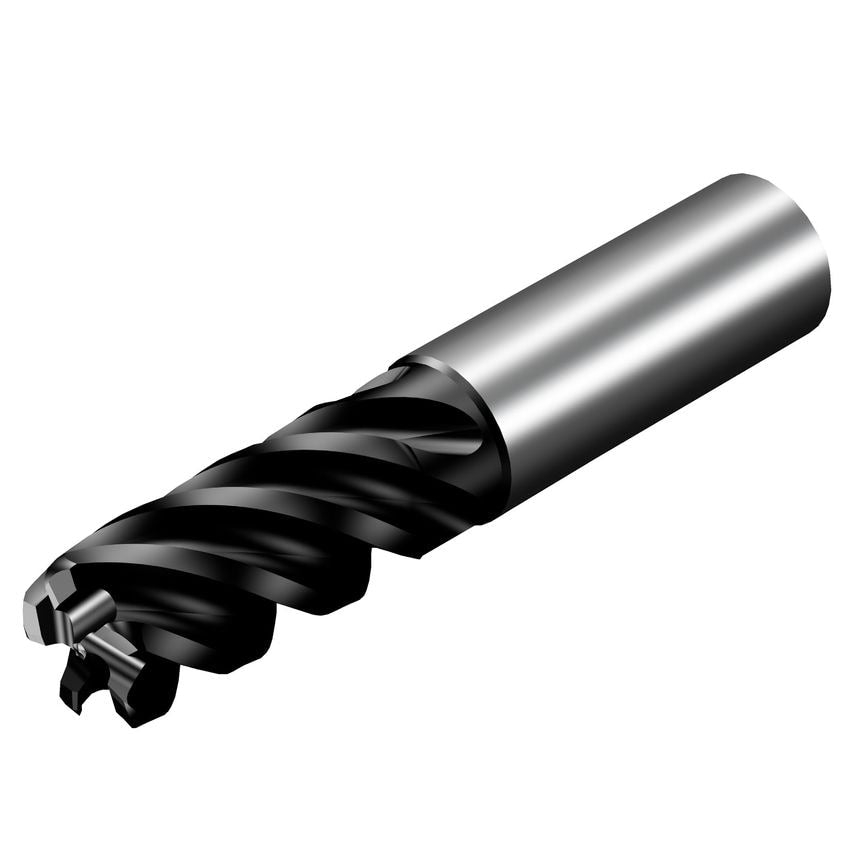

Product Range: CoroMill PluraTool Type: Thread millingSmall diameter shoulder milling with close tolerancesCoroMill Plura is a range of high quality solid carbide end mills that offer productive, efficient, and perfectly reliable milling solutions. Featuring tools for heavy roughing, finishing, and thread milling, CoroMill Plura works in various applications and materials, including difficult-to-cut materials and very hard steels up to 63 HRc.
| CoroPak | 17.2 |
| MFR Part No. | 7419206 |
| Coating Process Type | PVD |
| Material | Solid Carbide |
| Unit Measured | Imperial |
| Coating Type | TiAlSiN |
| Standards Met | COROMANT |
| Product Type | Solid Carbide Endmill |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Maximum Ramping Angle | 5\u00b0 |
| Weight | 240g |
| Corner Radius | 3.048mm |
| Basic Standard Group | Coromant |
| Functional Length | 88.9mm |
| Through Hole Function Property | Yes |
| Shank Type | Cylindrical |
| Maximum Depth of Cut | 33.34mm |
| Coolant Entry Style | Without Coolant |
| Connection Diameter | 25.4mm |
| Usable Length | 39.69mm |
| Maximum Cutting Depth | 33.34mm |
| Grade | 1745 |
| Cutting Diameter | 15.875mm |
| Rotational Speed Maximum | 22800 1/min |
| Center Cutting Capability | No |
