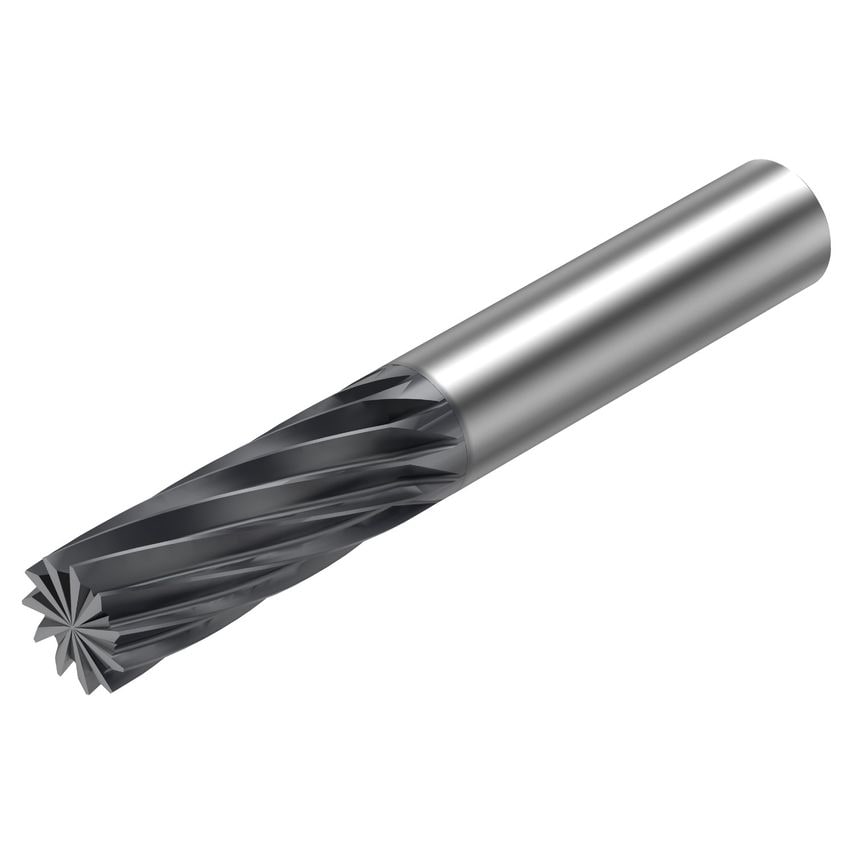

Product Range: CoroMill PluraTool Type: Thread millingSmall diameter shoulder milling with close tolerancesCoroMill Plura is a range of high quality solid carbide end mills that offer productive, efficient, and perfectly reliable milling solutions. Featuring tools for heavy roughing, finishing, and thread milling, CoroMill Plura works in various applications and materials, including difficult-to-cut materials and very hard steels up to 63 HRc.
| Unit Measured | Imperial |
| CoroPak | 17.1 |
| Coolant Entry Style | Without Coolant |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Coating Process Type | DCT |
| Center Cutting Capability | Yes |
| Functional Length | 63.5mm |
| Corner Radius | 0mm |
| Maximum Ramping Angle | 5\u00b0 |
| Through Hole Function Property | Yes |
| Connection Diameter | 7.9375mm |
| Maximum Depth of Cut | 19.1mm |
| Grade | O10A |
| Cutting Diameter | 7.938mm |
| MFR Part No. | 7254421 |
| Rotational Speed Maximum | 24000 1/min |
| Maximum Cutting Depth | 19.1mm |
| Coating Type | Sp3 |
