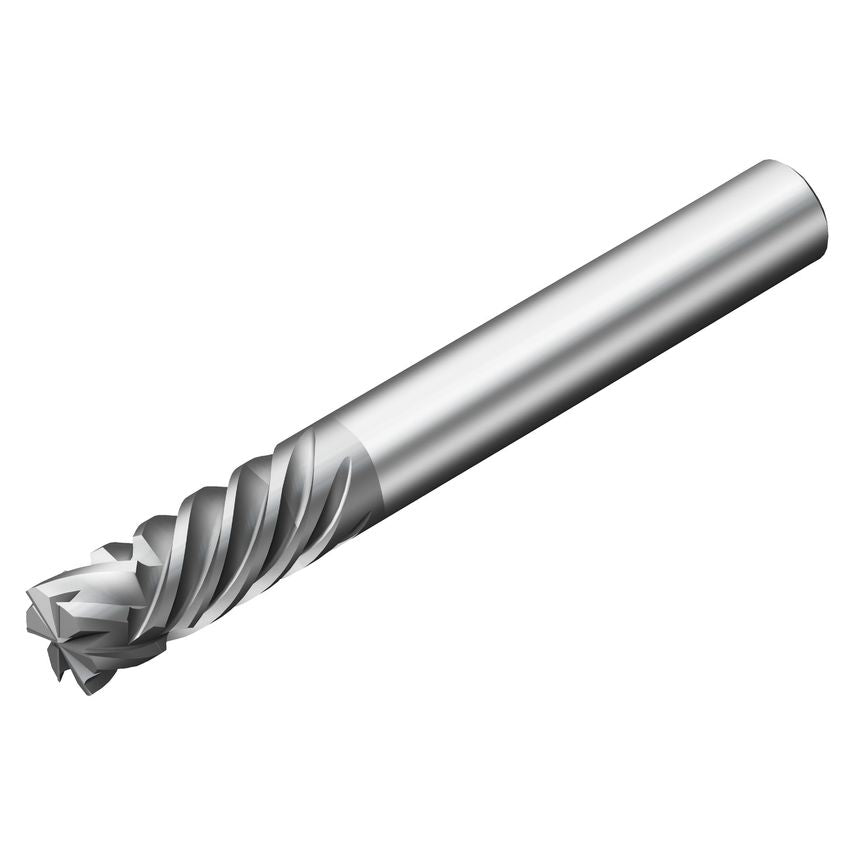

Product Range: CoroMill PluraTool Type: Thread millingSmall diameter shoulder milling with close tolerancesCoroMill Plura is a range of high quality solid carbide end mills that offer productive, efficient, and perfectly reliable milling solutions. Featuring tools for heavy roughing, finishing, and thread milling, CoroMill Plura works in various applications and materials, including difficult-to-cut materials and very hard steels up to 63 HRc.
| Coating Type | Sp3 |
| Coolant Entry Style | Without Coolant |
| Unit Measured | Imperial |
| Center Cutting Capability | Yes |

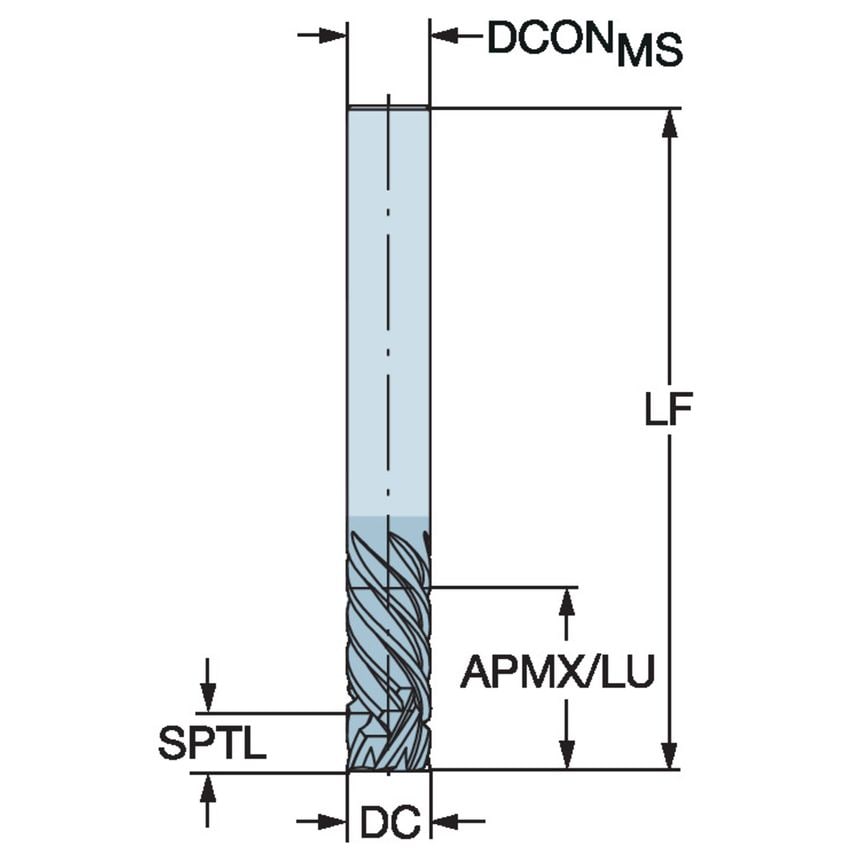

| Cutting Diameter | 9.525mm |
| CoroPak | 17.1 |
| Corner Radius | 0mm |
| Maximum Ramping Angle | 5\u00b0 |
| Functional Length | 76.2mm |
| MFR Part No. | 7254412 |
| Connection Diameter | 9.525mm |
| Through Hole Function Property | Yes |
| Maximum Cutting Depth | 28.5mm |
| Rotational Speed Maximum | 24000 1/min |
| Coating Process Type | DCT |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Grade | O10m |
| Maximum Depth of Cut | 28.5mm |
