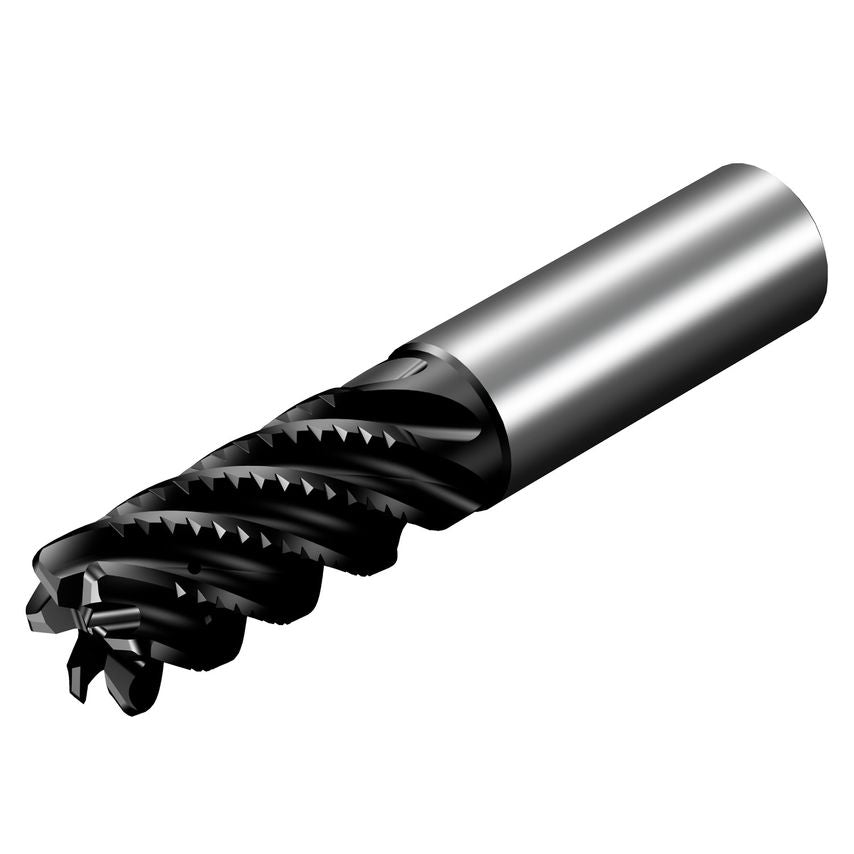

Product Range: CoroMill PluraTool Type: Thread millingSmall diameter shoulder milling with close tolerancesCoroMill Plura is a range of high quality solid carbide end mills that offer productive, efficient, and perfectly reliable milling solutions. Featuring tools for heavy roughing, finishing, and thread milling, CoroMill Plura works in various applications and materials, including difficult-to-cut materials and very hard steels up to 63 HRc.

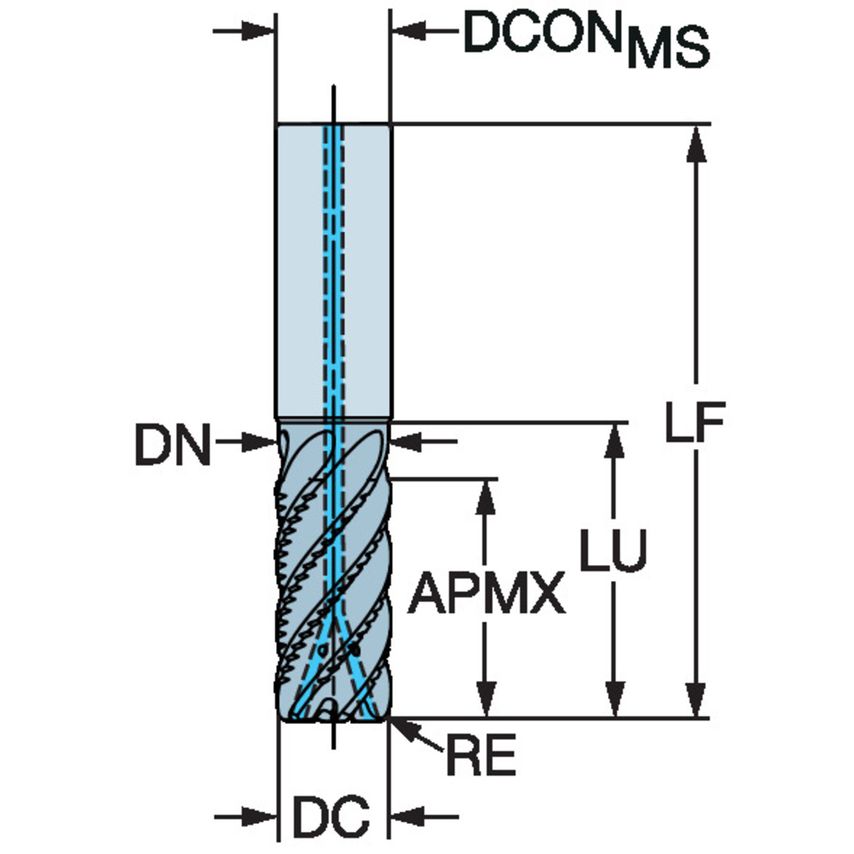

| Corner Radius | 1mm |
| Functional Length | 83mm |
| Grade | 1745 |
| Basic Standard Group | Coromant |
| Maximum Depth of Cut | 26mm |
| Cutting Diameter | 12mm |
| Usable Length | 36mm |
| Rotational Speed Maximum | 80000 1/min |
| Maximum Cutting Depth | 26mm |
| Center Cutting Capability | No |
| Product Type | Solid Carbide Endmill |
| Coating Process Type | PVD |
| MFR Part No. | 7419221 |
| Coating Type | TiAlSiN |
| Material | Solid Carbide |
| Standards Met | COROMANT |
| Unit Measured | Metric |
| ISO Cutting Tool Material | Coated WC or Cermet |
| CoroPak | 17.2 |
| Connection Diameter | 12mm |
| Coolant Entry Style | 1 |
| Through Hole Function Property | Yes |
| Shank Type | Cylindrical |
| Weight | 114.2g |
| Maximum Ramping Angle | 5\u00b0 |
