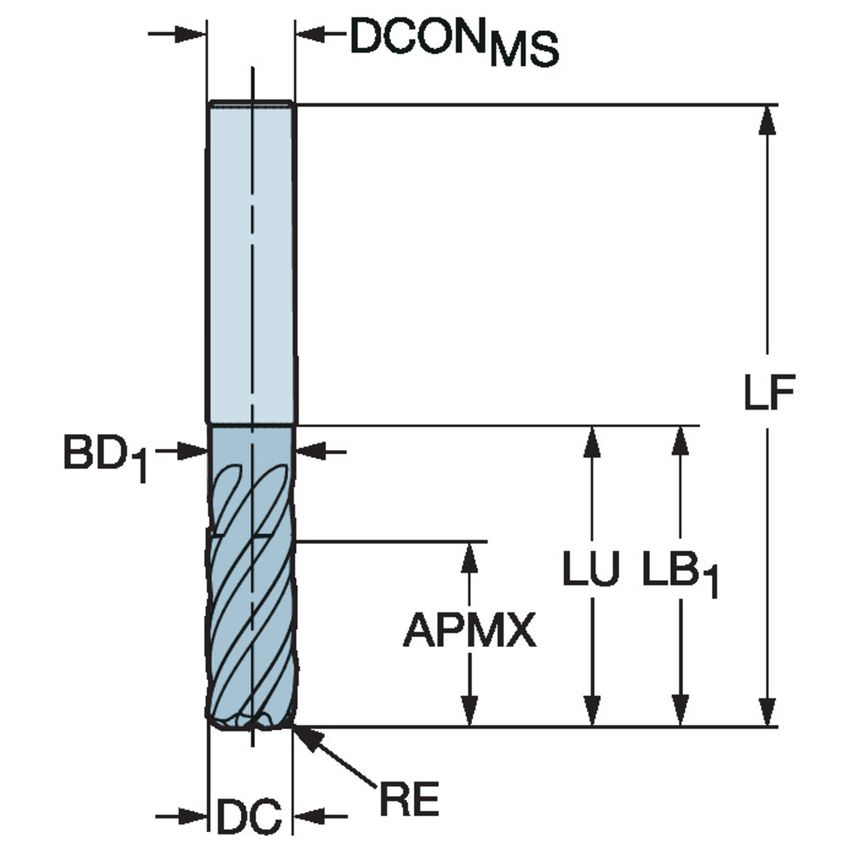

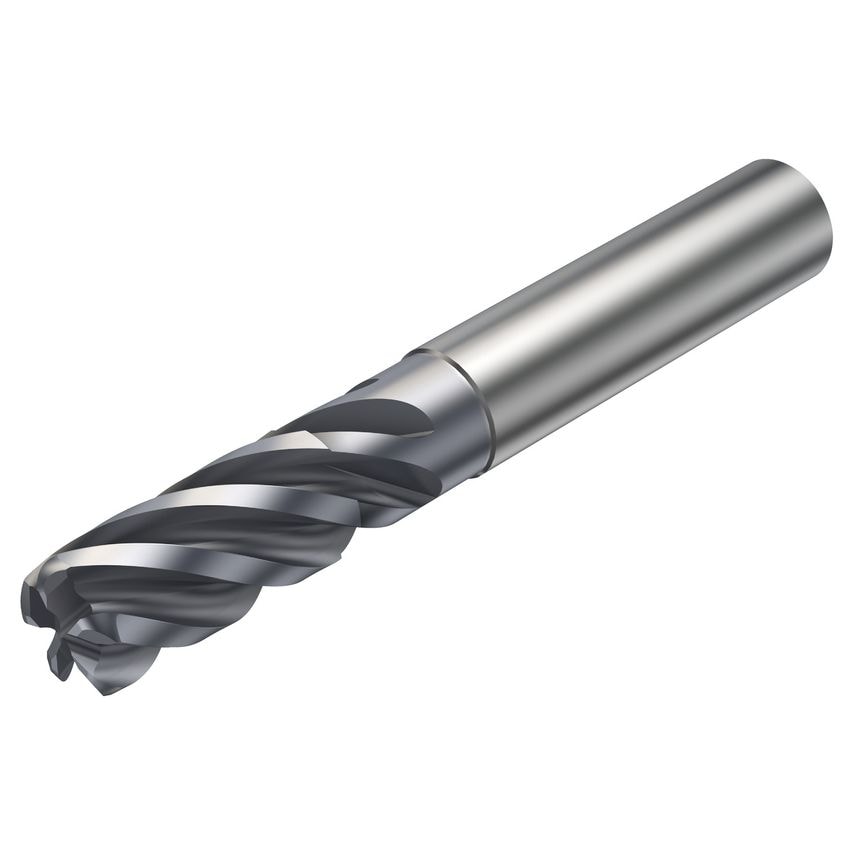

Product Range: CoroMill PluraTool Type: Thread millingSmall diameter shoulder milling with close tolerancesCoroMill Plura is a range of high quality solid carbide end mills that offer productive, efficient, and perfectly reliable milling solutions. Featuring tools for heavy roughing, finishing, and thread milling, CoroMill Plura works in various applications and materials, including difficult-to-cut materials and very hard steels up to 63 HRc.
| Center Cutting Capability | No |
| Maximum Ramping Angle | 7\u00b0 |
| Connection Diameter | 7.9375mm |
| Cutting Diameter | 7.938mm |
| Standards Met | COROMANT |
| Usable Length | 26.988mm |
| Material | Solid Carbide |
| Corner Radius | 0.762mm |
| Grade | 1730 |
| Basic Standard Group | Coromant |
| Maximum Cutting Depth | 19.1mm |
| Coating Type | AlCrN |
| Rotational Speed Maximum | 80000 1/min |
| Maximum Depth of Cut | 19.1mm |
| Coolant Entry Style | Without Coolant |
| Functional Length | 63.5mm |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Coating Process Type | PVD |
| Through Hole Function Property | Yes |
| Unit Measured | Imperial |
| CoroPak | 15.1 |
| MFR Part No. | 6732515 |
