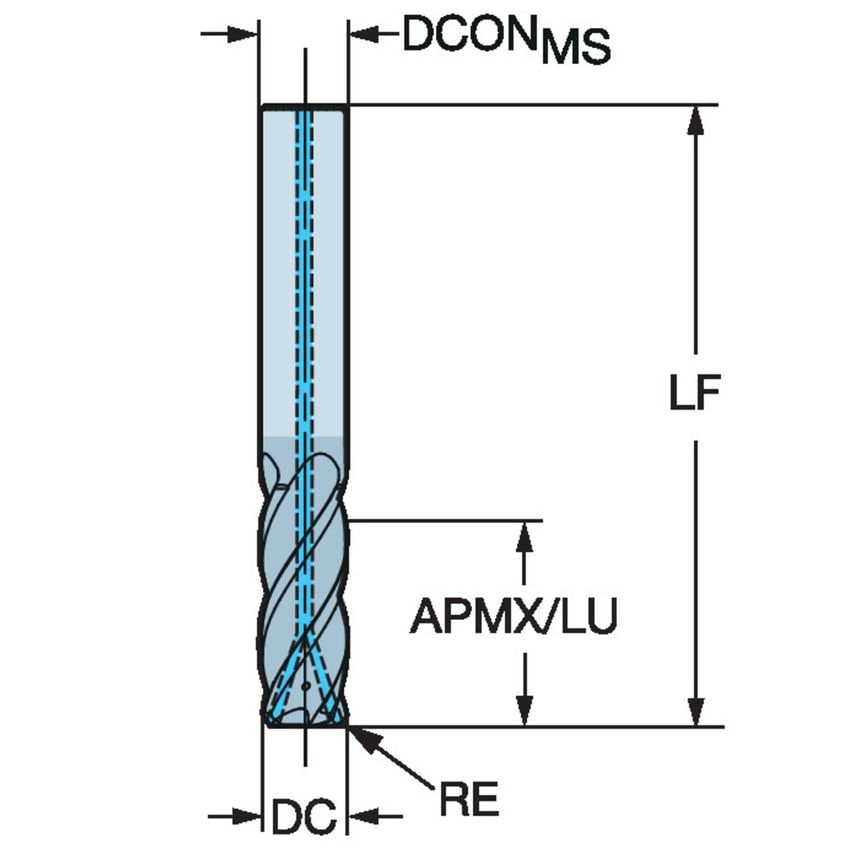

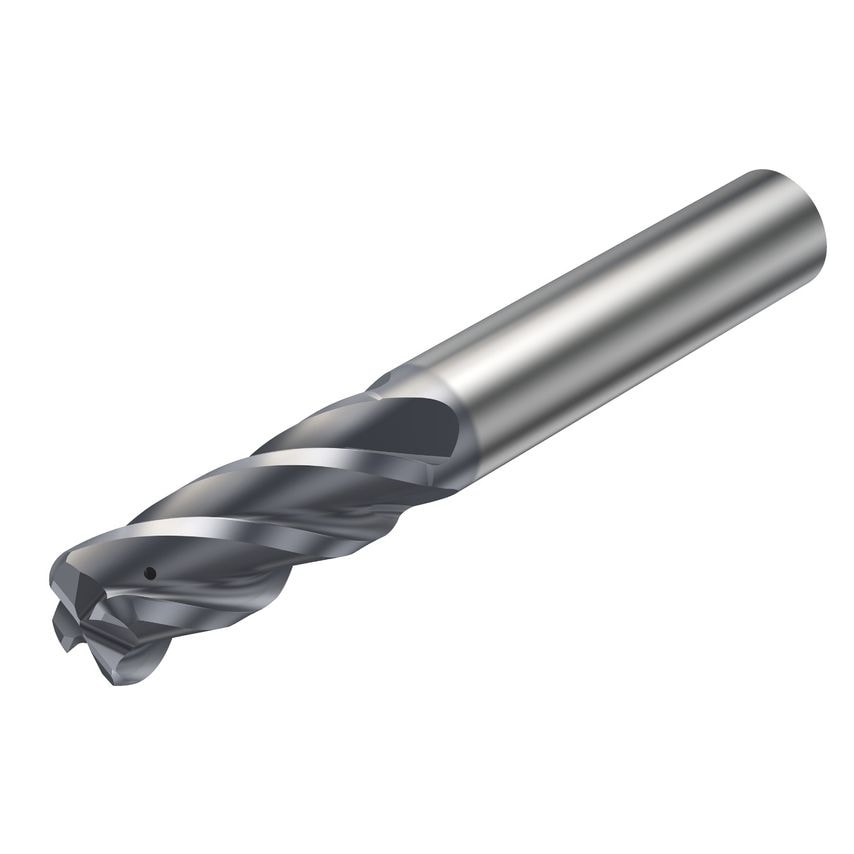

Product Range: CoroMill PluraTool Type: Thread millingSmall diameter shoulder milling with close tolerancesCoroMill Plura is a range of high quality solid carbide end mills that offer productive, efficient, and perfectly reliable milling solutions. Featuring tools for heavy roughing, finishing, and thread milling, CoroMill Plura works in various applications and materials, including difficult-to-cut materials and very hard steels up to 63 HRc.
| Grade | 1740 |
| Coating Process Type | PVD |
| CoroPak | 15.1 |
| Coolant Entry Style | 1 |
| Rotational Speed Maximum | 80000 1/min |
| Through Hole Function Property | Yes |
| Maximum Depth of Cut | 22.23mm |
| Basic Standard Group | Coromant |
| Maximum Ramping Angle | 5\u00b0 |
| Material | Solid Carbide |
| MFR Part No. | 6732534 |
| Connection Diameter | 28.8mm |
| Functional Length | 63.5mm |
| Usable Length | 22.225mm |
| Corner Radius | 0.381mm |
| Standards Met | COROMANT |
| Unit Measured | Imperial |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Coating Type | AlTiN |
| Maximum Cutting Depth | 22.23mm |
| Center Cutting Capability | Yes |
| Cutting Diameter | 9.525mm |
