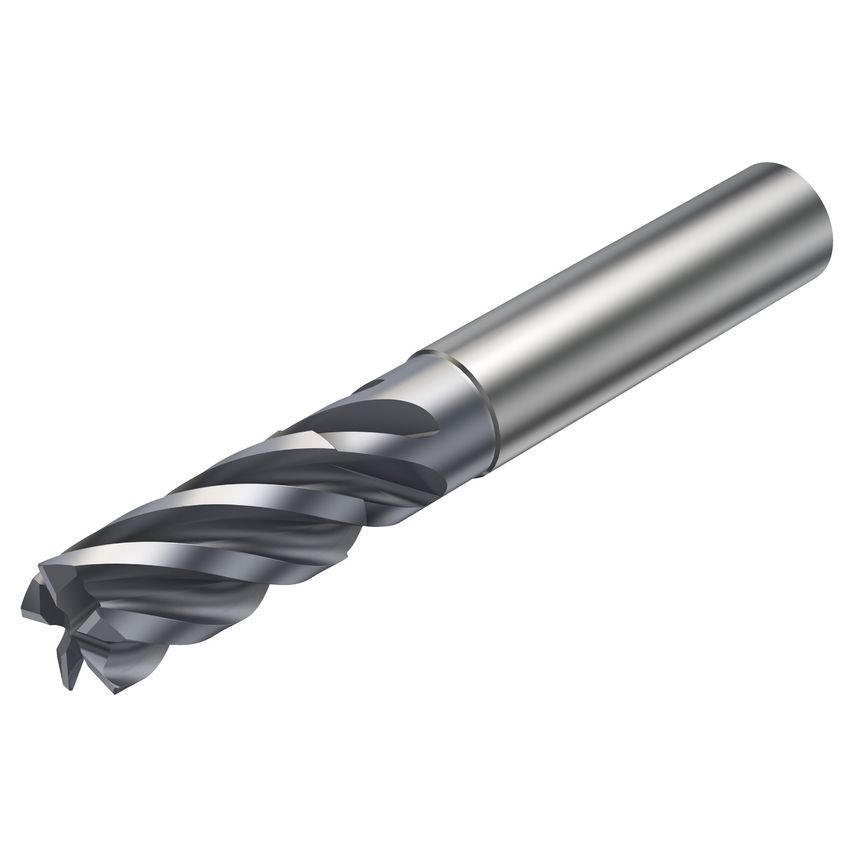

Product Range: CoroMill PluraTool Type: Thread millingSmall diameter shoulder milling with close tolerancesCoroMill Plura is a range of high quality solid carbide end mills that offer productive, efficient, and perfectly reliable milling solutions. Featuring tools for heavy roughing, finishing, and thread milling, CoroMill Plura works in various applications and materials, including difficult-to-cut materials and very hard steels up to 63 HRc.

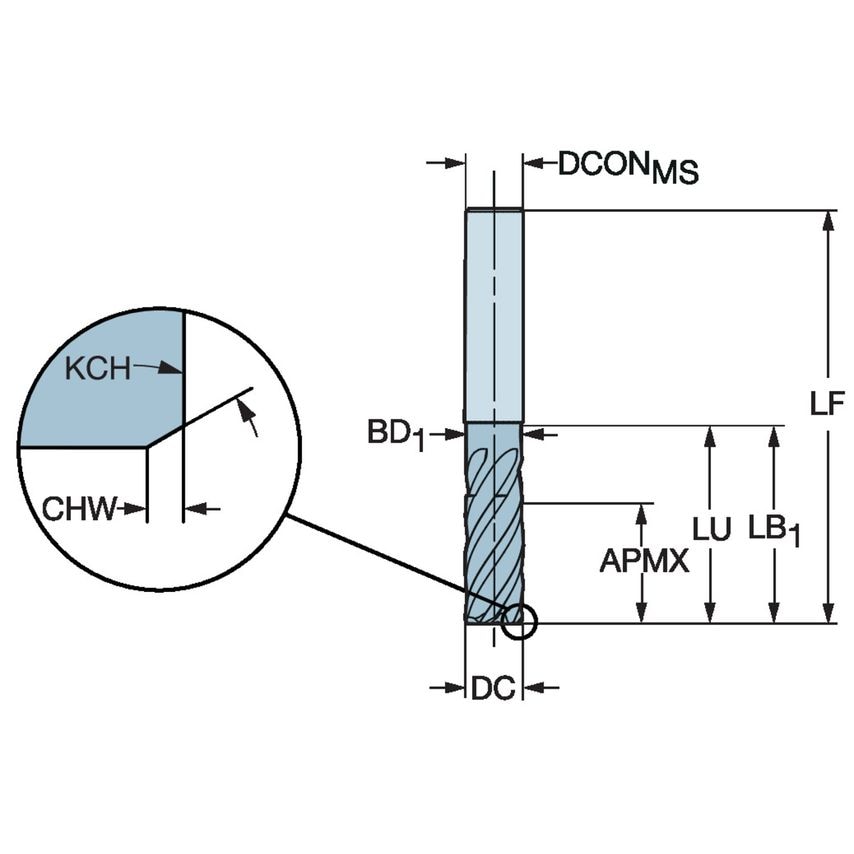

| ISO Cutting Tool Material | Coated WC or Cermet |
| Through Hole Function Property | Yes |
| Connection Diameter | 38.1mm |
| Coating Process Type | PVD |
| Standards Met | COROMANT |
| Usable Length | 31.75mm |
| Cutting Diameter | 9.525mm |
| Basic Standard Group | Coromant |
| Grade | 1730 |
| Maximum Depth of Cut | 22.3mm |
| Maximum Ramping Angle | 7\u00b0 |
| CoroPak | 15.1 |
| Unit Measured | Imperial |
| Weight | 74.5g |
| Center Cutting Capability | No |
| MFR Part No. | 6732539 |
| Material | Carbide |
| Rotational Speed Maximum | 55900 1/min |
| Maximum Cutting Depth | 22.3mm |
| Coolant Entry Style | Without Coolant |
| Functional Length | 76.2mm |
| Coating Type | AlCrN |
