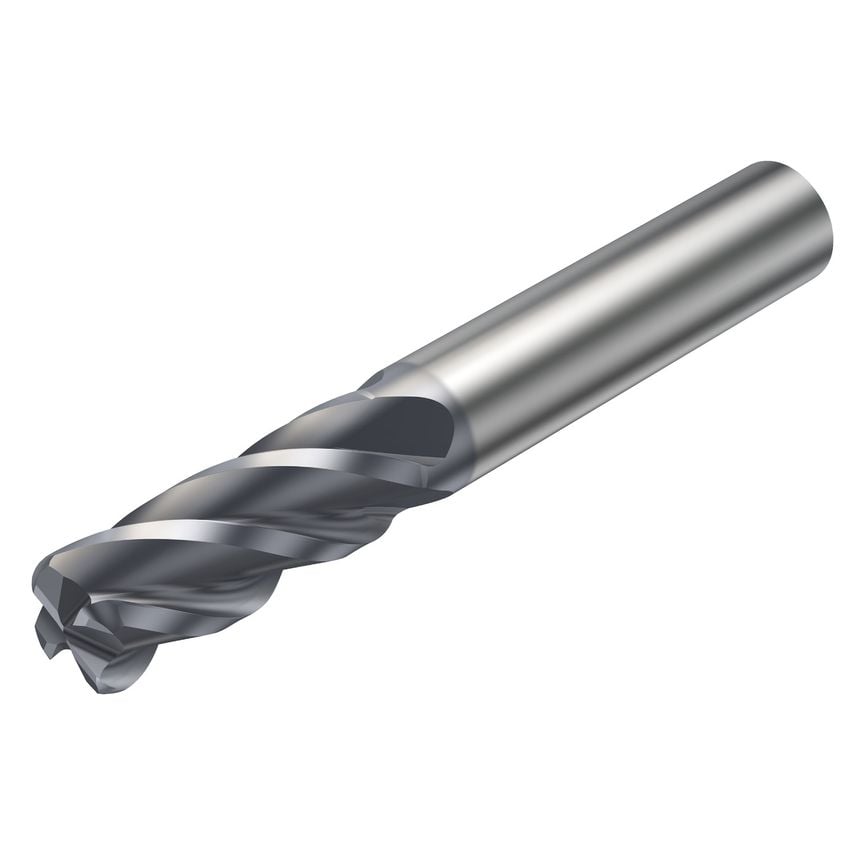

Product Range: CoroMill PluraTool Type: Thread millingSmall diameter shoulder milling with close tolerancesCoroMill Plura is a range of high quality solid carbide end mills that offer productive, efficient, and perfectly reliable milling solutions. Featuring tools for heavy roughing, finishing, and thread milling, CoroMill Plura works in various applications and materials, including difficult-to-cut materials and very hard steels up to 63 HRc.

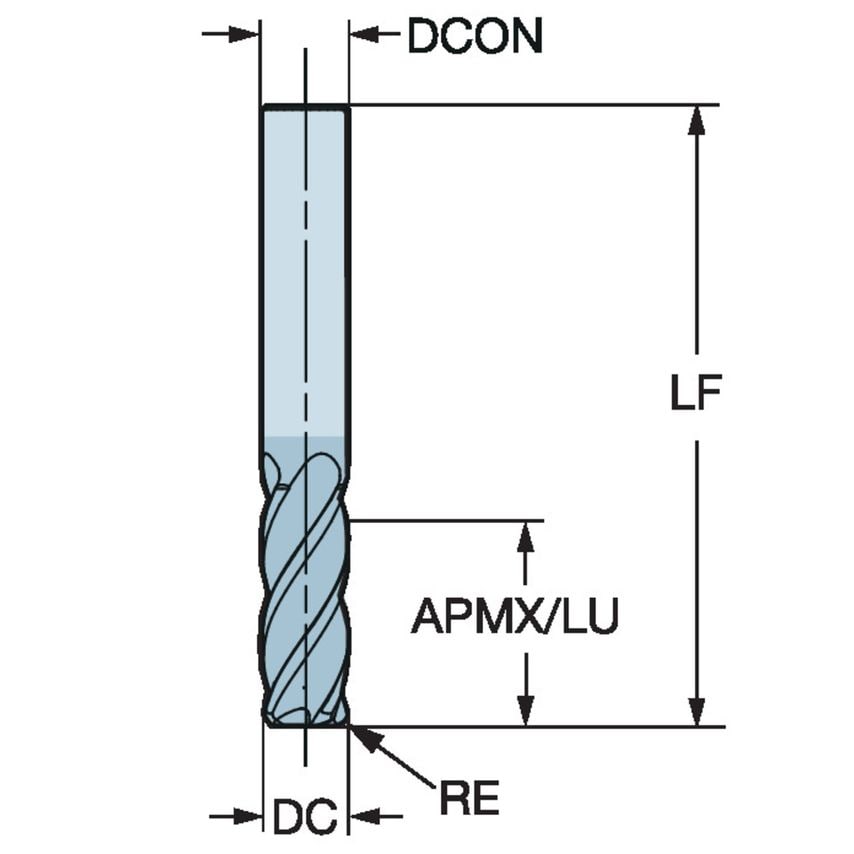

| Grade | 1730 |
| Functional Length | 63.5mm |
| Rotational Speed Maximum | 80000 1/min |
| Cutting Diameter | 9.525mm |
| Usable Length | 22.225mm |
| Connection Diameter | 9.525mm |
| Center Cutting Capability | Yes |
| MFR Part No. | 6732533 |
| Through Hole Function Property | Yes |
| Coating Type | AlCrN |
| Maximum Cutting Depth | 22.23mm |
| Maximum Ramping Angle | 7\u00b0 |
| Material | Solid Carbide |
| CoroPak | 15.1 |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Corner Radius | 0.381mm |
| Basic Standard Group | Coromant |
| Maximum Depth of Cut | 22.23mm |
| Coating Process Type | PVD |
| Unit Measured | Imperial |
| Standards Met | COROMANT |
| Coolant Entry Style | Without Coolant |
