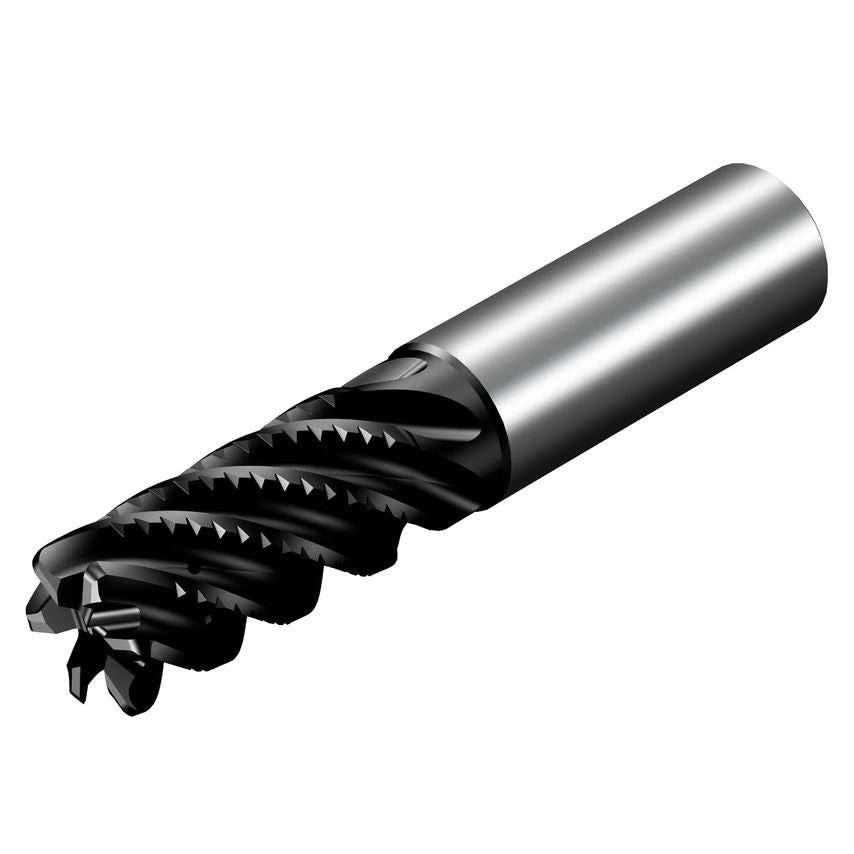

Product Range: CoroMill PluraTool Type: Thread millingSmall diameter shoulder milling with close tolerancesCoroMill Plura is a range of high quality solid carbide end mills that offer productive, efficient, and perfectly reliable milling solutions. Featuring tools for heavy roughing, finishing, and thread milling, CoroMill Plura works in various applications and materials, including difficult-to-cut materials and very hard steels up to 63 HRc.
| MFR Part No. | 7419223 |
| Grade | 1745 |
| Usable Length | 42mm |
| Basic Standard Group | Coromant |
| Connection Diameter | 50mm |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Maximum Depth of Cut | 34mm |
| Rotational Speed Maximum | 22800 1/min |
| Coating Type | TiAlSiN |
| Shank Type | Cylindrical |
| Through Hole Function Property | Yes |
| Material | Solid Carbide |
| Weight | 221.5g |
| Unit Measured | Metric |
| Maximum Ramping Angle | 5\u00b0 |
| Maximum Cutting Depth | 34mm |
| CoroPak | 17.2 |
| Cutting Diameter | 16mm |
| Coating Process Type | PVD |
| Coolant Entry Style | 1 |
| Functional Length | 92mm |
| Standards Met | COROMANT |
| Center Cutting Capability | No |
| Corner Radius | 2mm |
| Product Type | Solid Carbide Endmill |
