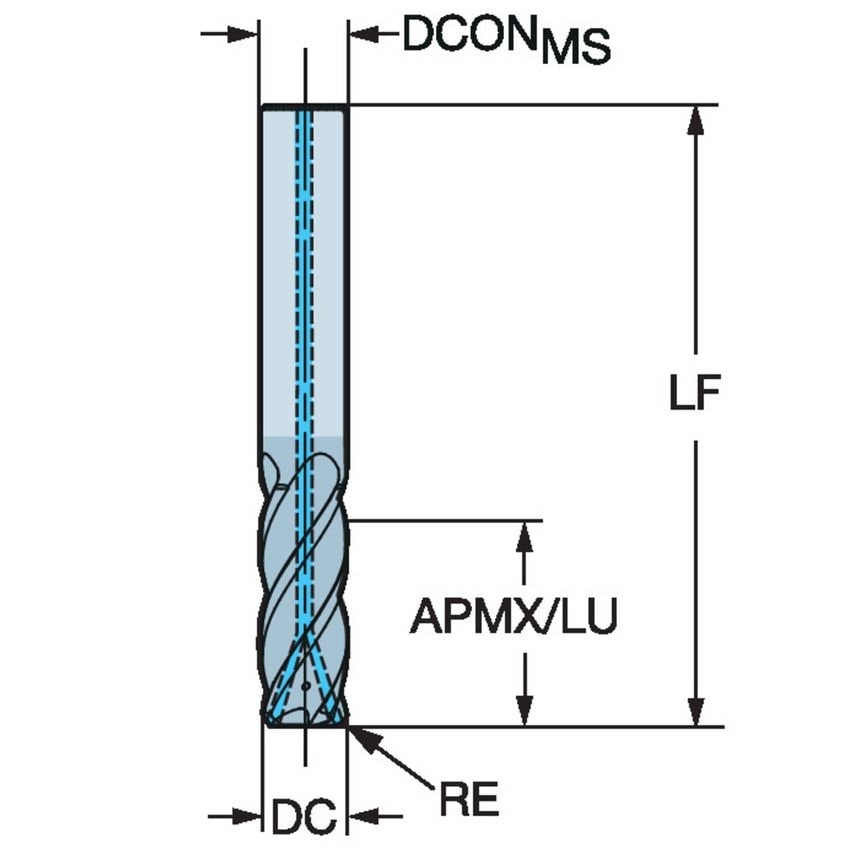

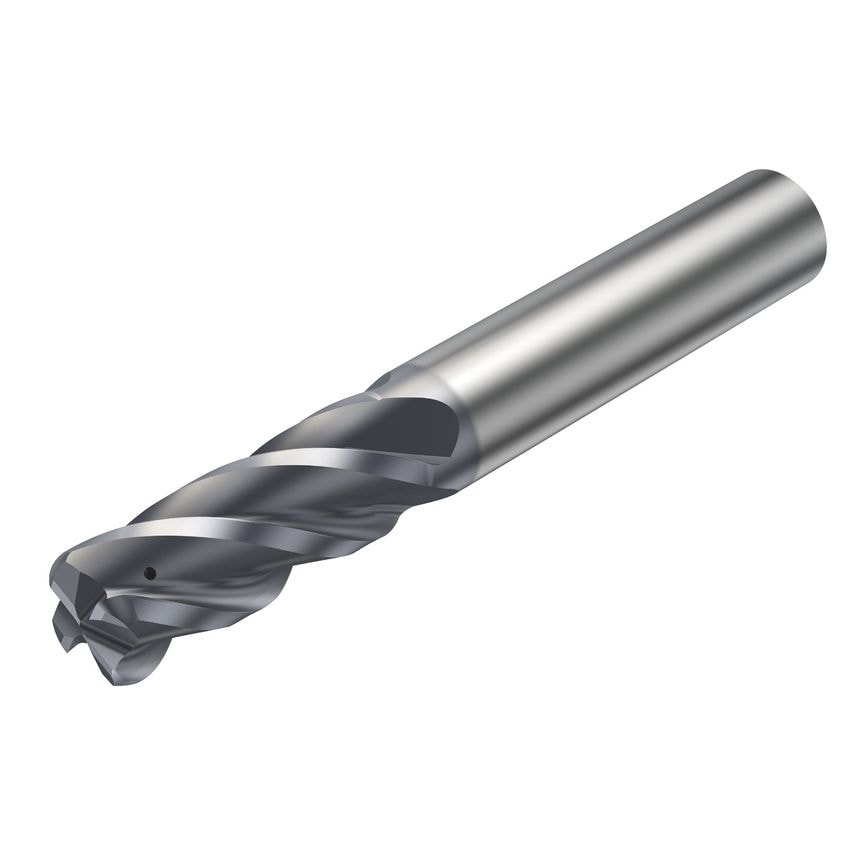

Product Range: CoroMill PluraTool Type: Thread millingSmall diameter shoulder milling with close tolerancesCoroMill Plura is a range of high quality solid carbide end mills that offer productive, efficient, and perfectly reliable milling solutions. Featuring tools for heavy roughing, finishing, and thread milling, CoroMill Plura works in various applications and materials, including difficult-to-cut materials and very hard steels up to 63 HRc.
| Coating Type | AlTiN |
| Material | Solid Carbide |
| Standards Met | COROMANT |
| Coating Process Type | PVD |
| Center Cutting Capability | Yes |
| Cutting Diameter | 9.525mm |
| MFR Part No. | 6732538 |
| Basic Standard Group | Coromant |
| Usable Length | 22.225mm |
| Maximum Depth of Cut | 22.23mm |
| Corner Radius | 1.524mm |
| Rotational Speed Maximum | 80000 1/min |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Grade | 1740 |
| Through Hole Function Property | Yes |
| Connection Diameter | 9.525mm |
| Unit Measured | Imperial |
| Coolant Entry Style | 1 |
| CoroPak | 15.1 |
| Functional Length | 63.5mm |
| Maximum Ramping Angle | 5\u00b0 |
| Maximum Cutting Depth | 22.23mm |
