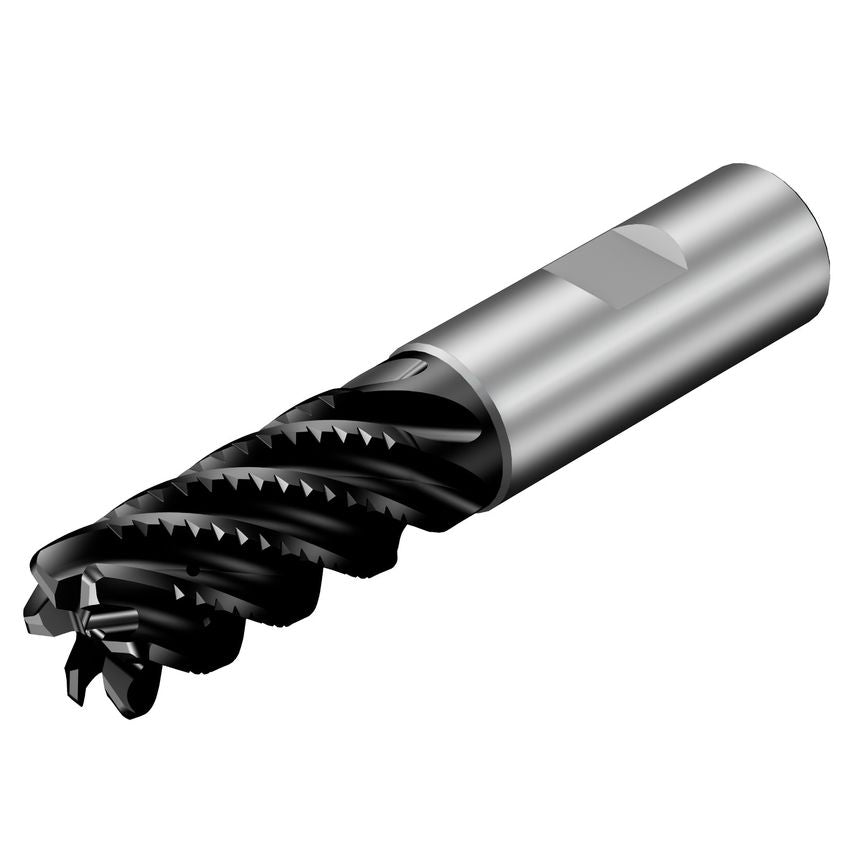

Product Range: CoroMill PluraTool Type: Thread millingSmall diameter shoulder milling with close tolerancesCoroMill Plura is a range of high quality solid carbide end mills that offer productive, efficient, and perfectly reliable milling solutions. Featuring tools for heavy roughing, finishing, and thread milling, CoroMill Plura works in various applications and materials, including difficult-to-cut materials and very hard steels up to 63 HRc.
| Basic Standard Group | Coromant |
| Coolant Entry Style | 1 |
| Connection Diameter | 50mm |
| Center Cutting Capability | No |
| Grade | 1745 |
| Material | Solid Carbide |
| Unit Measured | Metric |
| Weight | 218g |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Through Hole Function Property | Yes |
| Maximum Depth of Cut | 34mm |
| Rotational Speed Maximum | 22800 1/min |
| Maximum Cutting Depth | 34mm |
| Maximum Ramping Angle | 5\u00b0 |
| Functional Length | 92mm |
| Cutting Diameter | 16mm |
| Corner Radius | 2mm |
| Product Type | Solid Carbide Endmill |
| Standards Met | COROMANT |
| CoroPak | 17.2 |
| Shank Type | Weldon |
| Coating Type | TiAlSiN |
| Coating Process Type | PVD |
| Usable Length | 42mm |
| MFR Part No. | 7419228 |
