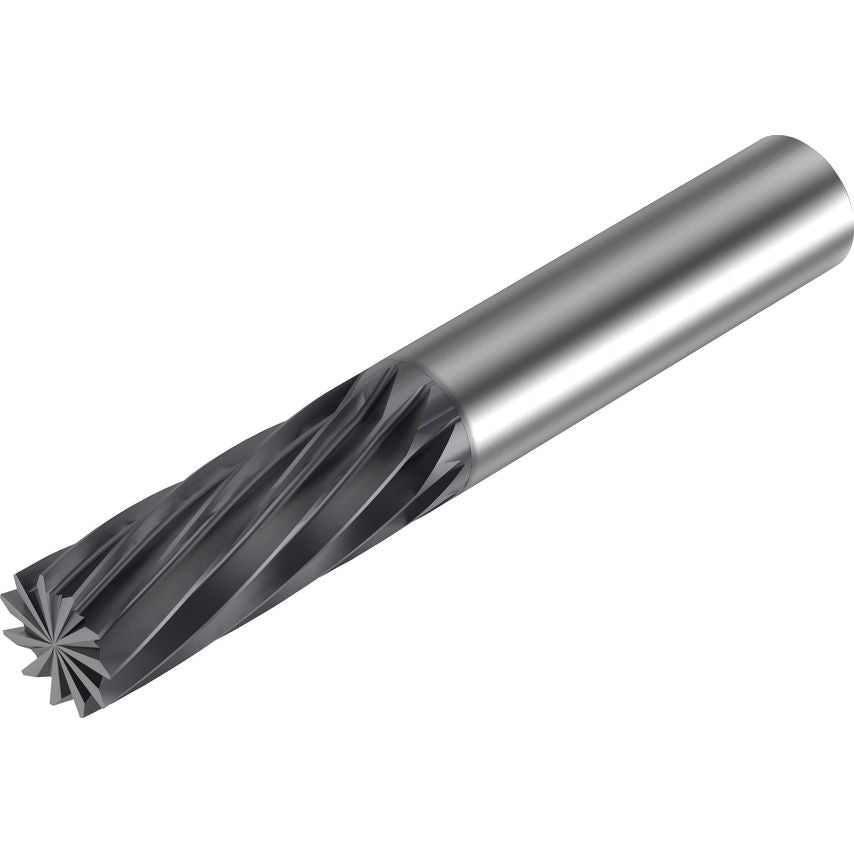

Product Range: CoroMill PluraTool Type: Thread millingSmall diameter shoulder milling with close tolerancesCoroMill Plura is a range of high quality solid carbide end mills that offer productive, efficient, and perfectly reliable milling solutions. Featuring tools for heavy roughing, finishing, and thread milling, CoroMill Plura works in various applications and materials, including difficult-to-cut materials and very hard steels up to 63 HRc.
| Coating Process Type | DCT |

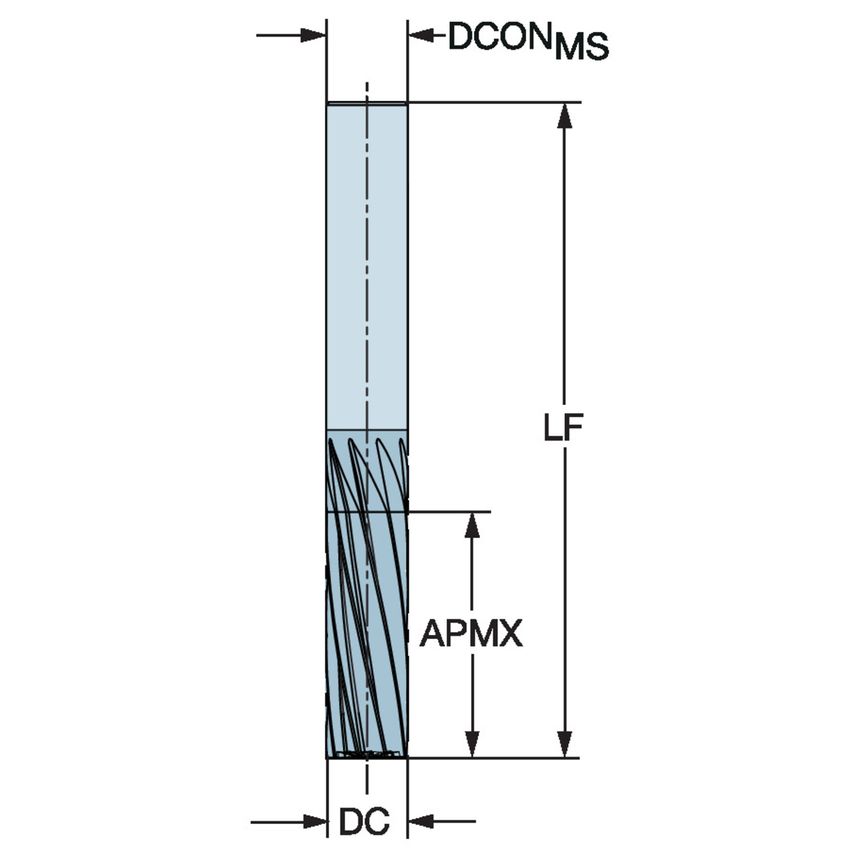

| Functional Length | 76.2mm |
| Maximum Depth of Cut | 28.5mm |
| Maximum Cutting Depth | 28.5mm |
| Maximum Ramping Angle | 5\u00b0 |
| Through Hole Function Property | Yes |
| CoroPak | 17.1 |
| Unit Measured | Imperial |
| Grade | O10A |
| Cutting Diameter | 9.525mm |
| Rotational Speed Maximum | 24000 1/min |
| Coolant Entry Style | Without Coolant |
| Connection Diameter | 9.525mm |
| Corner Radius | 0mm |
| Coating Type | Sp3 |
| Center Cutting Capability | Yes |
| ISO Cutting Tool Material | Coated WC or Cermet |
| MFR Part No. | 7254432 |
