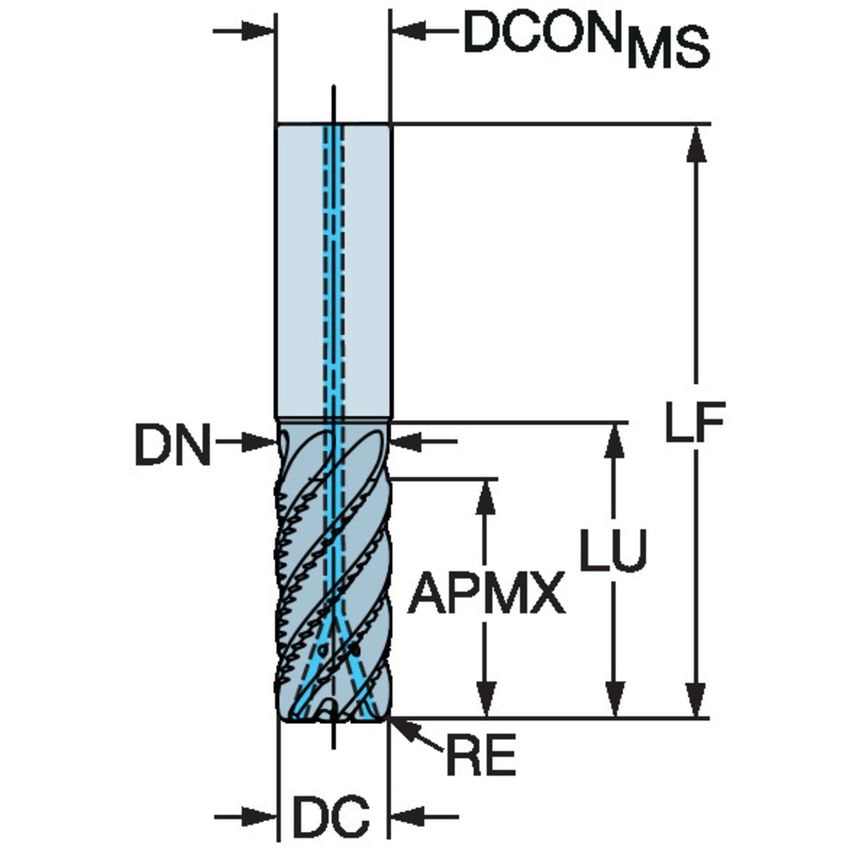

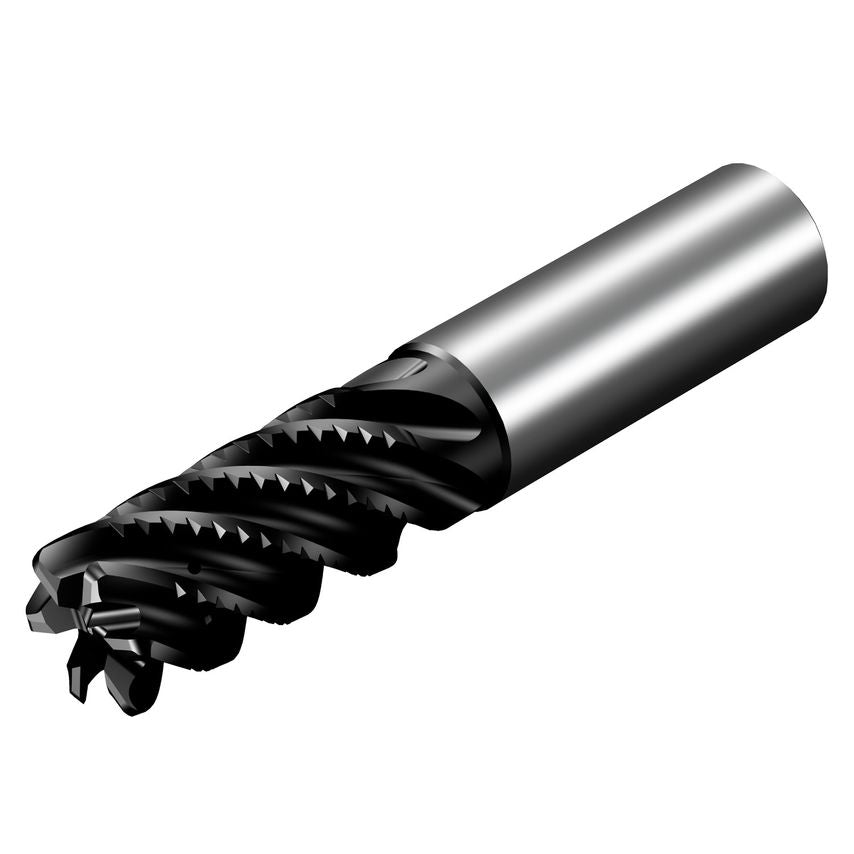

Product Range: CoroMill PluraTool Type: Thread millingSmall diameter shoulder milling with close tolerancesCoroMill Plura is a range of high quality solid carbide end mills that offer productive, efficient, and perfectly reliable milling solutions. Featuring tools for heavy roughing, finishing, and thread milling, CoroMill Plura works in various applications and materials, including difficult-to-cut materials and very hard steels up to 63 HRc.
| Maximum Ramping Angle | 5\u00b0 |
| Coating Type | TiAlSiN |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Maximum Cutting Depth | 28.57mm |
| Coolant Entry Style | 1 |
| Product Type | Solid Carbide Endmill |
| Weight | 126g |
| Shank Type | Cylindrical |
| Maximum Depth of Cut | 28.57mm |
| Connection Diameter | 11mm |
| Cutting Diameter | 12.7mm |
| Through Hole Function Property | Yes |
| Coating Process Type | PVD |
| Grade | 1745 |
| Standards Met | COROMANT |
| Usable Length | 36.513mm |
| Material | Solid Carbide |
| Basic Standard Group | Coromant |
| CoroPak | 17.2 |
| MFR Part No. | 7419241 |
| Rotational Speed Maximum | 48.2 1/min |
| Unit Measured | Imperial |
| Center Cutting Capability | No |
| Corner Radius | 2.286mm |
| Functional Length | 88.9mm |
