Product Range: CoroMill PluraTool Type: Thread millingSmall diameter shoulder milling with close tolerancesCoroMill Plura is a range of high quality solid carbide end mills that offer productive, efficient, and perfectly reliable milling solutions. Featuring tools for heavy roughing, finishing, and thread milling, CoroMill Plura works in various applications and materials, including difficult-to-cut materials and very hard steels up to 63 HRc.

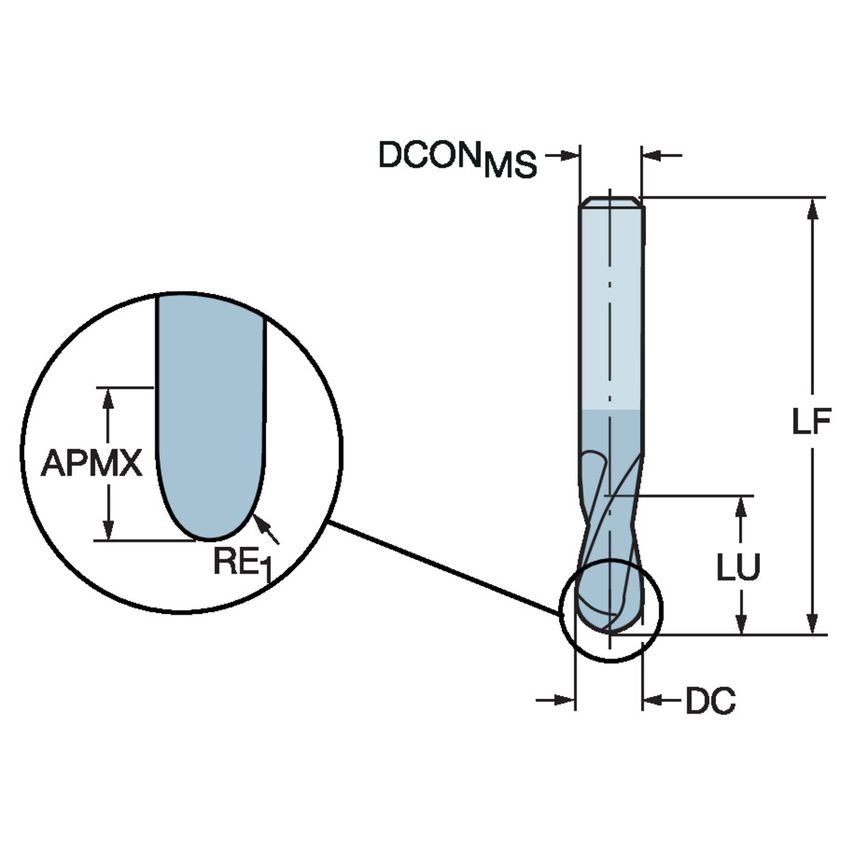

| Grade | 1620 |
| Usable Length | 4.763mm |
| Coating Type | TiAlN |
| Cutting Diameter | 11mm |
| Coating Process Type | PVD |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Basic Standard Group | Coromant |
| CoroPak | 253.68 |
| Body Half Taper Angle | 30\u00b0 |
| Unit Measured | Imperial |
| Through Hole Function Property | Yes |
| Coolant Entry Style | Without Coolant |
| Connection Diameter | 10mm |
| Corner Radius | 1.19mm |
| Maximum Ramping Angle | 15\u00b0 |
| Functional Length | 25mm |
| Rotational Speed Maximum | 80000 1/min |
| MFR Part No. | 6334787 |
