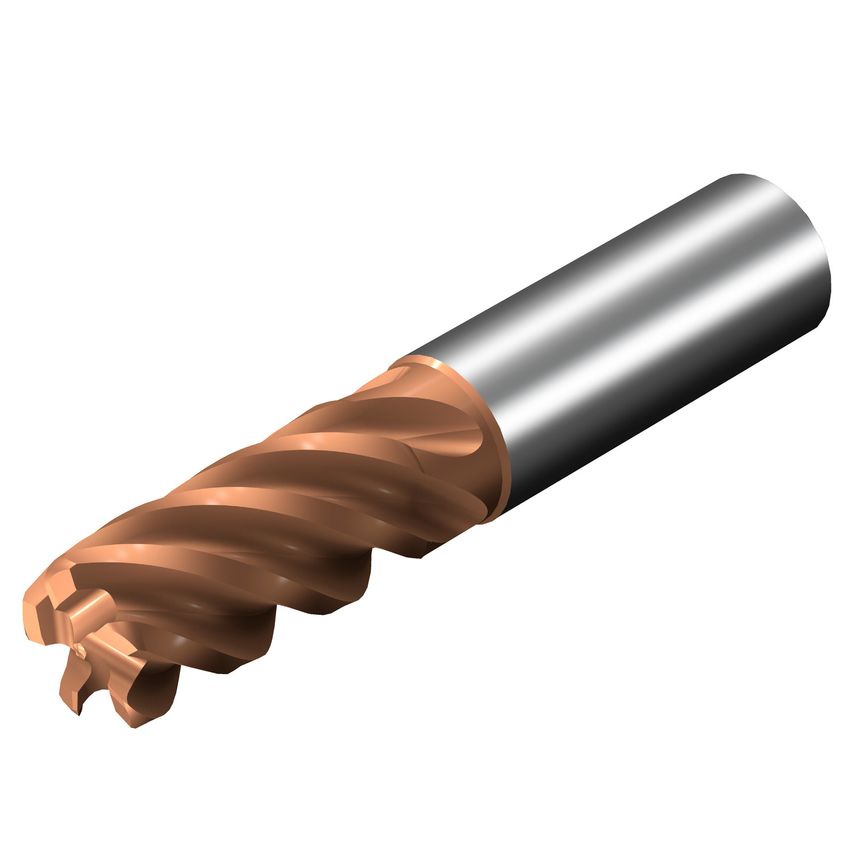

Product Range: CoroMill PluraTool Type: Thread millingSmall diameter shoulder milling with close tolerancesCoroMill Plura is a range of high quality solid carbide end mills that offer productive, efficient, and perfectly reliable milling solutions. Featuring tools for heavy roughing, finishing, and thread milling, CoroMill Plura works in various applications and materials, including difficult-to-cut materials and very hard steels up to 63 HRc.
| Through Hole Function Property | Yes |
| Usable Length | 36mm |
| Maximum Depth of Cut | 26mm |
| Standards Met | COROMANT |
| Weight | 125g |
| Shank Type | Cylindrical |
| Rotational Speed Maximum | 72600 1/min |
| Coating Process Type | PVD |
| Coolant Entry Style | Without Coolant |
| Cutting Diameter | 12mm |
| Functional Length | 83mm |
| ISO Cutting Tool Material | Coated WC or Cermet |
| CoroPak | 17.2 |
| Connection Diameter | 12mm |
| Center Cutting Capability | No |
| MFR Part No. | 7419258 |
| Basic Standard Group | Coromant |
| Coating Type | TiAlN+TiSiN |
| Unit Measured | Metric |
| Material | Solid Carbide |
| Maximum Ramping Angle | 5\u00b0 |
| Maximum Cutting Depth | 26mm |
| Grade | 1710 |
| Product Type | Solid Carbide Endmill |
| Corner Radius | 2mm |
