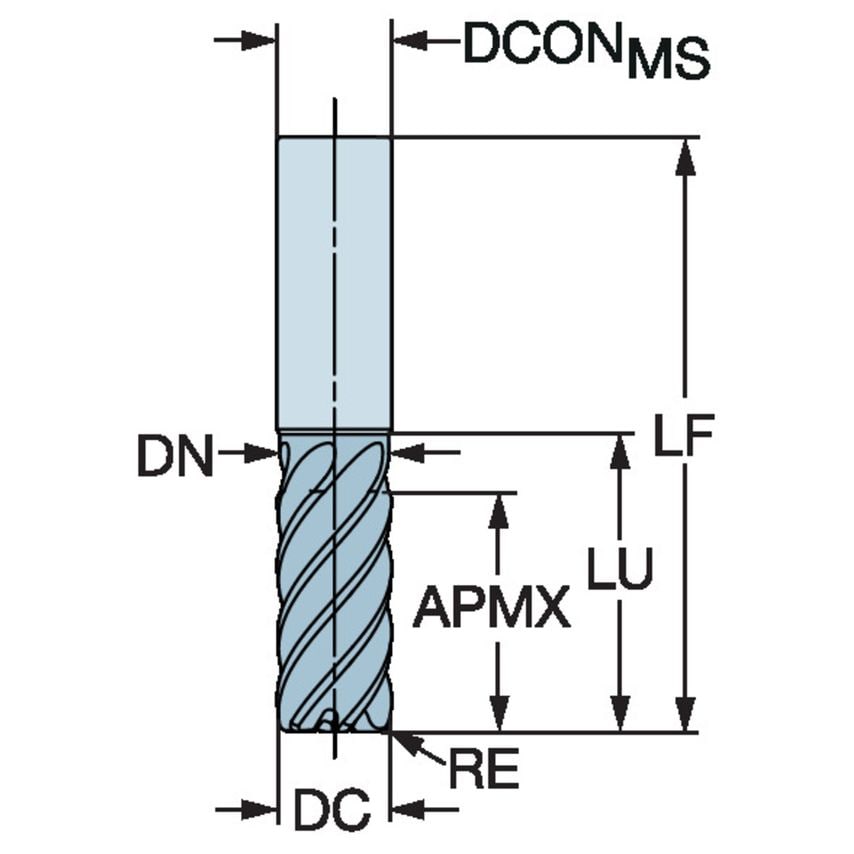

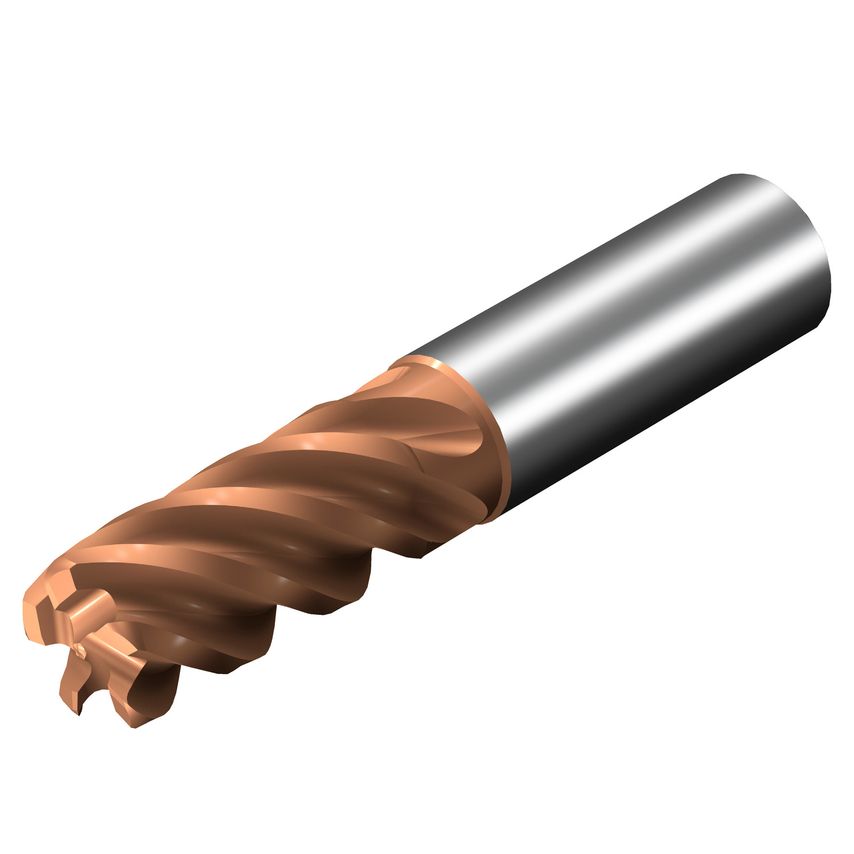

Product Range: CoroMill PluraTool Type: Thread millingSmall diameter shoulder milling with close tolerancesCoroMill Plura is a range of high quality solid carbide end mills that offer productive, efficient, and perfectly reliable milling solutions. Featuring tools for heavy roughing, finishing, and thread milling, CoroMill Plura works in various applications and materials, including difficult-to-cut materials and very hard steels up to 63 HRc.
| Standards Met | COROMANT |
| Cutting Diameter | 5mm |
| Connection Diameter | 49.25mm |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Maximum Depth of Cut | 11mm |
| Basic Standard Group | Coromant |
| Weight | 24.1g |
| Through Hole Function Property | Yes |
| Shank Type | Cylindrical |
| Product Type | Solid Carbide Endmill |
| Maximum Cutting Depth | 11mm |
| Center Cutting Capability | No |
| Rotational Speed Maximum | 80000 1/min |
| Coating Type | TiAlN+TiSiN |
| Coolant Entry Style | Without Coolant |
| CoroPak | 17.2 |
| Usable Length | 16.5mm |
| Unit Measured | Metric |
| Functional Length | 57mm |
| Coating Process Type | PVD |
| Corner Radius | 0.5mm |
| Grade | 1710 |
| MFR Part No. | 7419249 |
| Maximum Ramping Angle | 5\u00b0 |
| Material | Solid Carbide |
