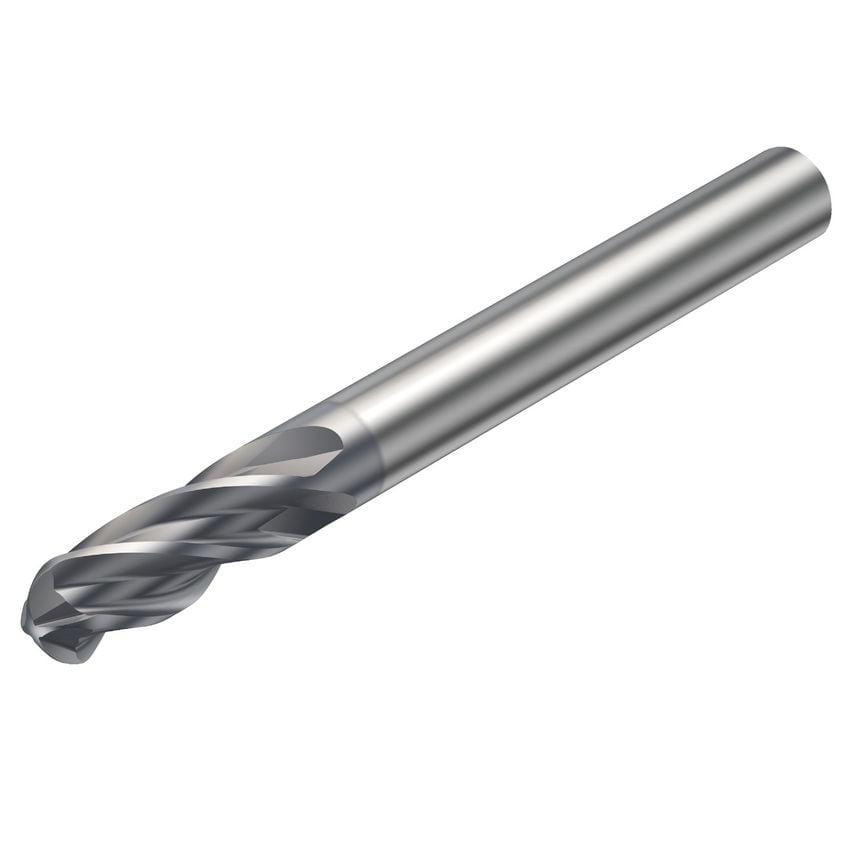

Product Range: CoroMill PluraTool Type: Thread millingSmall diameter shoulder milling with close tolerancesCoroMill Plura is a range of high quality solid carbide end mills that offer productive, efficient, and perfectly reliable milling solutions. Featuring tools for heavy roughing, finishing, and thread milling, CoroMill Plura works in various applications and materials, including difficult-to-cut materials and very hard steels up to 63 HRc.

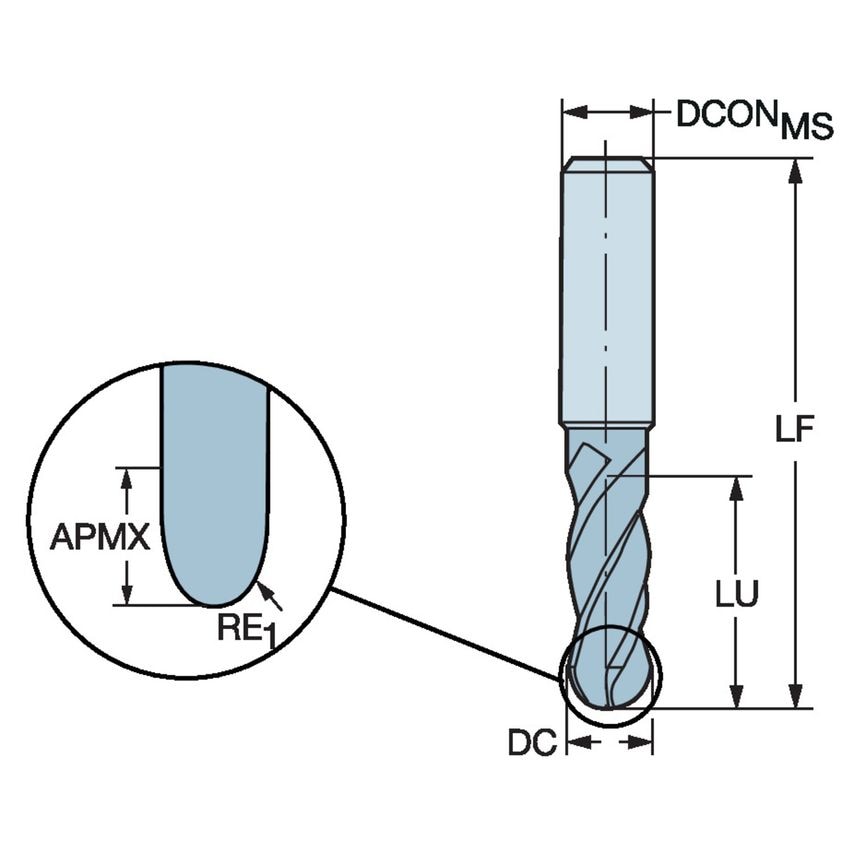

| Grade | 1630 |
| Basic Standard Group | Coromant |
| Cutting Diameter | 11mm |
| Body Half Taper Angle | 30\u00b0 |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Rotational Speed Maximum | 80000 1/min |
| CoroPak | 3.18 |
| Corner Radius | 2.38mm |
| Usable Length | 9.525mm |
| Functional Length | 25mm |
| Coating Type | AlCrN |
| Maximum Ramping Angle | 15\u00b0 |
| Coating Process Type | PVD |
| Unit Measured | Imperial |
| MFR Part No. | 6334849 |
| Through Hole Function Property | Yes |
| Connection Diameter | 10mm |
| Coolant Entry Style | Without Coolant |
