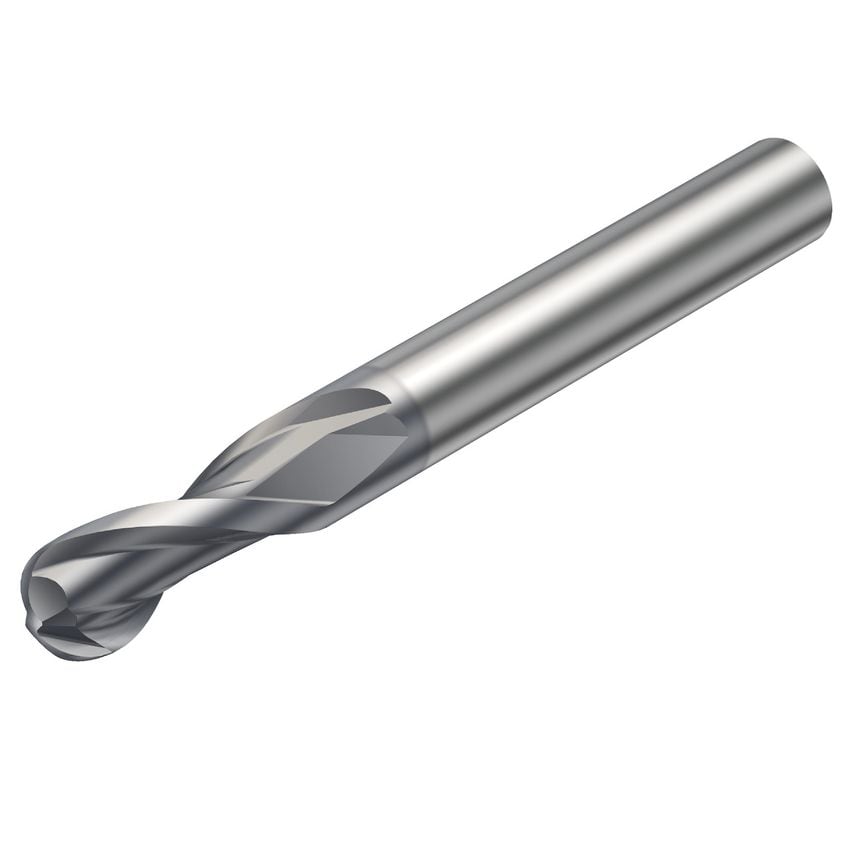

Product Range: CoroMill PluraTool Type: Thread millingSmall diameter shoulder milling with close tolerancesCoroMill Plura is a range of high quality solid carbide end mills that offer productive, efficient, and perfectly reliable milling solutions. Featuring tools for heavy roughing, finishing, and thread milling, CoroMill Plura works in various applications and materials, including difficult-to-cut materials and very hard steels up to 63 HRc.

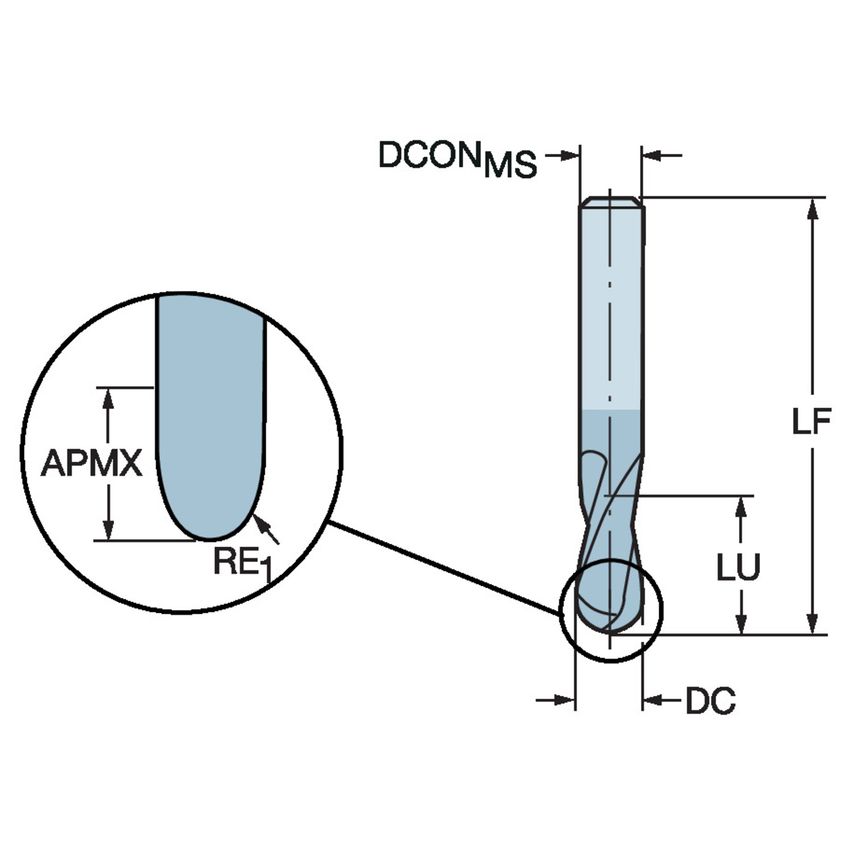

| Unit Measured | Imperial |
| MFR Part No. | 6334789 |
| Rotational Speed Maximum | 80000 1/min |
| Corner Radius | 2.38mm |
| Coating Type | TiAlN |
| Coating Process Type | PVD |
| Through Hole Function Property | Yes |
| CoroPak | 273.98 |
| Cutting Diameter | 11mm |
| Usable Length | 9.525mm |
| Basic Standard Group | Coromant |
| Body Half Taper Angle | 30\u00b0 |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Coolant Entry Style | Without Coolant |
| Connection Diameter | 10mm |
| Functional Length | 25mm |
| Grade | 1620 |
| Maximum Ramping Angle | 15\u00b0 |
