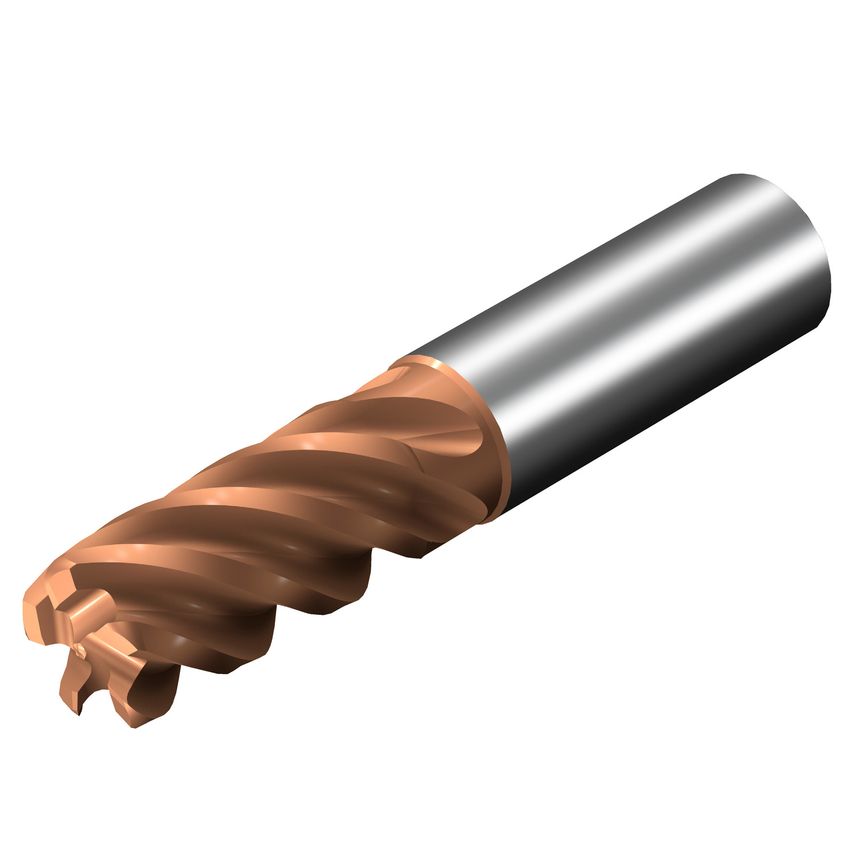

Product Range: CoroMill PluraTool Type: Thread millingSmall diameter shoulder milling with close tolerancesCoroMill Plura is a range of high quality solid carbide end mills that offer productive, efficient, and perfectly reliable milling solutions. Featuring tools for heavy roughing, finishing, and thread milling, CoroMill Plura works in various applications and materials, including difficult-to-cut materials and very hard steels up to 63 HRc.
| Coating Process Type | PVD |
| Coolant Entry Style | Without Coolant |
| Grade | 1710 |
| MFR Part No. | 7419250 |
| CoroPak | 17.2 |
| Rotational Speed Maximum | 80000 1/min |
| Shank Type | Cylindrical |
| Coating Type | TiAlN+TiSiN |
| Unit Measured | Metric |
| Connection Diameter | 6mm |
| Corner Radius | 0.5mm |
| Through Hole Function Property | Yes |
| Weight | 24g |
| Cutting Diameter | 6mm |
| Standards Met | COROMANT |
| Maximum Cutting Depth | 13mm |
| Center Cutting Capability | No |
| Usable Length | 20mm |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Functional Length | 57mm |
| Maximum Depth of Cut | 13mm |
| Product Type | Solid Carbide Endmill |
| Material | Solid Carbide |
| Maximum Ramping Angle | 5\u00b0 |
| Basic Standard Group | Coromant |
